Description

Price

1

Nut, Nylok

7541925

$1.49

2

Regulator, 14.3v

4010301

Unavailable

3

Screw

7512031

$2.23

4

Housing, Socket

4020133

Unavailable

5

Housing

4020057

$3.51

6

Harness, Wire, Main

2460799

$404.99

7

Housing, Circuit

4020153

$1.49

8

HOUSING

4020063

$3.19

9

Cable, Choke Control (Incl. 10,17)

7080290

$105.22

10

Kit, Choke Lever Repair (Incl. Pin) (Incl. Pin)

2201439

$24.27

11

Cable Tie

7080804

$3.22

12

Washer, Nylon

7555932

$2.39

13

Screw

7515199

$1.49

13

Screw

7515199

$1.49

14

RIVET

7621330

$1.49

15

GUIDE, RECOIL

5243049

$9.70

16

Washer, Interlock

7571610

$3.99

17

Nut, Choke

5432944

$8.79

18

Key w/Cap, Ignition NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot co

5410611

Unavailable

19

Nut, Ignition

7547035

$8.79

20

Console, Euro

5433214

$70.39

20

Console w/Reverse

5432993

Unavailable

21

Decal, Console, Ignition

7077367

Unavailable

22

Kit, Ignition Switch

2200358

$76.89

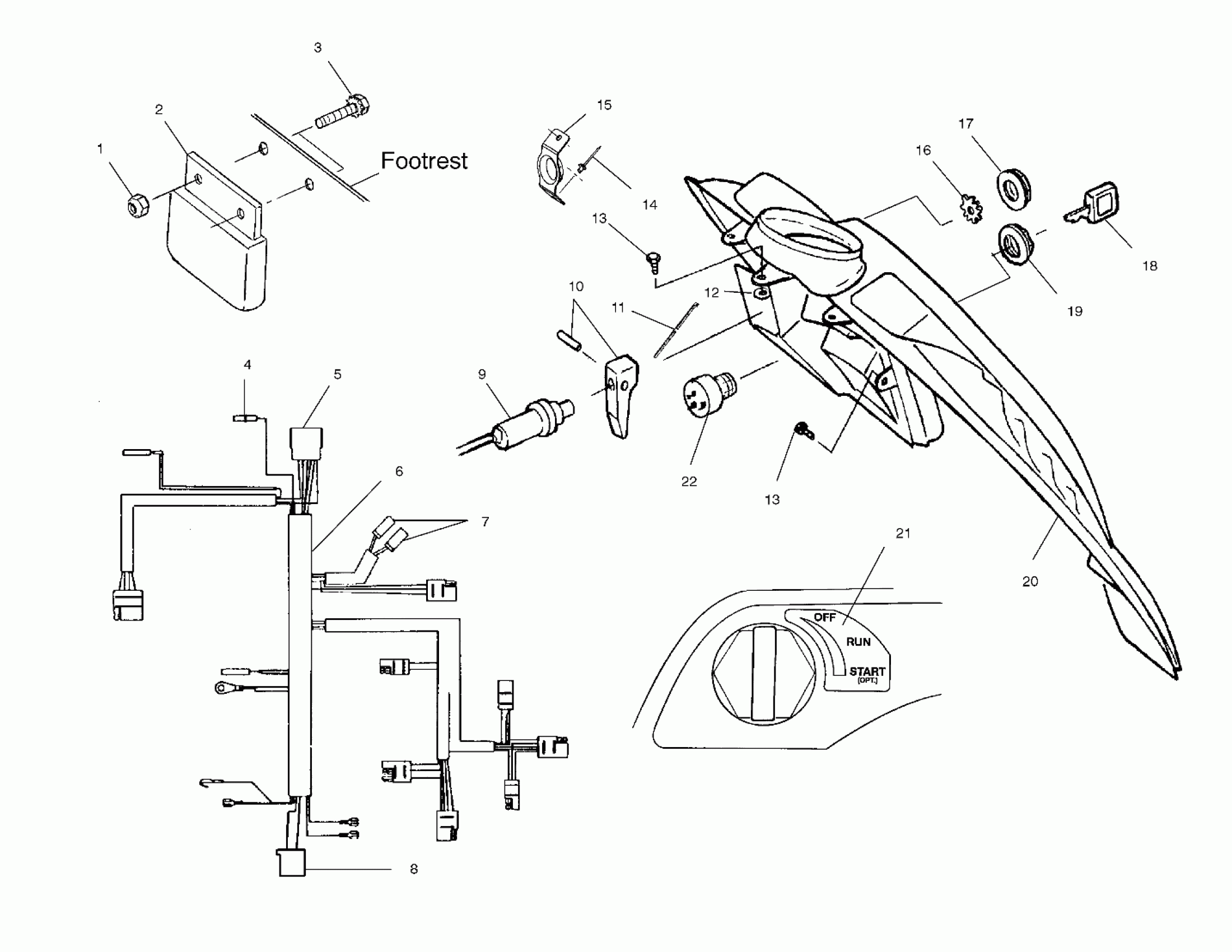

Polaris SPORT TOURING - S02SU5BS CONSOLE - S02SU5BS/S02SD5BE (4968706870A010) Diagram

Nut, Nylok

Regulator, 14.3v

Screw

Housing, Socket

Housing

Harness, Wire, Main

Housing, Circuit

HOUSING

Cable, Choke Control (Incl. 10,17)

Kit, Choke Lever Repair (Incl. Pin) (Incl. Pin)

Cable Tie

Washer, Nylon

Screw

Screw

RIVET

GUIDE, RECOIL

Washer, Interlock

Nut, Choke

Key w/Cap, Ignition NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot co

Nut, Ignition

Console, Euro

Console w/Reverse

Decal, Console, Ignition

Kit, Ignition Switch
