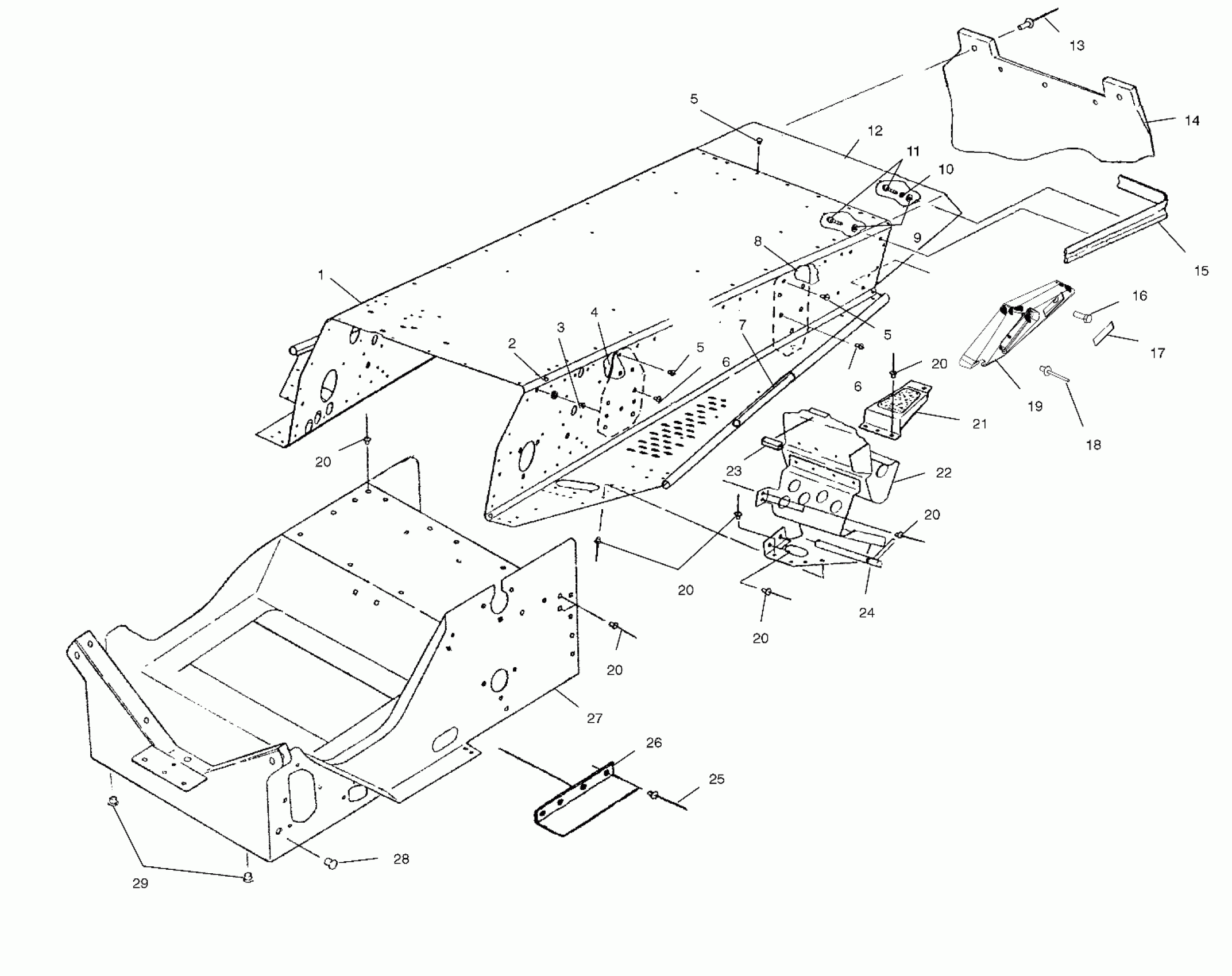

Polaris SPORT TOURING - S00SD5BS TUNNEL - S00SD5BS (4953885388a005) Diagram

#

Description
Price

1

TUNNEL,F/C EURO (Incl. 4,8,12)

1012865

Unavailable

2

SNAP-MALE(10)

7080227

Unavailable

3

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

4

PAD, FRONT, BLACK

5243942-067

Unavailable

5

RIVET ,(50)

7661836

$0.63

5

RIVET ,(50)

7661836

$0.63

5

RIVET ,(50)

7661836

$0.63

6

RIVET ,(50)

7661837

$1.49

6

RIVET ,(50)

7661837

$1.49

7

TUBE,TUNNEL SPT.

5224787

$20.48

8

BRKT,LH,R.SUSP.

1012578-067

$82.39

8

BRKT,RH,R.SUSP.

1012579-067

$62.39

9

WASHER(10)

7558301

$1.49

10

LOCK WASHER(10)

7552801

$1.59

11

BOLT(10)

7512240

$3.99

12

PANEL,TUNNEL BACK

1012580-067

Unavailable

13

POP RIVET(50)

7621418

$1.49

14

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

15

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

16

SCREW(10)

7512084

$1.49

17

REFLECTOR ASM,RED

2670133

$5.75

18

RIVET,(50)

7621515

$3.99

19

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

19

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

FOOTREST,LH REAR

5220893

Unavailable

21

FOOTREST,RH REAR

5220894

$32.15

21

PAD,LH FOOT SAFETY

5830007

$7.89

21

PAD,RH FOOT SAFETY

5830008

$4.92

22

FOOTREST ASM,RH

1012684

$154.99

22

FOOTREST ASM,LH Substituted by 1013531

1012683

Unavailable

23

EXTRUSION,CLUTCHGUARD

5521238

$6.46

24

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

24

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

25

RIVET(50)

7621452

$1.49

26

GUARD,ADAPTER GUIDE

5222857

$12.94

27

BULKHEAD,BLK

1012689-067

Unavailable

28

PLUG, HOLE(10)

7080416

$5.65

29

PLUG-HOLE

7080398

$4.84
