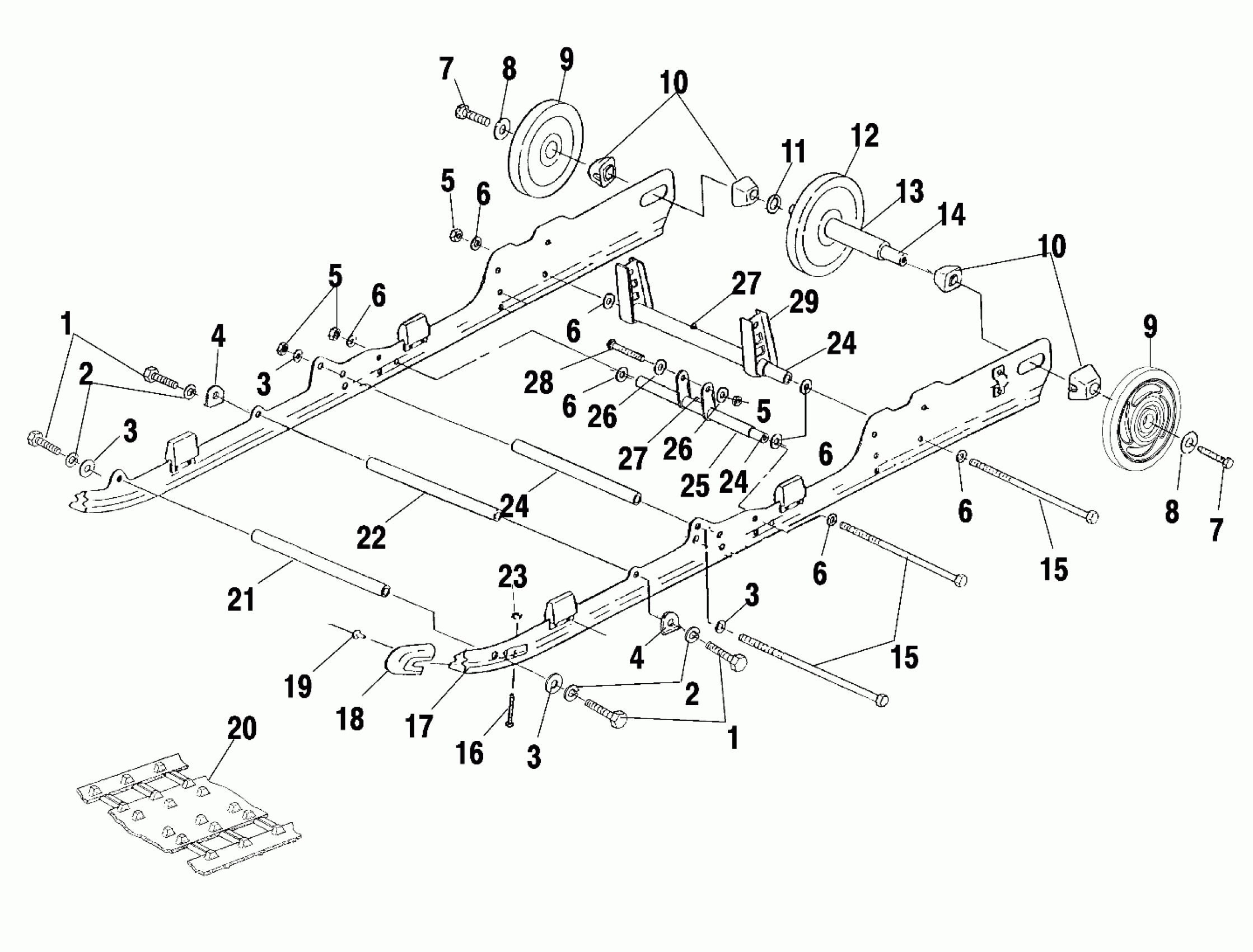

Polaris SPORT TOURING - S00SD5BS SUSPENSION - S00SD5BS (4953885388b009) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

9

WHEEL,IDLER,SCRL,C.RED

1594083-256

Unavailable

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

BUSHING(10)

7555918

$1.59

12

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

13

SPACER-IDLER, LONG

5333285

$11.99

14

SHAFT,IDLER

5020744

$59.99

15

Screw

7517353

Unavailable

15

Screw

7517353

Unavailable

16

Screw (See Footnote) (See Rail Mounting - Suspension Pg. B10, Ref. 24)

-------

Unavailable

17

SLIDER,WHI.,(2)

5521452

$40.46

18

Cover, Rail Tip (See Footnote) (See Rail Mounting - Suspension Pg. B10, Ref. 25)

-------

Unavailable

19

Rivet (See Footnote) (See Rail Mounting - Suspension Pg. B10, Ref. 26)

-------

Unavailable

20

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

20

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

20

TRACK,136"X1" LIGHTNING

5411797

Unavailable

21

SHAFT,PIVOT ARM

5020723

$29.99

22

SHAFT,PIVOT ARM

5020724

$29.99

23

Nut (See Footnote) (See Rail Mounting - Suspension Pg. B10, Ref. 27)

-------

Unavailable

24

SHAFT

5333404

$24.27

24

SHAFT

5333404

$24.27

24

SHAFT

5333404

$24.27

25

ARM,SHOCK PIVOT

1541001-067

$43.65

26

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

27

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

BOLT(10)

7515472

$2.39

29

ARM,REAR PIVOT

1541241-067

$40.79
