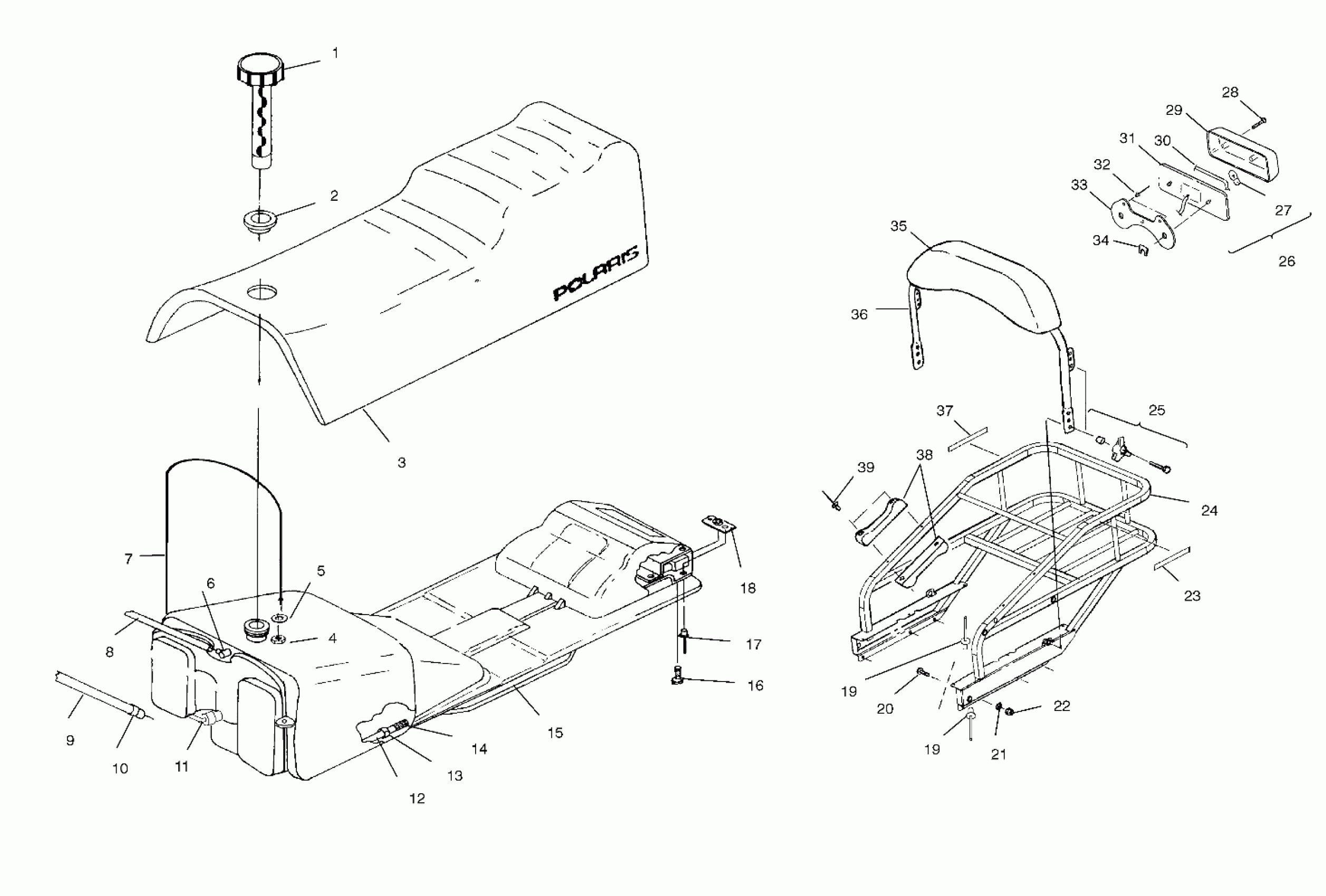

Polaris SPORT TOURING - S00SD5BS SEAT and GAS TANK - S00SD5BS (4953885388a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

COVER,SEAT ASM.

2682505

Unavailable

3

CUSHION,SEAT ASM. (See Footnote) (Incl. 2,3,5,6,7,8,11,13,14,15,17)

2682504

Unavailable

4

NUT(10)

7541925

$1.49

5

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

6

FITTING,90 DEG,1/8,(10)

7052095

$4.79

7

CABLE,TANK,RETENTION

7080559

Unavailable

8

FUELLINE,3MMX7MM

8450061-600

Unavailable

9

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

12

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

13

RING, COMPRESSION(10)

7080402

$1.60

14

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

15

HARNESS-TAILLIGHT

2460808

$18.23

16

SCREW(10)

7512242

$2.39

17

RIVET(50)

7621301

$3.99

18

NUT,RETAINER-WELD.(10)

7542147

$17.59

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

BOLT(10) Substituted by 7512325

7515363

Unavailable

21

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

DECAL,CARRIER,(ENG.) [No Longer Available]

7072225

Unavailable

24

WELD-RACK,W/GRAB-HANDLE,BLK

1012964-067

$263.99

25

KNOB ASM,BACKREST

2670130

Unavailable

26

TAILLIGHT,ASM. (Incl. 27-31)

2410180

$87.19

27

BULB,TAILLIGHT

4030043

$6.46

28

SCREW,TAIL LIGHT

7512088

$2.39

29

LENS,STOP&T/L.

4032085

$36.41

30

GASKET,T/L&STOP/L

4032086

Unavailable

31

BACKING,(STOP&TAIL)

4032087

Unavailable

32

RIVET(50)

7621472

$1.49

33

MOUNT-TAILLIGHT

5811832

Unavailable

34

CLIP, RETAINER(10)

7670093

$5.99

35

COVER, BACKREST

2681265

$257.13

36

BACKREST ASM. (Incl. 35)

2681356

$284.75

37

DECAL,CARRIER,(FR.) [No Longer Available]

7072266

Unavailable

38

GRIP-HAND W/INSERT

5433383

$19.83

39

RIVET-5MMX35MM-AL-B

7661059

$1.49
