Partiron

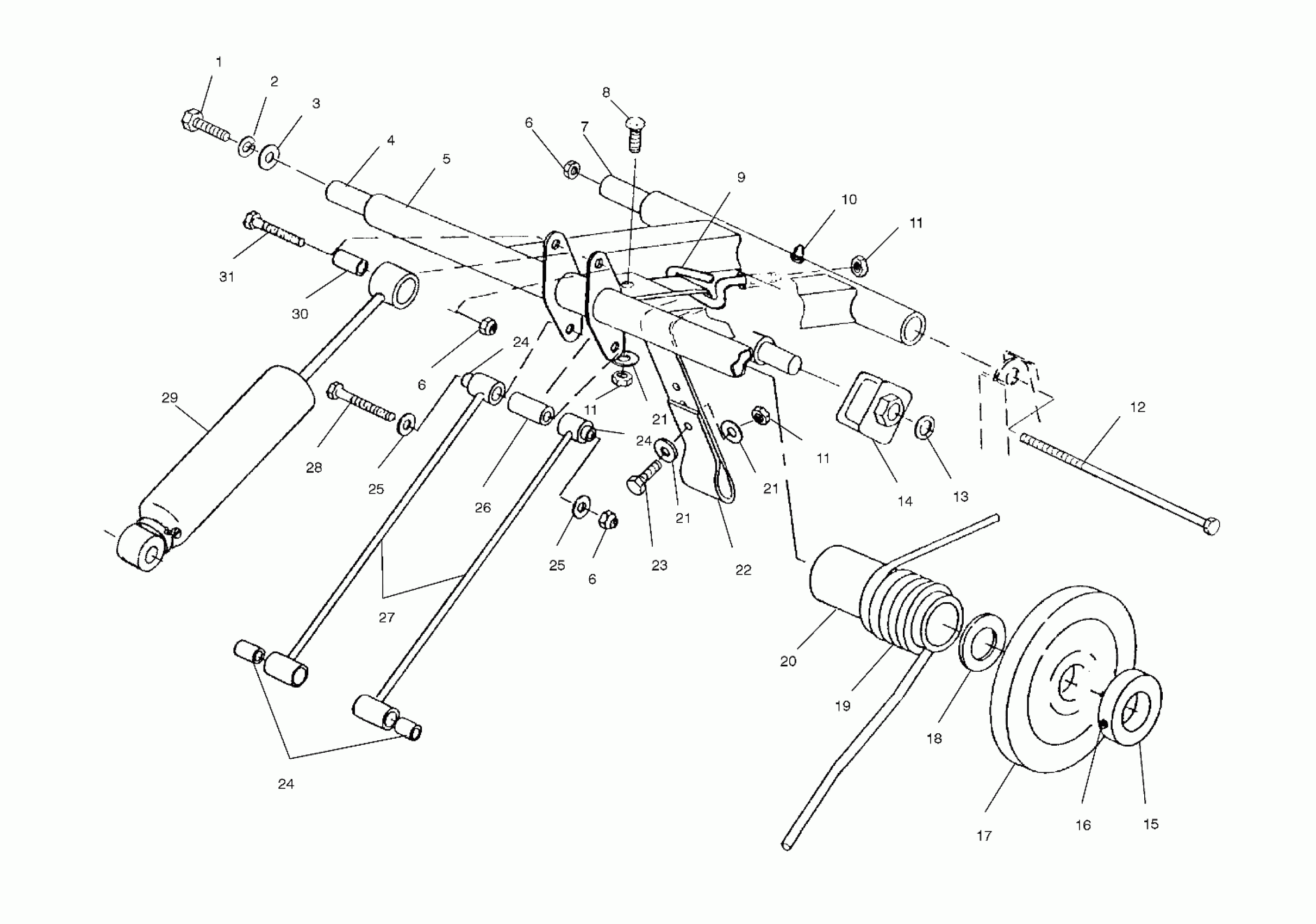

Polaris SPORT TOURING - S00SD5BS REAR TORQUE ARM - S00SD5BS (4953885388b012) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,R.TORQUE,UPPER

5131910

$89.03

5

ARM,R.TORQUE,BLK.

1541290-067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

Shaft

5333536

Unavailable

8

BOLT(10)

7512377

$4.79

9

BOLT,EYE

7010050

Unavailable

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

Screw

7517232

$19.99

13

CLIP-PUSH ON

7080394

$2.39

14

ROLLER-SPRING,ADJ,SQ,RMK,SKS

5433211

Unavailable

15

COLLAR,BRG.LOCK (US)

5131911

$16.47

15

COLLAR-BRG LOCK (Euro)

5132381

$16.47

16

SCREW-SET(10)

7512257

$3.99

17

BEARING,CHAINCASE (1 Per)

3514305

$19.99

17

RET.RING-TRUARC (1 per)

7718407

$4.79

17

Wheel, Carrier

1543023

Unavailable

18

WASHER, THRUST(10) Substituted by 7555871 (Euro needs Quanity of 6)

7555787

Unavailable

19

SPRING,LH,TORSION,BLK. (.359/77)(US)

7041629-067

Unavailable

19

SPRING,RH,TORSION,BLK. (.359/77)(US)

7041630-067

Unavailable

19

SPRING-TORSION,.375/77�,LH,BLK (.375/77)(US)

7041631-067

$140.38

19

SPRING-TORSION,.375/77�,RH,BLK (.375/77)(US)

7041632-067

$140.38

19

SPRING-TORSION,.347SQ/77�LHBLK (.347/77)(US)

7041627-067

$135.54

19

SPRING-TORSION,.347/77�,RH,BLK (.347/77)(US)

7041628-067

$135.54

19

SPRNG-TRSN,.405 SQ/77�,LH,BLK (.405/77)(Euro)

7041655-067

$94.44

19

SPRNG-TRSN,.405 SQ/77�,RH,BLK (.405/77)(Euro)

7041656-067

Unavailable

20

SLEEVE,TORS.SPRING

5433007

Unavailable

21

WASHER(10)

7555716

$1.59

21

WASHER(10)

7555716

$1.59

21

WASHER(10)

7555716

$1.59

22

STRAP,LIMITER

5411061

Unavailable

23

SCREW(10)

7512310

$2.39

24

BUSHING,PIVOT TUBE

5020561

$1.59

24

BUSHING,PIVOT TUBE

5020561

$1.59

24

BUSHING,PIVOT TUBE

5020561

$1.59

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

26

Spacer

5333559

Unavailable

27

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

28

BOLT(10)

7515472

$2.39

29

SHOCK,GAS,R.TRACK

7041438

Unavailable

30

BUSHING

5010422

$11.99

31

BOLT(10) Substituted by 7515492

7512410

Unavailable
