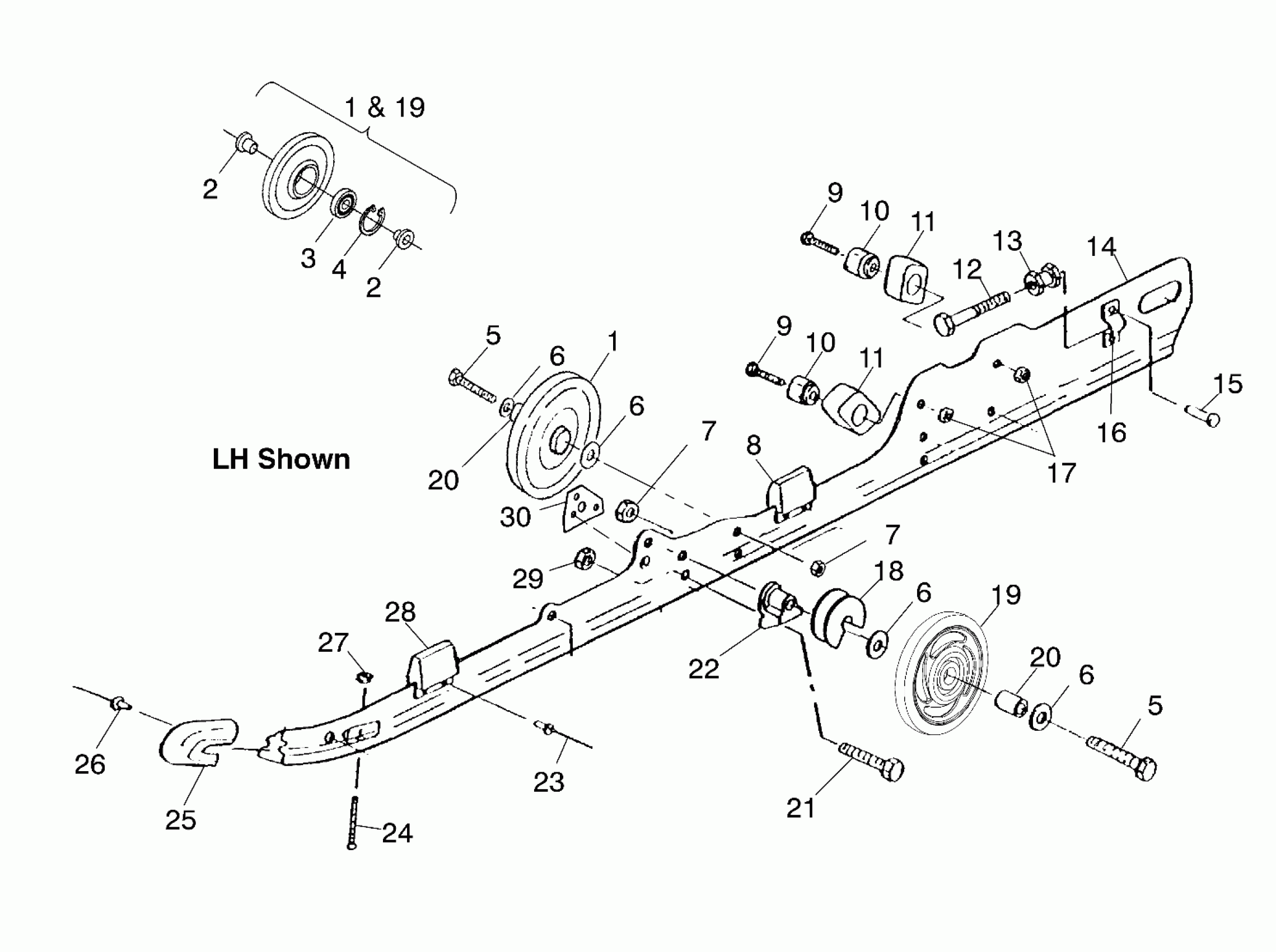

Polaris SPORT TOURING - S00SD5BS RAIL MOUNTING (SUSPENSION) - S00SD5BS (4953885388b010) Diagram

#

Description
Price

1

WHEEL, IDLER (Incl. 2,3,4)

1543018

$56.65

1

WHEEL, IDLER (Incl. 2,3,4)

1543018

$56.65

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

BOLT(10)

7512538

$6.39

5

BOLT(10)

7512538

$6.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

6

WASHER, FLAT(10)

7555852

$2.39

7

NUT, NYLOCK(10)

7542525

$4.79

7

NUT, NYLOCK(10)

7542525

$4.79

8

REINF., BUMPER

5222629

$13.75

8

BUMPER,SUSPENSION

5811097

Unavailable

9

BOLT,(10)

7515545

$5.59

9

BOLT,(10)

7515545

$5.59

10

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

10

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

11

BUMPER,F.PIVOT ARM

5410925

$12.94

11

BUMPER,F.PIVOT ARM

5410925

$12.94

12

BOLT, ADJUSTER(10)

7515455

$29.99

13

NUT,TENSIONER ADJ.

5020943

$20.22

14

RAIL ASM,LH,X-10,136 (Incl. 8,15,16,23,25,26,28)

1541155

Unavailable

14

RAIL ASM,RH,X-10,136 (Incl. 8,15,16,23,25,26,28)

1541156

$319.99

15

RIVET,(50)

7621501

$2.39

16

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

17

NUT LOCK(10)

7542411

$3.19

18

SPRING,ROLLER,SQ

5433575

Unavailable

19

WHEEL,BOGIE,SCRL,C.RED (Incl. 2,3,4)

1594082-256

Unavailable

19

WHEEL,BOGIE,SCRL,C.RED (Incl. 2,3,4)

1594082-256

Unavailable

20

SPACER, WHEEL

5333116

$7.99

20

SPACER, WHEEL

5333116

$7.99

21

BOLT(10)

7512404

$3.99

22

SPACER

5630399

$11.99

23

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

24

BOLT(10)

7515175

$3.99

25

COVER,RAIL TIP

5433005

Unavailable

26

RIVET(50)

7621435

$1.49

27

NUT-LOCK(10)

7542122

$1.49

28

REINF., BUMPER

5222629

$13.75

28

BUMPER, RAIL

5810554

$7.27

29

NUT-LOCK(10)

7542439

$1.49

30

PLATE,RAILSUPPORT,136"

5211843

Unavailable
