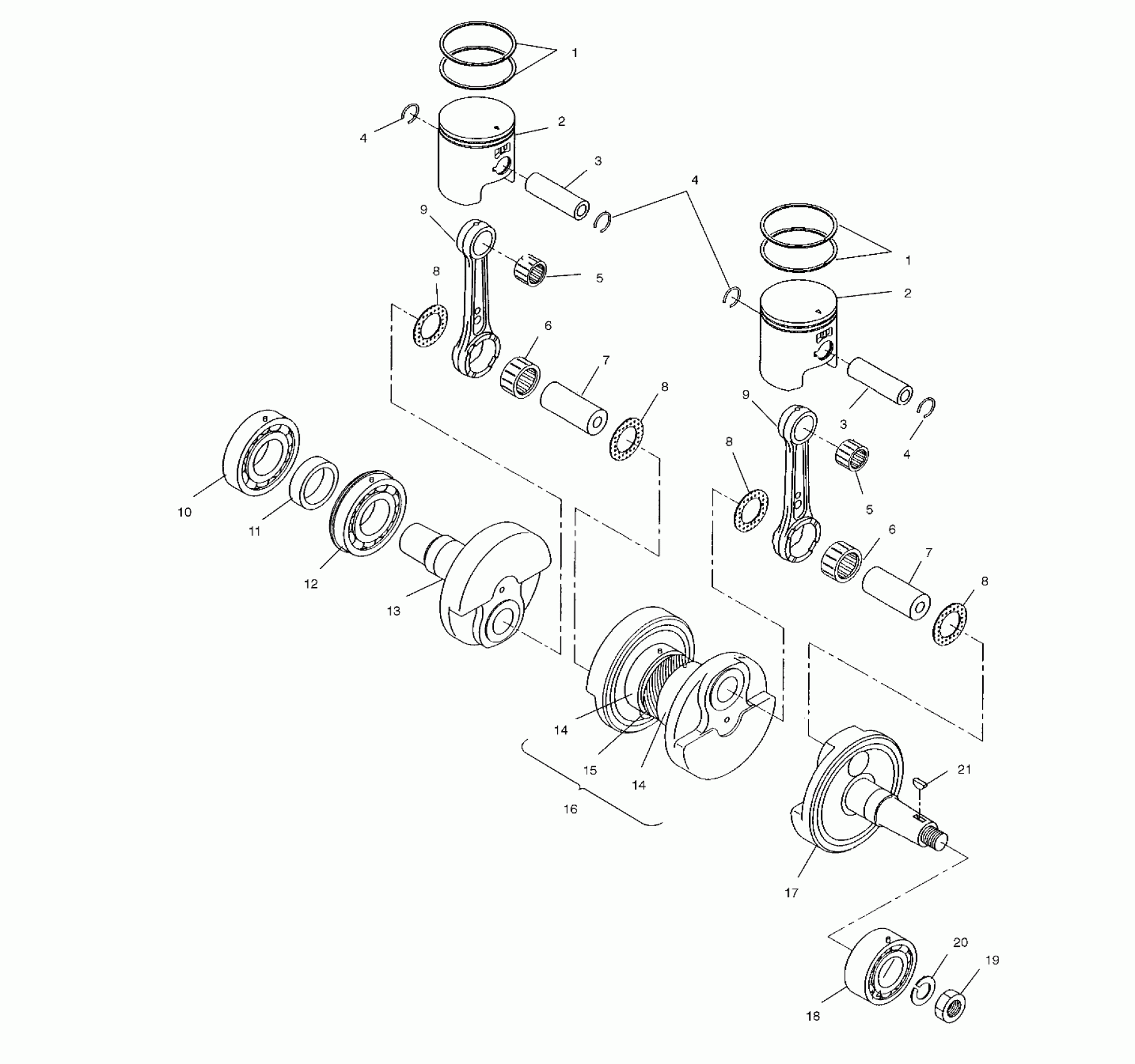

Polaris SPORT TOURING - S00SD5BS PISTON and CRANKSHAFT - S00SD5BS (4953885388c007) Diagram

#

Description
Price

1

RING,PISTON,STD. Substituted by 3086988 (Standard)

3085708

Unavailable

1

RING,PISTON,(0.25MM.O/S) Substituted by 3086989 (0.25mm/.010"O/S)

3085709

Unavailable

1

RING,PISTON,(0.50MM.O/S) Substituted by 3086990 (0.50mm/.020"O/S)

3085710

$33.32

1

RING,PISTON,STD. Substituted by 3086988 (Standard)

3085708

Unavailable

1

RING,PISTON,(0.25MM.O/S) Substituted by 3086989 (0.25mm/.010"O/S)

3085709

Unavailable

1

RING,PISTON,(0.50MM.O/S) Substituted by 3086990 (0.50mm/.020"O/S)

3085710

$33.32

2

PISTON SET (STD) Substituted by 3087024 (Standard)

3085937

Unavailable

2

PISTON SET (0.25 0/S) Substituted by 3087025 (0.25m/.010"O/S)

3085939

$142.84

2

PISTON SET (0.50 0/S) Substituted by 3087026 (0.50m/.020"O/S)

3085941

$152.37

2

PISTON SET (STD) Substituted by 3087024 (Standard)

3085937

Unavailable

2

PISTON SET (0.25 0/S) Substituted by 3087025 (0.25m/.010"O/S)

3085939

$142.84

2

PISTON SET (0.50 0/S) Substituted by 3087026 (0.50m/.020"O/S)

3085941

$152.37

3

Pin, Piston

3083838

$27.99

3

Pin, Piston

3083838

$27.99

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

4

CLIP,(10)

3084167

$6.39

5

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

5

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING-END,LARGE

3086390

$1,634.99

6

BEARING-END,LARGE

3086390

$1,634.99

7

Pin, Crank, 2

3083456

Unavailable

7

Pin, Crank, 2

3083456

Unavailable

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

8

SPACER(CRANKPIN)

3083277

$15.99

9

ROD, CONNECTING

3240083

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

10

BEARING,BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING,BALL

3085753

$64.99

13

CRANKSHAFT #3,PTO SIDE (PTO Side)

3085675

Unavailable

14

BEARING, BALL

3084586

$44.99

14

BEARING, BALL

3084586

$44.99

15

DRIVEGEAR,OILPUMP

3083780

$107.99

16

CRANKSHAFT #2 (Incl. 7,14,15)

3085674

$694.99

17

CRANKSHAFT #1,MAG SIDE (MAG Side)

3085673

$404.99

17

CRANKSHAFT ASM. Substituted by 3086389 (Incl. 8-9,10,14-16)

3085672

$1,684.99

18

BEARING, BALL

3084681

Unavailable

19

NUT

3083093

$19.99

20

WASHER-SPRING(10)

3083094

$3.17

21

KEY Substituted by 3081543

3080130

Unavailable
