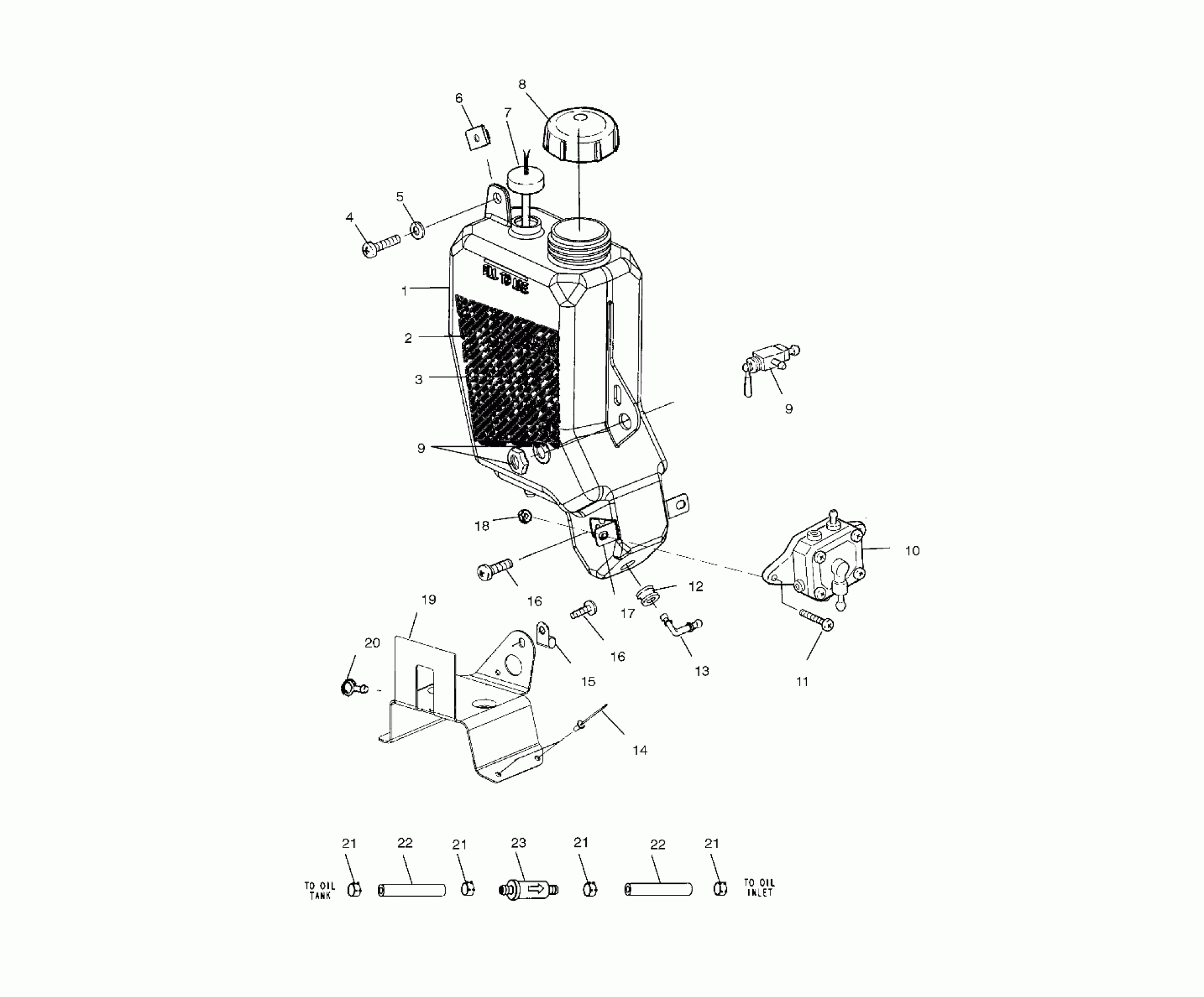

Polaris SPORT TOURING - S00SD5BS OIL TANK - S00SD5BS (4953885388c003) Diagram

#

Description
Price

1

TANK,OIL Substituted by 1253313

5433408

Unavailable

2

FOIL,OIL TANK

5811934

Unavailable

3

DECAL,FUEL SHUT-OFF

7077442

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

9

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C1, Ref. 24)

-------

Unavailable

9

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C1, Ref. 24)

-------

Unavailable

10

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C10, Ref. 2)

-------

Unavailable

11

Screw

7517264

$3.99

12

GROMMET-TANK FITTING(10)

7052028

$6.39

13

FTTNG,90 D.PRESS-ON

7052208

$6.39

14

RIVET-3/16-.090-.290

7661637

$1.49

15

CLAMP-CABLE

7080367

$2.39

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

17

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

18

NUT-LOCK(10)

7542122

$1.49

19

BRKT,OIL/COOLANT TANK,ALUM

5243636

Unavailable

20

CLIP, PLASTIC(10)

4020139

$4.79

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
