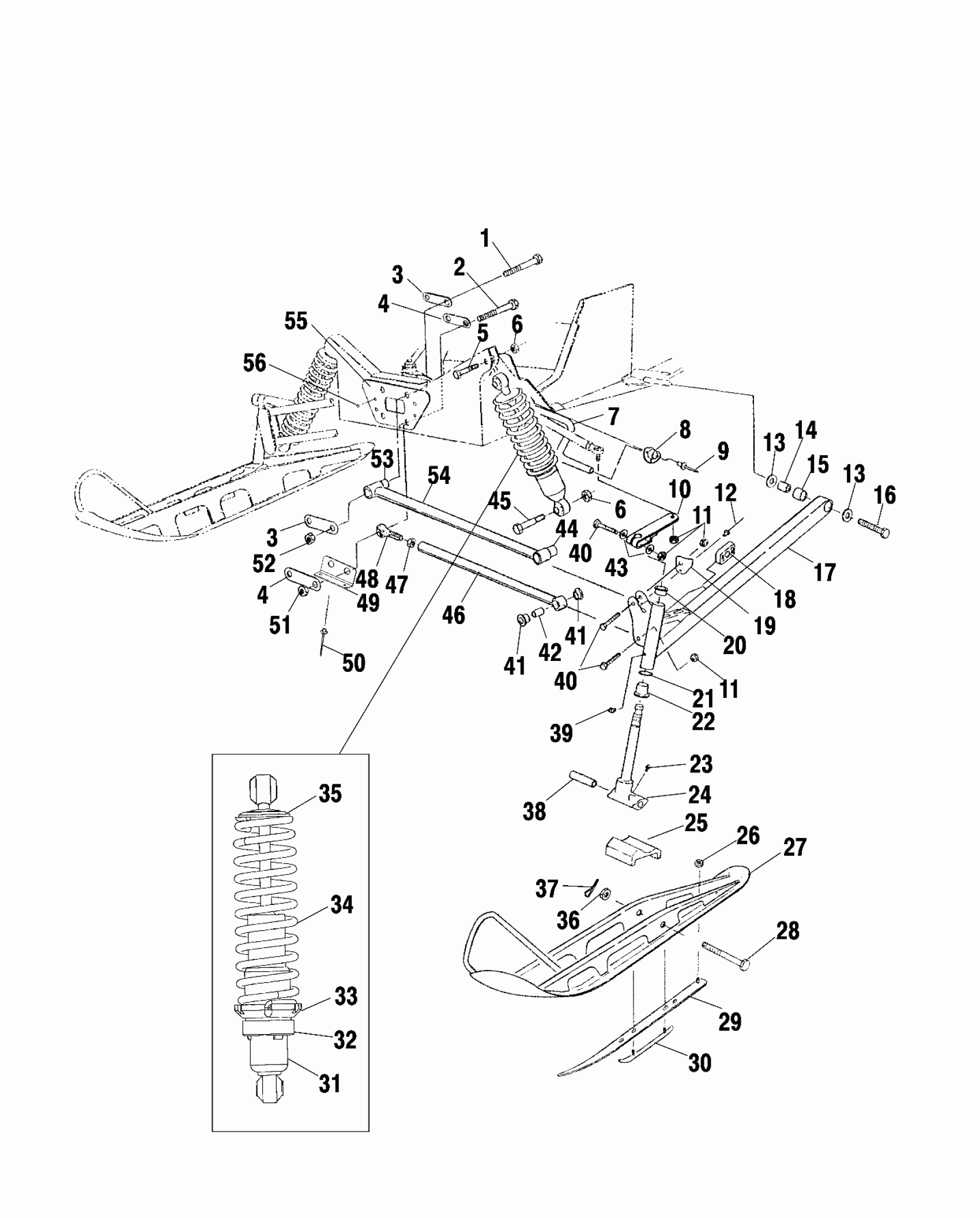

Polaris SPORT TOURING - S00SD5BS FRONT SUSPENSION and SKI - S00SD5BS (4953885388b001) Diagram

#

Description
Price

1

BOLT(10)

7512582

$8.79

2

BOLT(10)

7512684

Unavailable

3

STRAP,SPACER TOP

5211344

$7.27

3

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER BOTTOM

5211345

$12.99

5

BOLT(10)

7515415

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BAR,SWAY,9/16,X-10,BLK

5224743-067

$70.39

8

BUSHING,SWAY BAR

5432412

$15.99

9

RIVET,(50)

7621477

$1.19

10

ARM,STRG,BLK

5241560-067

Unavailable

11

NUT LOCK(10)

7542403

$3.99

11

NUT LOCK(10)

7542403

$3.99

12

RIVET(50) Substituted by 7661130

7661643

Unavailable

13

WASHER(10)

7555721

$1.49

13

WASHER(10)

7555721

$1.49

14

TUBE, BUSHING

5010310

$9.70

15

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

16

BOLT(10)

7512557

$7.60

17

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 14,15)

1822506

$344.99

17

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 14,15)

1822507

Unavailable

18

SLIDE,SWAYBAR,9/16

5432674

Unavailable

19

STOP,LH,STRG,BLK.

5241569-067

$7.27

19

STOP,RH,STRG,BLK.

5241570-067

$7.27

20

BUSHING-FLANGE

3573909

$2.39

21

WASHER SPECIAL(10)

7556509

$1.59

22

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

25

Stop, Rubber

5411083

$12.94

26

NUT-5/16-18 NYLOK-Y (S00SD5BS)

7542324

$1.49

27

SKI WELD (S00SD5BS)

1820430-067

Unavailable

28

BOLT(10) (S00SD5BS)

7515462

$8.79

29

PLATE, SKAG (S00SD5BS)

1011829-067

$54.99

30

SKAG, BLK. (S00SD5BS)

1820318-067

$49.99

31

SHOCK,GAS,IFS,SELECT

7041496

Unavailable

32

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

33

RING,SPRING PRELOAD ADJ.

5431734

$52.60

34

SPRING,COMPRESSION

7041551-067

$74.99

35

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

36

NUT-3/8-24 HX CA GR5-Y (S00SD5BS)

7542438

$1.59

37

PIN, COTTER(10) Substituted by 7661205 (S00SD5BS)

7661209

Unavailable

38

BUSHING,PIVOT,(10)

5010158

$19.99

39

ZERK,FITTING,THREADED(10)

7080433

$1.49

40

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

40

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

41

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

41

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

BUSHING-RADIUS ROD,(10)

5010127

$7.99

43

WSHR-.813X.406X.105-Y

7555832

$2.39

44

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

45

BOLT Substituted by 7515491

7515433

$1.59

46

ROD,RAD,LOWER,BLK

1822410-067

Unavailable

47

NUT-JAM(10)

7542711

$2.39

48

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

49

BRKT,RAD.ROD,BTM.

5242578

$44.99

50

RIVET,INTERLOCK,B(50)

7661638

$1.49

51

NUT FLEX,(10)

7542703

Unavailable

52

NUT, LOCK,(10)

7542503

$10.39

53

BUSHING,PIVOT,7/16

5411095

$15.99

54

ROD,RAD.UPPER,FIXED (Incl. 44,53)

1822435

$49.21

55

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

56

RIVET-3/16-.090-.290

7661637

$1.49
