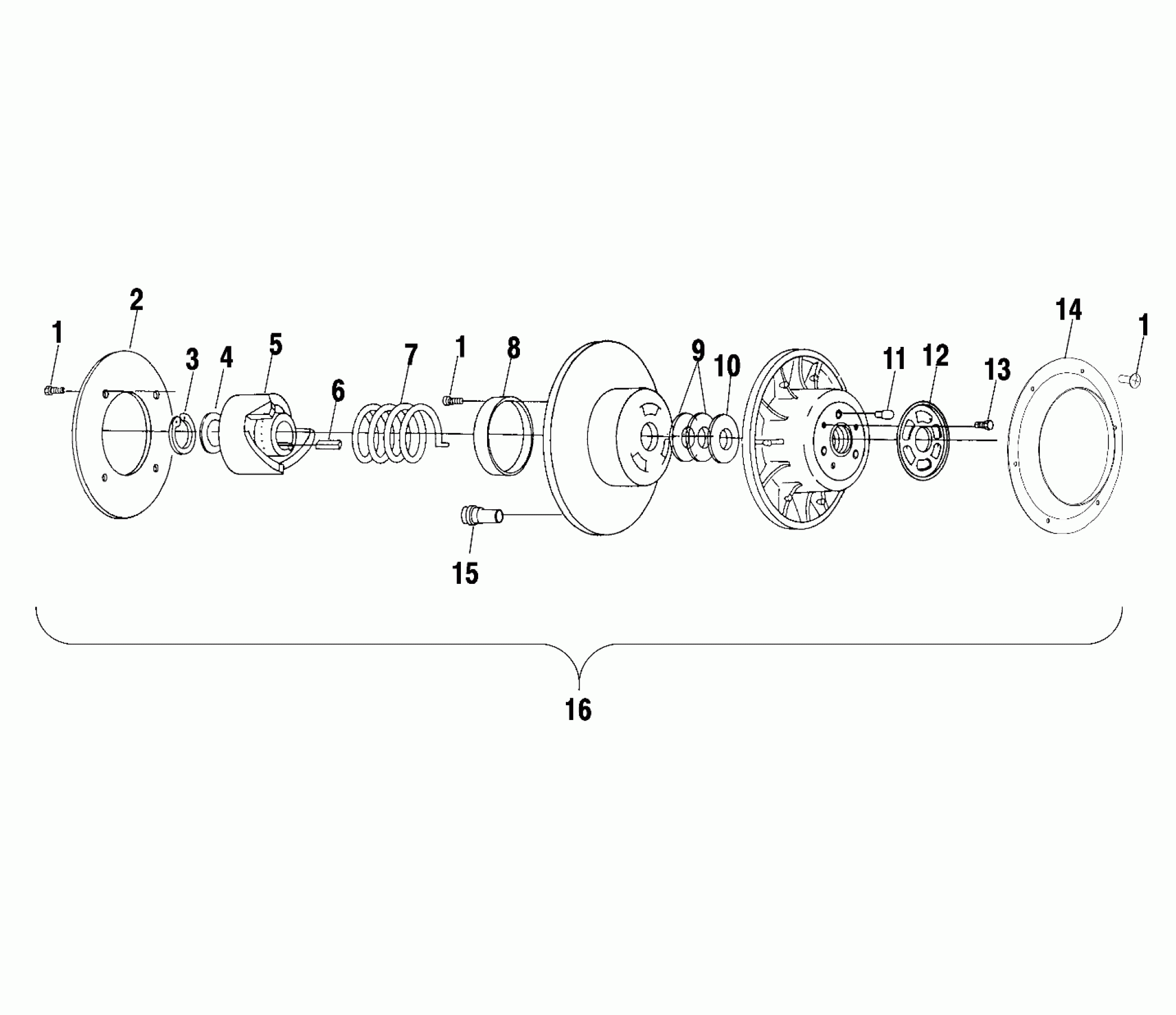

Polaris SPORT TOURING - S00SD5BS DRIVEN CLUTCH - S00SD5BS (4953885388b014) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,36 DEGREE

5130895

$199.99

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,SVR/BLUE

7041646

$69.99

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10) (.03)

7556804

Unavailable

9

WASHER(10) (.02)

7555898

Unavailable

10

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP-DRIVEN,VENTED

5243157

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46

16

CLUTCH,DRIVEN,36D,SLV/BLUE Substituted by 1321916 (Incl. 1,3,4,6,8-13,15)

1321815

Unavailable
