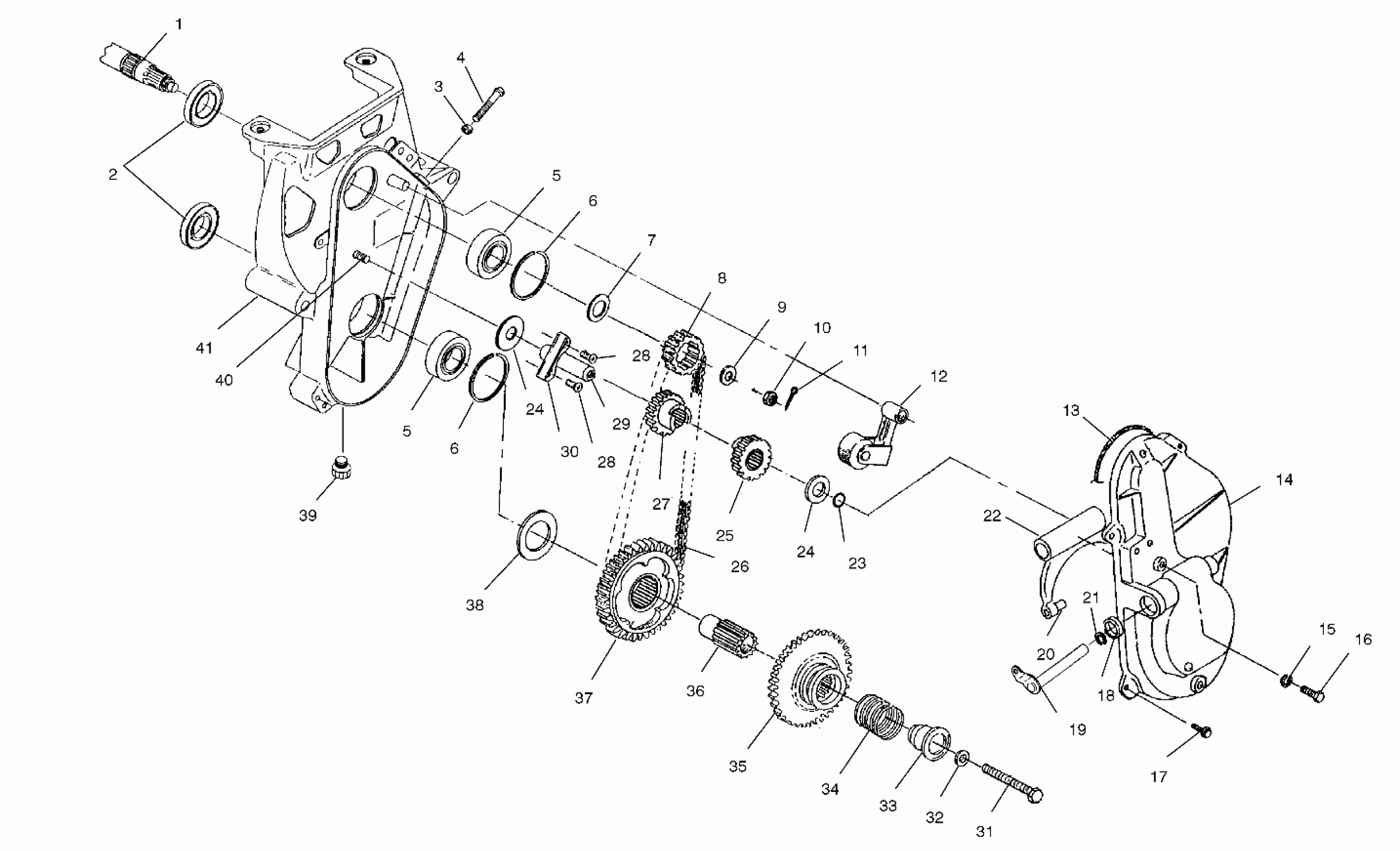

Polaris SPORT TOURING - S00SD5BS CHAINCASE - S00SD5BS (4953885388b007) Diagram

#

Description
Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B8, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

NUT(10)

7542404

$1.59

4

SCREW(10)

7515551

$6.39

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

WASHER(10)

7555917

$2.39

8

SPKT,18T,3/4W,15 SPL,HV,PM

3221094

$44.99

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

PIN COTTER(10)

7661203

$1.49

12

PIN,CHAIN TIGHTENER

7662210

Unavailable

12

BEARING

3553002

$11.99

12

WHEEL,C/C IDLER

5630123

Unavailable

12

WASHER THRUST(10)

7558702

$1.59

12

TIGHTENER,CHAINCASE

1332213

$159.99

13

GASKET,CHAINCASE,LONG

5411207

$20.22

14

CVR,CHAINCASE,REV,MACH

5131454

Unavailable

15

WASHER WROUGHT(10)

7558403

$4.79

16

SCREW(10)

7512492

$1.49

17

SCREW(10)

7512242

$2.39

18

Seal, Oil

3610029

$8.89

19

SHAFT,SHIFT,BLK

1341221-067

$35.99

20

PIN, SHIFT FORK(10)

7661826

$5.65

21

RING, RETAINER(10)

7710415

$3.99

22

KIT,SHIFT FORK/SHAFT (Incl. 18, 20)

2200363

Unavailable

22

Fork, Shift

5130805

Unavailable

23

O RING

5410589

$4.99

24

WASHER,THRUST(10)

7555877

$3.99

24

WASHER,THRUST(10)

7555877

$3.99

25

GEAR,SPUR PINION

1341075

$149.99

26

CHAIN,HYVO 68 P,3/4W

3221112

$124.99

27

GEAR,18T,PINION Substituted by 1341075

5130721

$149.99

28

SCREW(10)

7512019

$3.99

28

SCREW(10)

7512019

$3.99

29

SHAFT,PINION,W/WRENCH FLATS

5131770

Unavailable

30

BRACKET-CHAIN RETENTION,7.05

5243162

Unavailable

31

SCREW(10)

7517581

$1.59

32

LOCK WASHER(10)

7552901

$1.49

33

RETAINER,DRIVE COUPLER

5130727

Unavailable

34

SPRING-COMPRESSION

7041887

$44.99

35

GEAR ASM,REVERSE Substituted by 1341362

1341121

$559.99

36

Coupler, Drive

5130720

Unavailable

37

SPKT.ASM,40T,REV,3/4W,PM (US)

1341227

Unavailable

37

SPKT.ASM,41T,REV,3/4W,PM (Euro)

1341228

Unavailable

38

WASHER, REVERSE(10)

7555871

$5.59

39

PLUG(10)

7052115

$5.65

40

BOLT(10)

7515477

$34.99

41

CHAINCASE,VENTED

5131455

Unavailable
