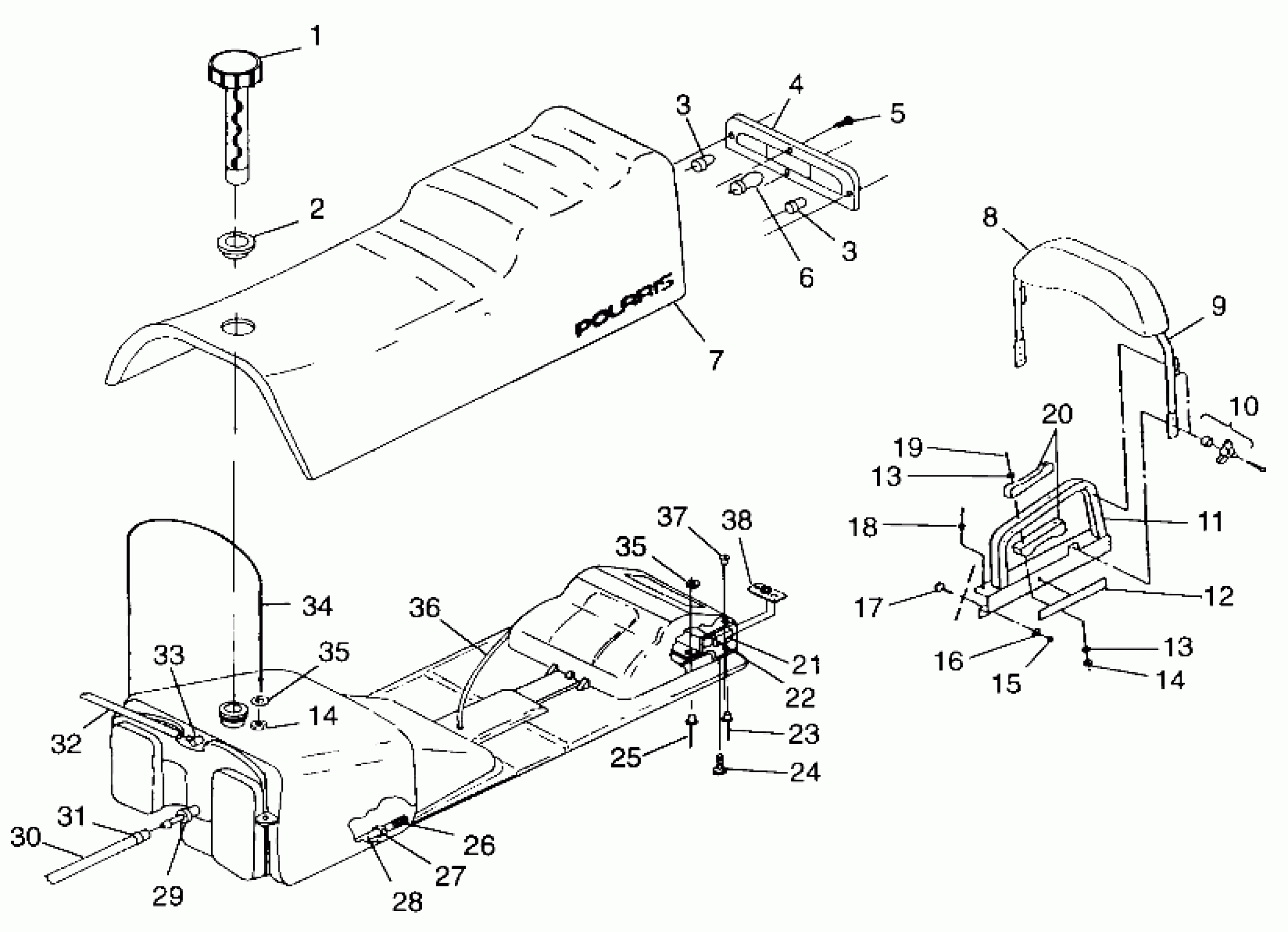

Polaris SPORT TOURING - 099ST4DS SEAT and GAS TANK - 099ST4DS (4950445044a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

BULB,TAILLIGHT(10)

4030024

$4.84

3

BULB,TAILLIGHT(10)

4030024

$4.84

4

LENS,TAILLIGHT

5430423

Unavailable

5

SCREW(10)

7511840

Unavailable

6

Bulb, Brakelight

4030045

Unavailable

7

SEAT ASM. (See Footnote) (Incl. 2-7,21-23,26,27,29,32-37)

2682398

$440.99

7

COVER ASM,SEAT

2682399

Unavailable

8

COVER, BACKREST

2681265

$257.13

9

BACKREST ASM. (Incl. 8)

2681356

$284.75

10

KNOB ASM,BACKREST

2670130

Unavailable

11

BAR,GRAB,LH,BLK.

1011729-067

Unavailable

11

BAR,GRAB,RH,BLK.

1011730-067

Unavailable

12

REFLECTOR RED

2670070

$9.91

13

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

13

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

14

NUT(10)

7541925

$1.49

14

NUT(10)

7541925

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

BOLT(10) Substituted by 7512325

7515363

Unavailable

18

RIVET-3/16-.090-.290

7661637

$1.49

19

SCREW(10)

7510504

$6.76

20

GRIP, HAND Substituted by 5433383

5431015

$19.68

21

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

22

COVER,T/L PROTECTOR

5431436

$21.43

23

RIVET(50)

7621301

$3.99

24

SCREW(10)

7512242

$2.39

25

RIVET(50)

7621464

$3.99

26

FUELPICKUP,W/STRAINER

7052037

$12.94

27

RING, COMPRESSION(10)

7080402

$1.60

28

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FITTING - OUTLET(10)

7052023

$24.99

30

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

31

HOSE CLAMP, RED

7080003

$1.49

32

FUELLINE,3MMX7MM

8450061-600

Unavailable

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79

34

CABLE,TANK,RETENTION

7080559

Unavailable

35

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

35

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

36

HARNESS,TAILLIGHT

2460398

Unavailable

37

CLIP,DART,(10)

7670097

Unavailable

38

NUT,RETAINER-WELD.(10)

7542147

$17.59
