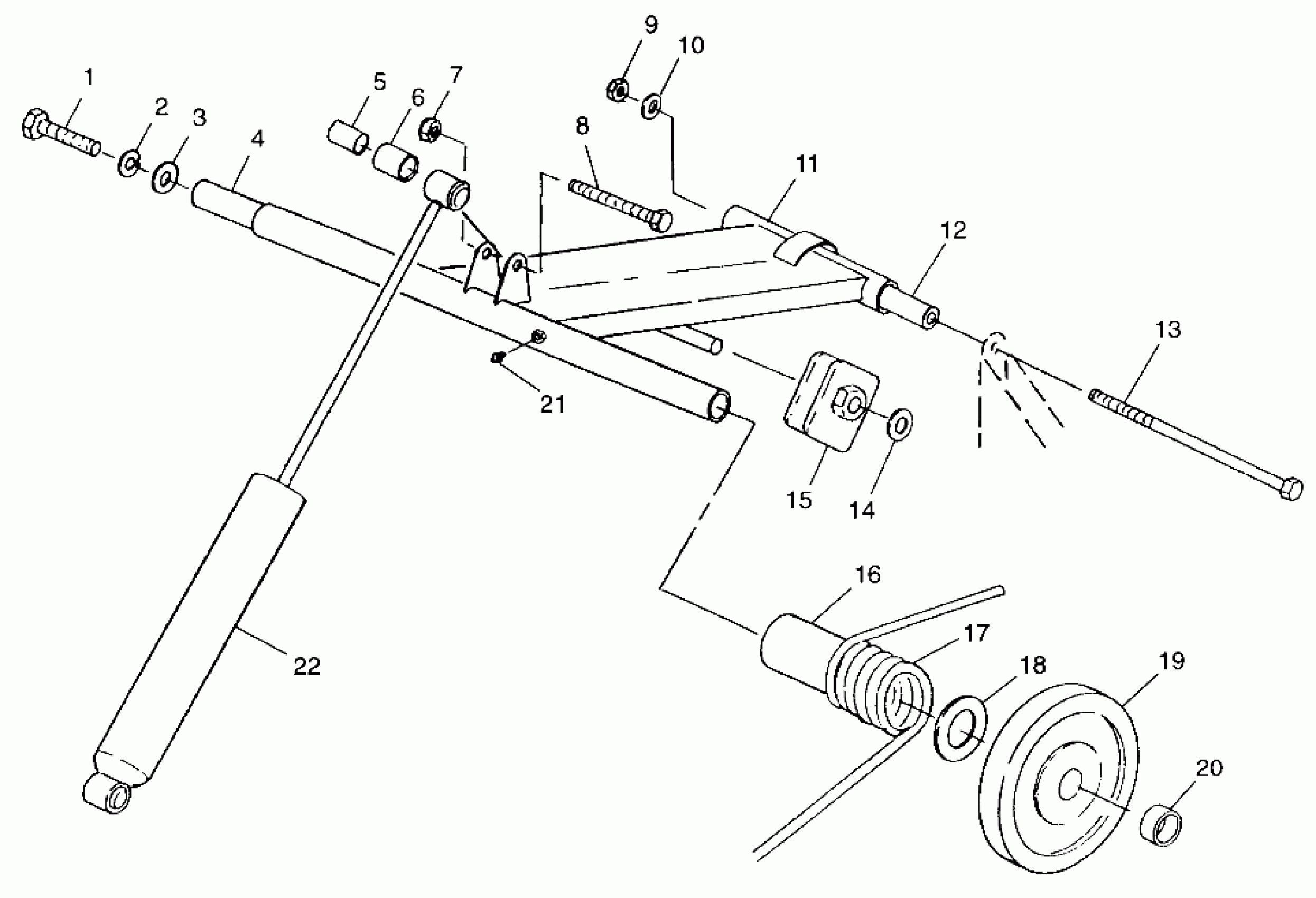

Polaris SPORT TOURING - 099ST4DS REAR TORQUE ARM - 099ST4DS (4950445044b011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

SHAFT,MTG,REAR

5131996

$56.65

5

BUSHING

5430537

$3.99

6

BUSHING,R.SHOCK

5333030

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

BOLT(10)

7512329

$3.99

9

NUT FLEX LOC,(10)

7542319

$4.39

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

ARM,RR TORQ ARM,XL,BLK

1541105-067

$186.65

12

Tube

5333483

$11.59

13

SCREW Substituted by 7517757

7517206

$3.97

14

CLIP-PUSH ON

7080394

$2.39

15

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

16

Tube, Spring

5521234

Unavailable

17

SPRING-TORS,.359 SQ/84�,LH,BLK Substituted by 7041856-067 (.359/84 Degree)(Standard)

7041763-067

Unavailable

17

SPRING-TORS,.359 SQ/84�,RH,BLK Substituted by 7041857-067 (.359/84 Degree)(Standard)

7041764-067

Unavailable

18

WASHER,THRUST(10)

7555877

$3.99

19

WHEEL,CARRIER,ASM

1543022

$69.99

20

SPACER-CARR.WHEEL

5332730

$14.99

21

ZERK,FITTING,THREADED(10)

7080433

$1.49

22

SHOCK,REAR TRACK

7041740

Unavailable
