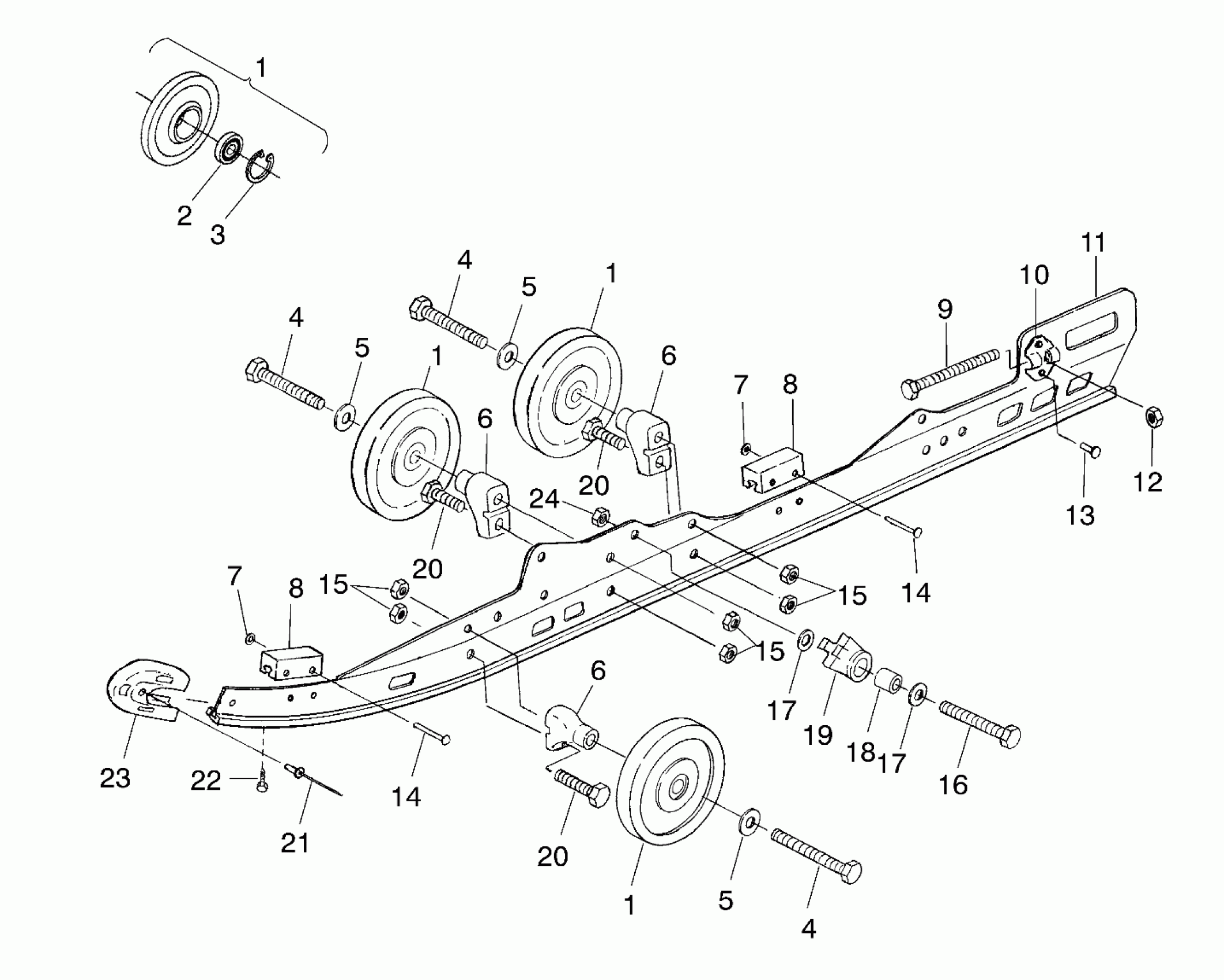

Polaris SPORT TOURING - 099ST4DS RAIL MOUNTING SUSPENSION - 099ST4DS (4950445044b009) Diagram

#

Description
Price

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

1

WHEEL ASM. (Incl. 2-3)

1594070

$54.99

2

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

3

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

BOLT(10)

7515346

$5.59

4

BOLT(10)

7515346

$5.59

4

BOLT(10)

7515346

$5.59

5

WASHER,(10)

7555959

$4.99

5

WASHER,(10)

7555959

$4.99

5

WASHER,(10)

7555959

$4.99

6

MOUNT,WHEEL,MACH

5131314

$53.59

6

MOUNT,WHEEL,MACH

5131314

$53.59

6

MOUNT,WHEEL,MACH

5131314

$53.59

7

NUT, PUSH-ON(10)

7670068

$2.39

7

NUT, PUSH-ON(10)

7670068

$2.39

8

BUMPER,JOUNCE,XL

5811282

Unavailable

8

BUMPER,JOUNCE,XL

5811282

Unavailable

9

SCREW,(10)

7517227

$7.19

10

BRKT,IDLER,ADJ

5241628

$39.99

11

RAIL ASM,LH,133"XTRA LITE (Incl. 7,8,10,11,13,14,21,23)

1541175

$319.99

11

RAIL ASM,RH,133"XTRA LITE (Incl. 7,8,10,11,13,14,21,23)

1541176

$254.99

12

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

13

RIVET(50)

7621512

$1.49

14

PIN-HOOD HINGE(10)

7661621

$3.99

14

PIN-HOOD HINGE(10)

7661621

$3.99

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

BOLT Substituted by 7515491

7515433

$1.59

17

WASHER(10)

7555893

$1.49

17

WASHER(10)

7555893

$1.49

18

Bushing

5010332

$11.99

19

BLOCK,SPRING SLIDER

5431924

$10.65

20

BOLT(10)

7515317

$4.79

20

BOLT(10)

7515317

$4.79

20

BOLT(10)

7515317

$4.79

21

RIVET(50)

7621435

$1.49

22

SCREW(10)

7515199

$1.49

23

CAP,RAILTIP,(XL)

5432364

$6.63

24

NUT-LOCK(10)

7542439

$1.49
