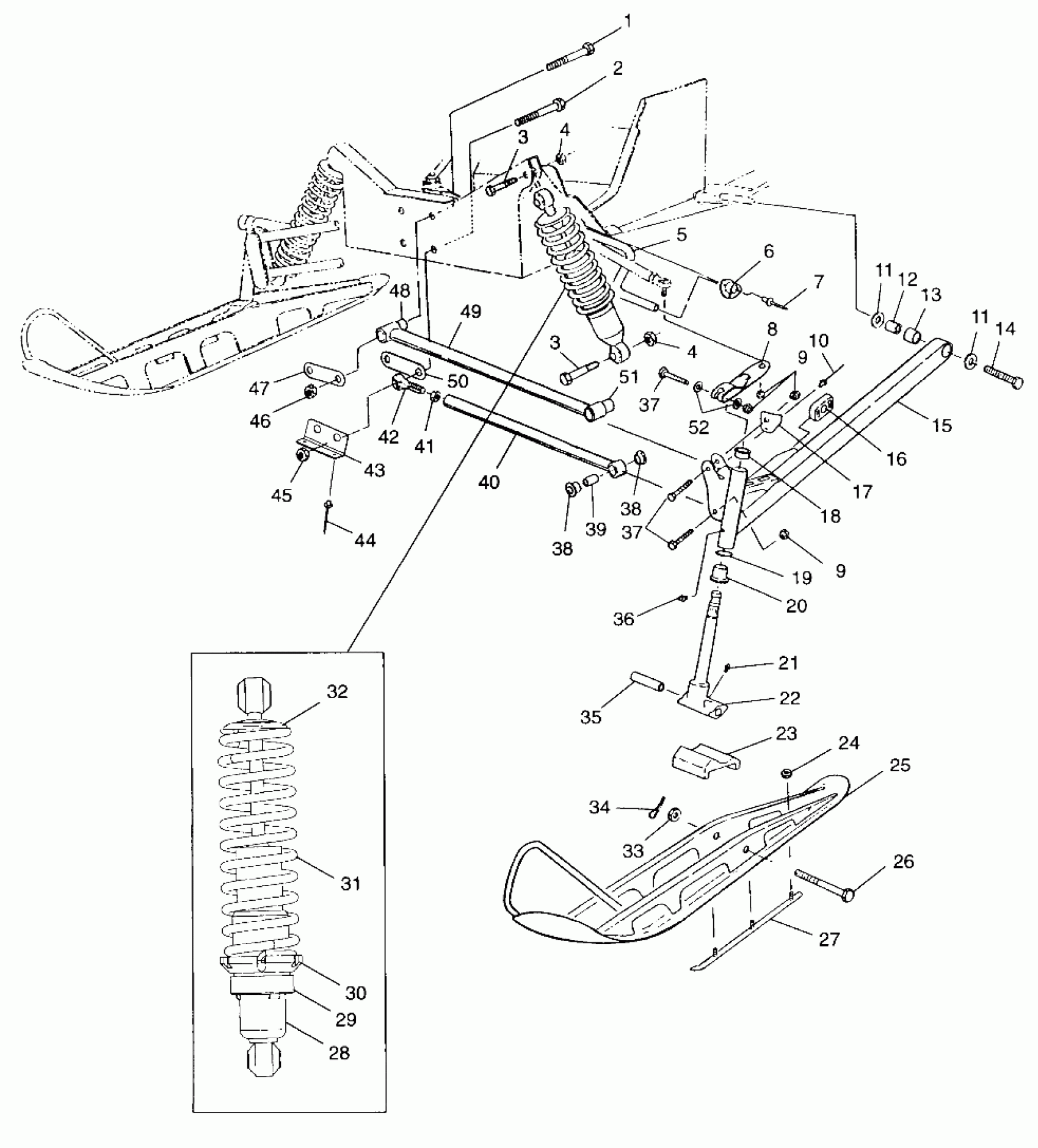

Polaris SPORT TOURING - 099ST4DS FRONT SUSPENSION and SKI - 099ST4DS (4950445044b001) Diagram

#

Description
Price

1

BOLT(10)

7512582

$8.79

2

BOLT(10)

7512684

Unavailable

3

BOLT(10)

7515415

$1.49

3

BOLT(10)

7515415

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

BAR,SWAY,9/16,X-10,BLK

5224743-067

$70.39

6

BUSHING,SWAY BAR

5432412

$15.99

7

RIVET,(50)

7621477

$1.19

8

ARM,STRG,BLK

5241560-067

Unavailable

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

RIVET(50) Substituted by 7661130

7661643

Unavailable

11

WASHER(10)

7555721

$1.49

11

WASHER(10)

7555721

$1.49

12

TUBE, BUSHING

5010310

$9.70

13

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

14

BOLT(10)

7512557

$7.60

15

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 12,13)

1822506

$344.99

15

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 12,13)

1822507

Unavailable

16

SLIDE,SWAYBAR,9/16

5432674

Unavailable

17

STOP,LH,STRG,BLK.

5241569-067

$7.27

17

STOP,RH,STRG,BLK.

5241570-067

$7.27

18

BUSHING-FLANGE

3573909

$2.39

19

WASHER SPECIAL(10)

7556509

$1.59

20

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

21

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

22

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

23

Stop, Rubber

5411083

$12.94

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49

25

SKI WELD

1820430-067

Unavailable

26

BOLT(10)

7515462

$8.79

27

SKAG,SHORT(20)

1820267

$23.99

28

SHOCK,IFS

7041749

Unavailable

29

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

30

RING,SPRING PRELOAD ADJ.

5431734

$52.60

31

SPRING,COMPRESSION

7041598-067

$26.39

32

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

33

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

34

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

37

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

40

ROD,RAD,LOWER,BLK

1822410-067

Unavailable

41

NUT-JAM(10)

7542711

$2.39

42

ROD END Substituted by 7061027

7060162

$48.56

43

BRKT,RAD.ROD,BTM.

5242578

$44.99

44

RIVET,INTERLOCK,B(50)

7661638

$1.49

45

NUT FLEX,(10)

7542703

Unavailable

46

NUT, LOCK,(10)

7542503

$10.39

47

STRAP,SPACER TOP

5211344

$7.27

48

BUSHING,PIVOT,7/16

5411095

$15.99

49

ROD,RAD.UPPER,FIXED (Incl. 48,51)

1822435

$49.21

50

STRAP,SPACER BOTTOM

5211345

$12.99

51

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

52

WSHR-.813X.406X.105-Y

7555832

$2.39
