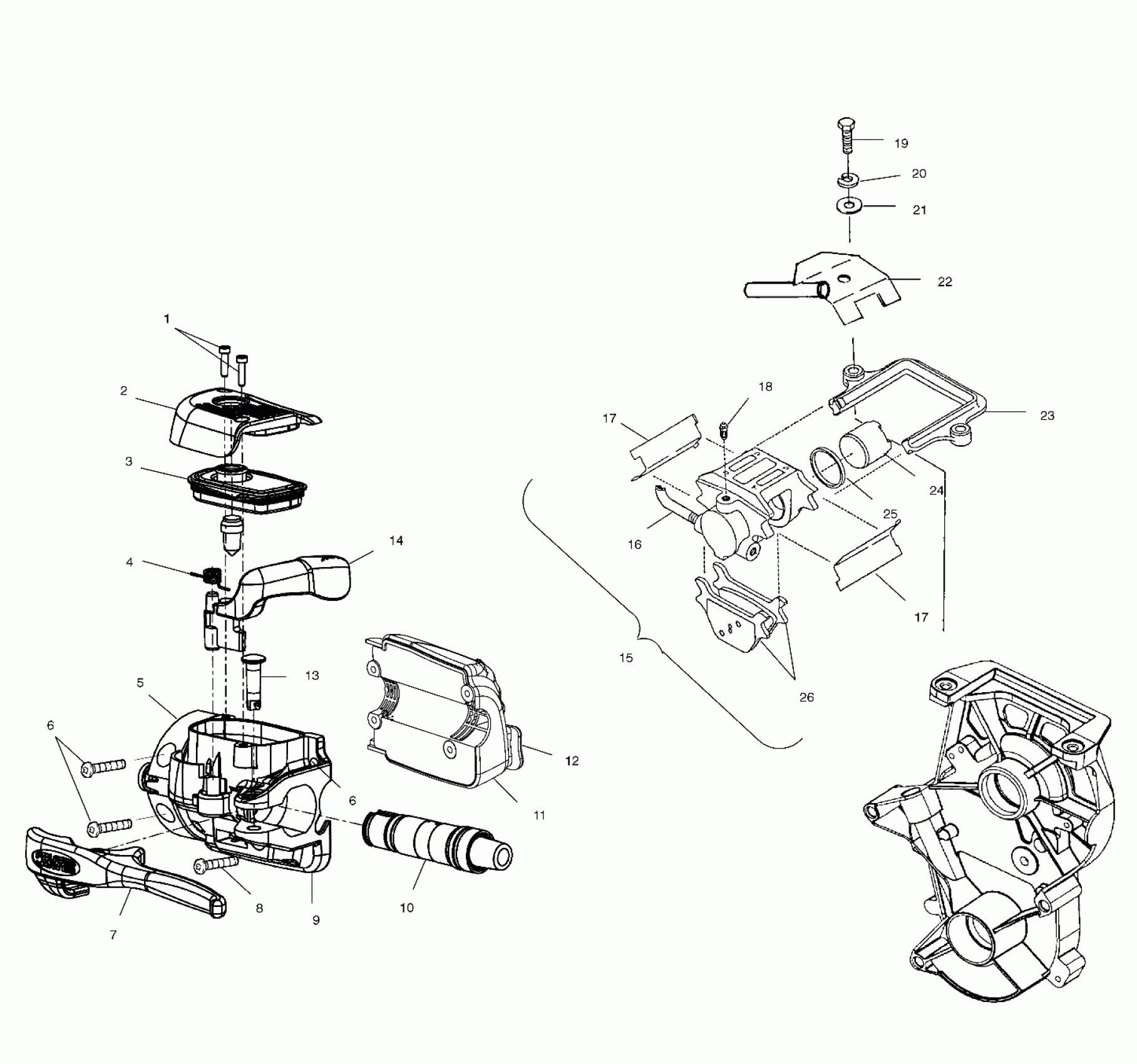

Polaris SPORT TOURING - 099ST4DS BRAKE - 099ST4DS (4950445044a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

6

SCREW(10)

7517441

$2.39

7

KIT,LEVER&PIVOT PIN,(HAYES) Substituted by 2201569

2201253

Unavailable

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

BUTTON SWITCH HI/LO

5433291

Unavailable

13

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

14

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

15

CALIPER ASM,BRAKE,TYP69,NO/SW Substituted by 1910346 (Incl. 24,25,26)

1910284

Unavailable

16

LINE,BRAKE

1930755

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT, INLET

1930735

$9.11

19

BOLT(10)

7515521

$3.99

20

WASHER(10)

7552603

$1.49

21

WASHER(10)

7555806

$1.49

22

ROPE GUIDE,CC-Z

1012849

$66.39

23

KIT,CALIPER BRKT.

1930733

Unavailable

24

KIT, PISTON SEAL (Incl. 25)

1930734

Unavailable

25

SEAL

2200466

$32.37

26

KIT,BRAKEPAD,HD,TYPE 69 Substituted by 2201430 (Incl. 17)

2201020

Unavailable

26

KIT,BRAKEPAD,TYPE 69 Substituted by 2201429 (Incl. 17)

2201019

Unavailable
