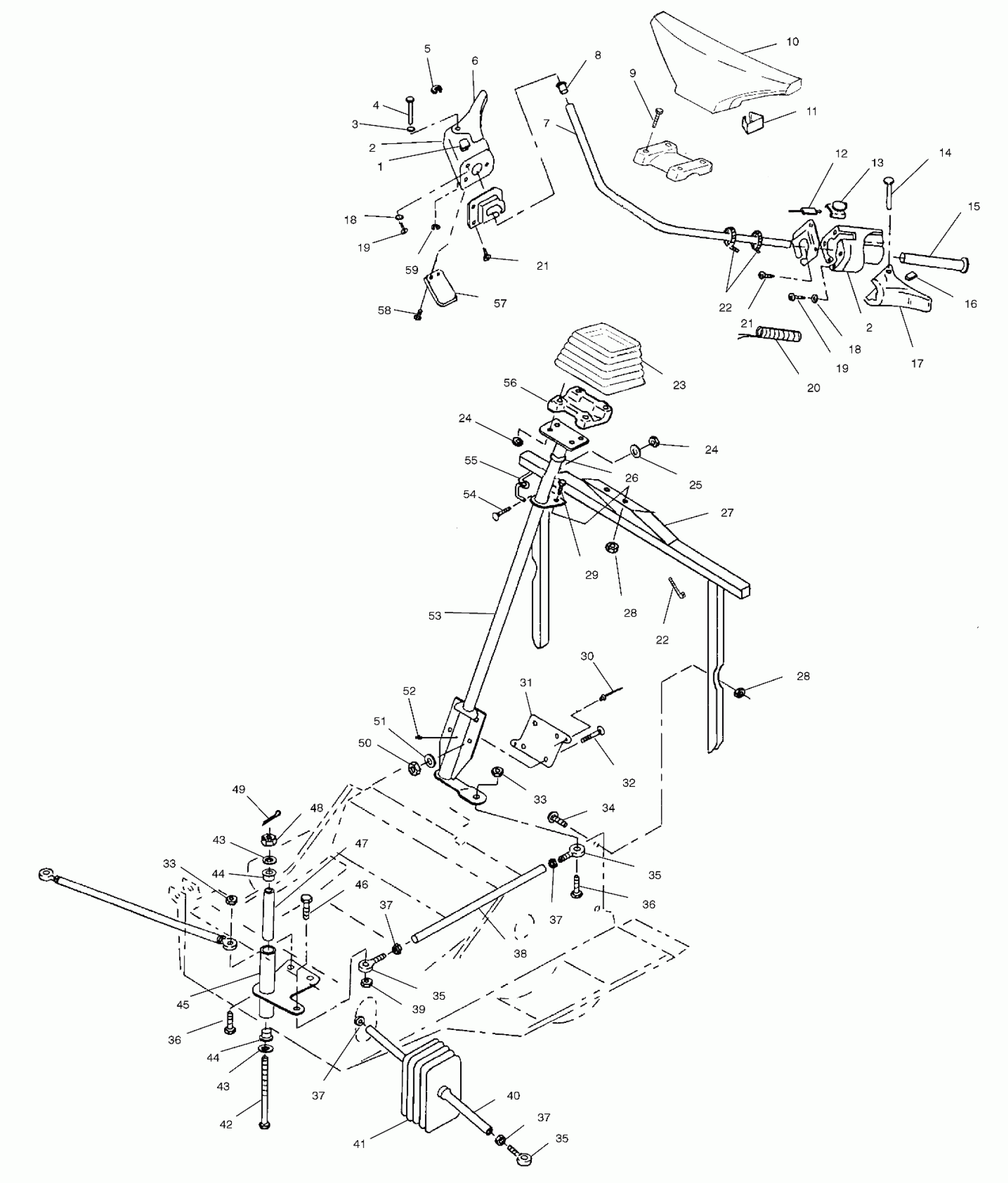

Polaris SPORT (LITE) - S00LB4AS STEERING - S00LB4AS (4953895389b001) Diagram

#

Description
Price

1

SWITCH,AUX.SHUT-OFF

4110106

$94.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

2

BLOCK,THROTTLE/BRAKE

5431592

$49.99

3

WASHER(10)

7555730

$3.99

4

PIN-RETAINING .186X1.780-AL

7661624

$12.79

5

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

6

LEVER-THROTTLE

5430652

Unavailable

6

LEVER ASM,HTR.STD 34MM

2010142

Unavailable

7

HANDLEBAR,BLACK,(LITE)

5224841-067

$43.75

8

PLUG, OVERFLOW,(10)

5431096

$2.02

9

SCREW,(10)

7517238

$4.79

10

PAD,HANDLEBAR

5432903

Unavailable

11

CLIP-HANDLEBAR PAD

7080799

Unavailable

12

Switch, Brake Light

4110105

Unavailable

13

Switch, Dimmer

4110104

Unavailable

14

RIVET,(50)

7661617

$4.03

15

GRIP,H'BAR,SNOW

5432634

$24.27

16

CLIP-SPEED.(10)

7670044

$4.79

17

LEVER-BRAKE

5430602

$36.41

18

RIVET BURR(50)

7555727

$1.49

18

RIVET BURR(50)

7555727

$1.49

19

SCREW-SEMS(10)

7511848

$3.99

19

SCREW-SEMS(10)

7511848

$3.99

20

HEATER GRIP ASM.

2460313

Unavailable

21

SCREW(10)

7512465

$3.99

21

SCREW(10)

7512465

$3.99

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

BOOT,STEERING POST

5432827

Unavailable

24

NUT-LOCK(10)

7542122

$1.49

24

NUT-LOCK(10)

7542122

$1.49

25

WASHER,WROUGHT(10)

7558302

$1.59

26

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

27

HOOP,STRG,BLK.

1011863-067

$38.71

28

NUT, LOCK(10)

7542103

$5.59

28

NUT, LOCK(10)

7542103

$5.59

29

BOLT(10) Substituted by 7512269

7515101

Unavailable

30

RIVET-3/16-.090-.290

7661637

$1.49

31

BRKT, BOLT RETAINER

5222421

$5.52

32

BOLT(10)

7512377

$4.79

33

NUT-LOCK(10)

7542439

$1.49

33

NUT-LOCK(10)

7542439

$1.49

34

BOLT(10)

7512298

$3.99

35

ROD END,LH

7060166

$48.56

35

ROD END,RH

7060167

$48.56

35

ROD END,LH

7060166

$48.56

35

ROD END,RH

7060167

$48.56

35

ROD END,LH

7060166

$48.56

35

ROD END,RH

7060167

$48.56

36

BOLT(10)

7515528

$8.79

36

BOLT(10)

7515528

$8.79

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

37

NUT HEX(10)

7542401

$2.39

37

NUT

7542424

$1.49

38

ROD-DRAGLINK,9.70 STEEL,BLK

5333816-067

$45.59

39

NUT LOCK(10)

7542411

$3.19

40

ROD-TIE,17.23,BLK

5132136-067

Unavailable

41

BOOT,TIE ROD

5411652

Unavailable

42

BOLT(10)

7512572

$13.19

43

WASHER(10)

7555817

Unavailable

43

WASHER(10)

7555817

Unavailable

44

BUSHING

5630371

$5.03

44

BUSHING

5630371

$5.03

45

STEERING CTR.BLK

1820776-067

$49.59

46

SCREW(10)

7515434

Unavailable

47

BUSHING, SPACER

5333009

$11.99

48

NUT, LOCK,(10)

7542503

$10.39

49

PIN COTTER(10)

7661203

$1.49

50

NUT FLEX-LOC(10)

7542303

$6.39

51

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

52

ZERK,FITTING,THREADED(10)

7080433

$1.49

53

STEERING POST,BLK [No Longer Available]

1820701-067

Unavailable

54

BOLT(10)

7512193

$2.39

55

RINGMOUNT,RECOIL,BLK.

5224442-067

$21.43

56

BLOCK,HANDLEBAR

5630187-067

$44.99

57

HOLDER-WIRE

5432261

$24.27

58

SCREW(10)

7511858

$3.99

59

RING-RETAINING EXTERNAL

7710401

$3.99
