REAR TORQUE ARM - S00LB4AS (4953895389b008)

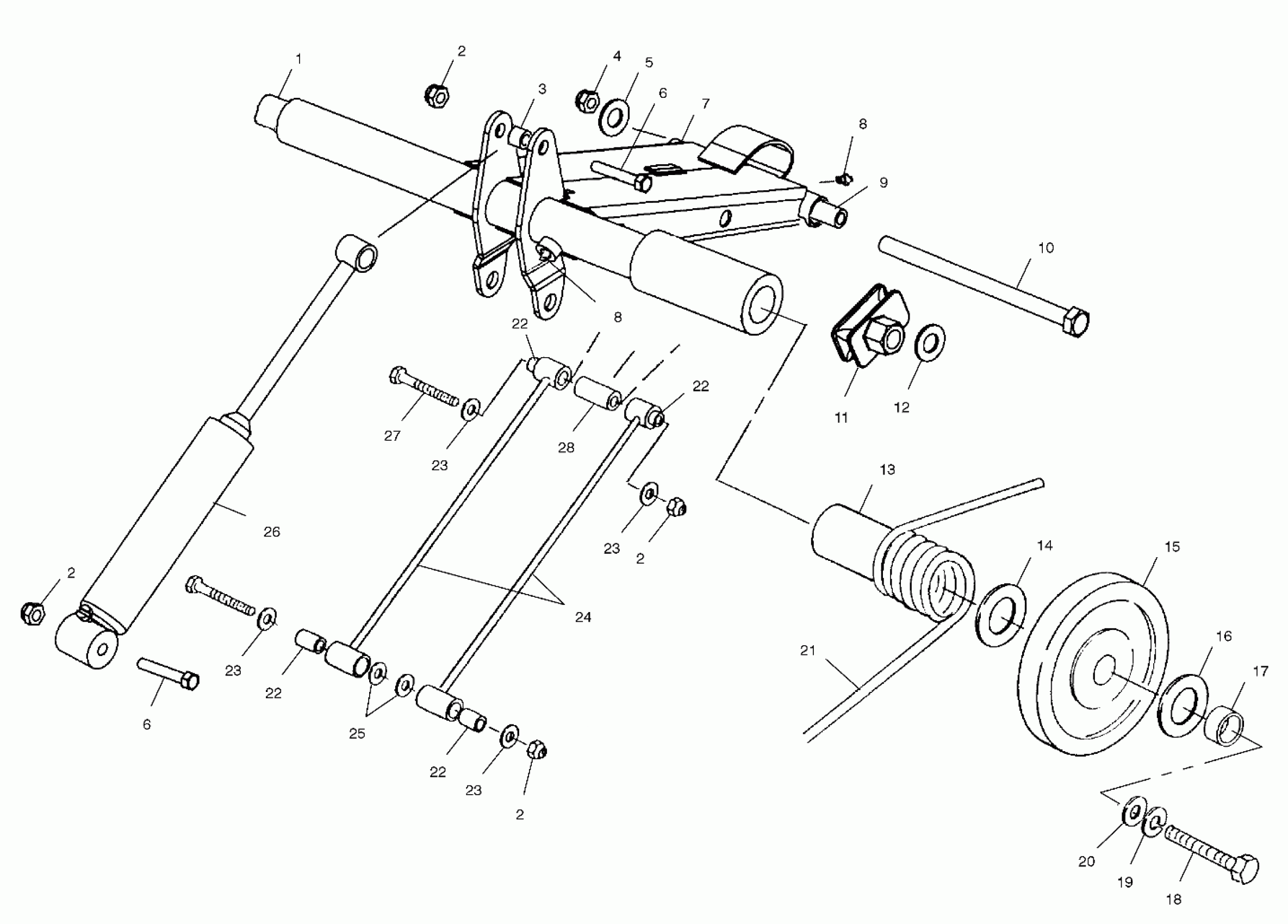

Polaris SPORT (LITE) - S00LB4AS REAR TORQUE ARM - S00LB4AS (4953895389b008) Diagram
#
Description
Price
1
SHAFT,MTG,REAR
5131996
$56.65
2
NUT LOCK(10)
7542411
$3.19
2
NUT LOCK(10)
7542411
$3.19
2
NUT LOCK(10)
7542411
$3.19
2
NUT LOCK(10)
7542411
$3.19
3
Bushing
5132217
$5.59
4
NUT FLEX LOC,(10)
7542319
$4.39
5
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
6
BOLT(10) Substituted by 7515492
7512410
Unavailable
6
BOLT(10) Substituted by 7515492
7512410
Unavailable
7
TORQUE ARM RR,BLK
1541373-067
$186.65
8
FITTING-LUBRICATION 1/4-28
7080424
$4.79
8
FITTING-LUBRICATION 1/4-28
7080424
$4.79
9
Tube
5333483
$11.59
10
SCR,5/16-24X5.00
7517757
$3.99
11
ROLLER, SPRING ADJ.
5431168
Unavailable
12
CLIP-PUSH ON
7080394
$2.39
13
Tube, Spring
5521234
Unavailable
14
WASHER,THRUST(10)
7555877
$3.99
15
WHEEL,CARRIER,ASM
1543022
$69.99
15
BEARING-5/8I.D. (1 Per Wheel)
3513504
$9.59
15
RETAINER(10) (1 Per Wheel)
7710403
$2.63
16
WASHER(10)
7555726
$1.59
17
SPACER-CARR.WHEEL
5332730
$14.99
18
Bolt
7517435
$14.99
19
WASHER(10)
7552603
$1.49
20
WASHER(10)
7555893
$1.49
21
SPRING,LH,TORS. (.406 Dia.)(Standard)
7041521-067
Unavailable
21
SPRING,RH,TORS. (.406 Dia.)(Standard)
7041522-067
Unavailable
21
SPRING,LH,TORS,.393/77DEG. (.393 Dia.)(Optional)
7041555-067
$70.39
21
SPRING,RH,TORS,.393/77DEG. (.393 Dia.)(Optional)
7041556-067
Unavailable
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
23
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
ROD,SHOCK,X10,BLK
1541154-067
Unavailable
25
WASHER(10)
7555957
$4.79
26
SHOCK,R.TORQUE ARM
7041331
Unavailable
27
BOLT(10)
7515472
$2.39
28
Spacer
5333420
$11.99
