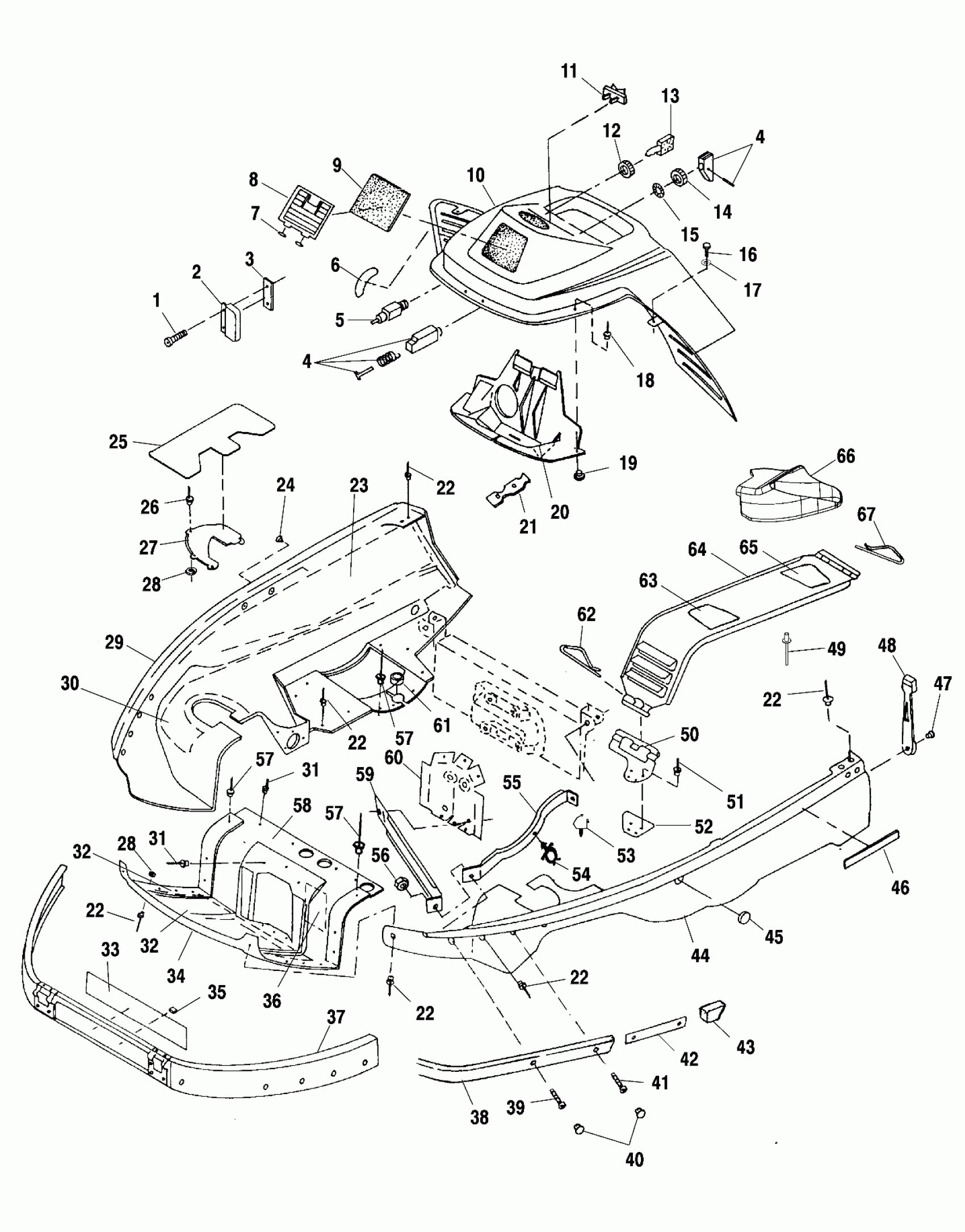

Polaris SPORT (LITE) - S00LB4AS NOSEPAN and CONSOLE - S00LB4AS (4953895389a007) Diagram

#

Description
Price

1

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

2

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

3

HEAT SINK

5210650

Unavailable

4

KIT-CHOKE CONTROL

2200188

$24.27

4

CABLE-CHOKE CONTROL

7080839

$115.08

4

KIT-CHOKE CONTROL

2200188

$24.27

4

CABLE-CHOKE CONTROL

7080839

$115.08

5

SWITCH-E/S

4110061

Unavailable

6

DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]

7073124

Unavailable

7

SEAL, O RING,(10)

5410374

$1.83

8

LOUVER, INTAKE

5431211-070

Unavailable

9

Foam, Intake

5810458

Unavailable

10

CONSOLE,BLACK,DELUXE

5431636-070

$74.39

11

INDICATOR,'ACC'WARN.

4040014

Unavailable

11

PLUG,INDIC.HOLE

5430967

$5.65

11

SWITCH,ROCKER,W/INDIC.

4110195

Unavailable

12

NUT,IGNITION

7547034

Unavailable

13

KEY, IGNITION

5410378

$13.75

14

Nut

7080229

$19.99

15

WASHER-LOCK(10)

7571610

$3.99

16

BOLT(10)

7517468

Unavailable

17

WASHER(10)

7558301

$1.49

18

RIVET,(50)

7621336

$1.59

19

RIVET BURR(50)

7555727

$1.49

20

CONSOLE, INNER

5431214-070

$66.39

21

STRAP,TOOL COMPARTMENT

5410425

Unavailable

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

23

TAPE, FOIL

5810478

Unavailable

24

Clip, Dart

7670067

$3.99

25

TAPE, FOIL,(PAN)

5810482

Unavailable

26

RIVET(50)

7621457

$1.49

27

COVER, RH SHOCK

5431253

Unavailable

27

COVER, LH SHOCK

5431252

Unavailable

28

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

28

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

29

NOSEPAN-RH(W/HOLE-SWAY)BLK

5431230-070

$91.19

30

TAPE, FOIL

5810477

Unavailable

31

RIVET(50)

7621472

$1.49

31

RIVET(50)

7621472

$1.49

32

Tape, Foil

5810475

Unavailable

32

Tape, Foil

5810475

Unavailable

33

SCREEN-FRONT,BLK

5243631-067

$21.43

34

NOSEPAN, CTR.

5431154-070

Unavailable

35

FASTENER-U TYPE CLIP

7670040

$3.99

36

TAPE, FOIL

5810509

Unavailable

37

HINGE,LOWER,BLK.

2635010-067

Unavailable

38

BUMPER,FRT,BLK.

5224434-067

Unavailable

39

SCREW(10)

7515102

$4.79

40

PLUG, BUTTON(10)

7080430

$3.51

41

SCREW(10)

7512164

Unavailable

42

PLATE,BUMPER

5222611-067

Unavailable

43

CAP,BUMPER END,LH,RED

5431250-293

$6.63

43

CAP,BUMPER END,RH,RED

5431251-293

Unavailable

44

NOSEPAN-LH(W/HOLE-SWAY)BLK

5431229-070

$91.19

45

PLUG,CATCH HOLE

5410582

$7.27

46

REFLECTOR AMBER

2670071

Unavailable

47

RIVET,(50)

7621601

Unavailable

48

STRAP,HOODLATCH

5431501

Unavailable

49

RIVET(50)

7621485

$1.49

50

SUPPORT,CLUTCH GD,BLK.

5222332-067

$4.95

51

RIVET(50)

7621449

$3.19

52

PLATE,CLUTCHGUARD,BLK.

5211249-067

$3.49

53

CLIP,OIL LINE RET.(10)

5432302

Unavailable

54

CLIP, PLASTIC(10)

4020139

$4.79

55

BRKT,LH PANBRACE,BLK.

5222339-067

Unavailable

55

BRKT,MUFFLER/BUMPER/PAN,RH,BLK [No Longer Available]

5243755-067

Unavailable

56

NUT-LOCK(10)

7542122

$1.49

57

RIVET(50)

7621479

$1.99

57

RIVET(50)

7621479

$1.99

57

RIVET(50)

7621479

$1.99

58

TAPE, FOIL

5810476

Unavailable

59

BRKT,LH BUMP.BRACE,BLK.

5222345-067

Unavailable

59

BRKT,RH BUMP.BRACE,BLK.

5222346-067

Unavailable

60

BRKT,SUPPORT,BLK.

5222356-067

$38.19

61

SHIELD,NOSEPAN DRAIN HOLE

5811078

Unavailable

62

PIN

5224440

Unavailable

63

DECAL-ENGINE AND CLUTCH,FR

7077795

Unavailable

64

GUARD-CLUTCH

5243761

$53.59

65

DECAL-ENGINE AND CLUTCH,ENG.

7077796

Unavailable

66

DUCT,ENGINE AIR OUTLET,LITE

5433386

Unavailable

67

PIN, FRONT

7080311

Unavailable
