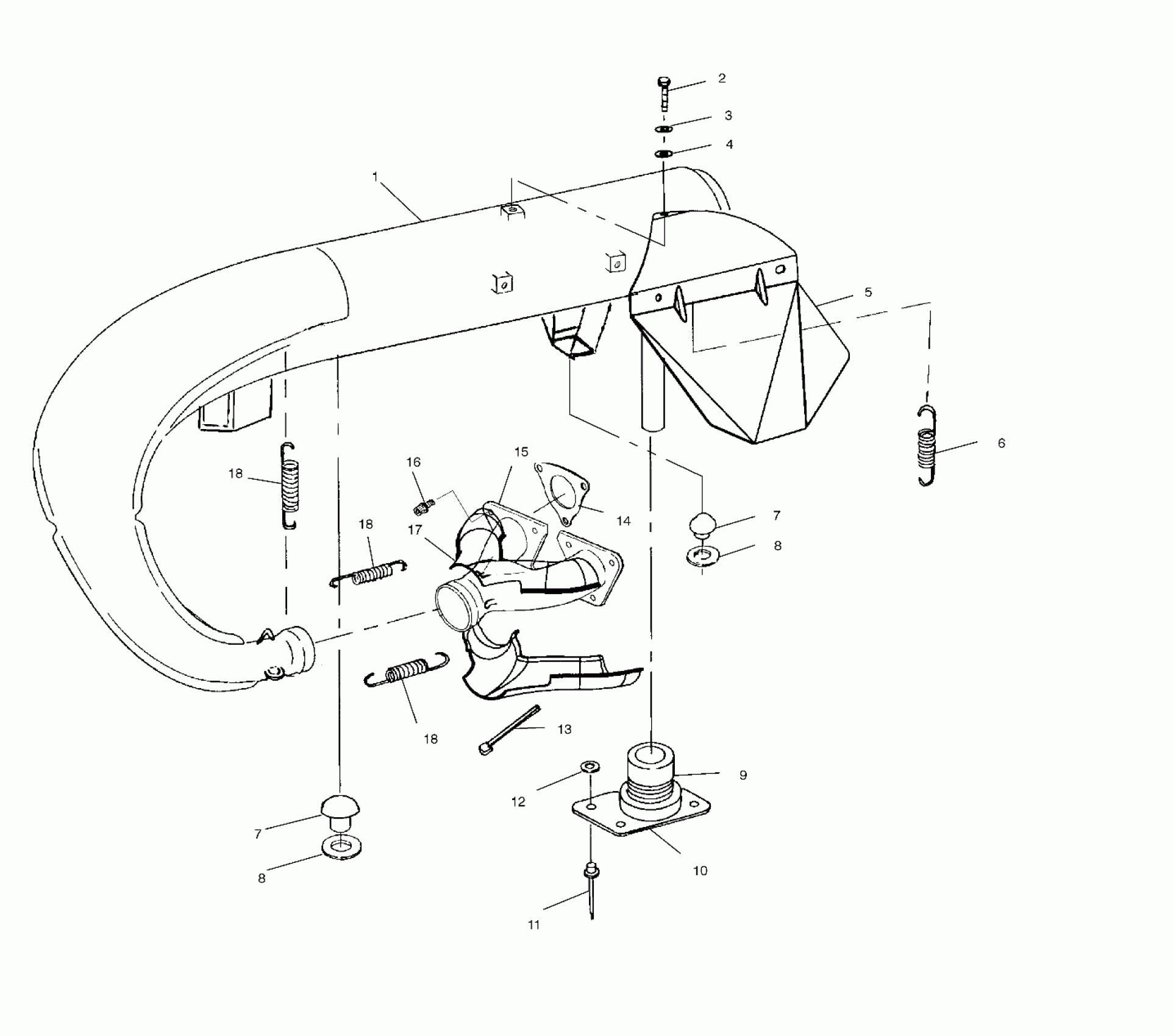

Polaris SPORT (LITE) - S00LB4AS EXHAUST SYSTEM - S00LB4AS (4953895389b012) Diagram

#

Description
Price

1

DESC NOT_AVAILABLE

1260945

Unavailable

1

MUFFLER,BLK.

1260945-029

Unavailable

2

BOLT(10)

7515354

$3.99

3

LOCK WASHER(10)

7552901

$1.49

4

WASHER(10)

7555734

$1.49

5

SHIELD-MUFFLER,LITE

5243744

Unavailable

6

SPRING-EXHAUST(10)

7042029

$4.84

7

DAMPNER, VIB.

5410467

$8.79

7

DAMPNER, VIB.

5410467

$8.79

8

WASHER, THRUST(10)

7555788

Unavailable

8

WASHER, THRUST(10)

7555788

Unavailable

9

Boot, Exhaust

5410502

$24.27

10

HAT,EXH,SNOW DEFLECTOR

5432465

$9.70

11

RIVET, BLIND(50)

7621467

$1.49

12

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

13

CLAMP, HOSE(10) Substituted by 7080870

7080481

Unavailable

14

Gasket, Exhaust (See Cylinder Pg. C1, Ref. 5)

-------

Unavailable

15

MANIFOLD,BLK

1260875-029

Unavailable

16

SCREW,HXSOC

7517555

$8.79

17

COVER-MANIFOLD

5243196

$84.99

17

MATTE-SOUND

5830161

$8.89

18

SPRING-EXHAUST

7041687

$5.65

18

SPRING-EXHAUST

7041687

$5.65

18

SPRING-EXHAUST

7041687

$5.65
