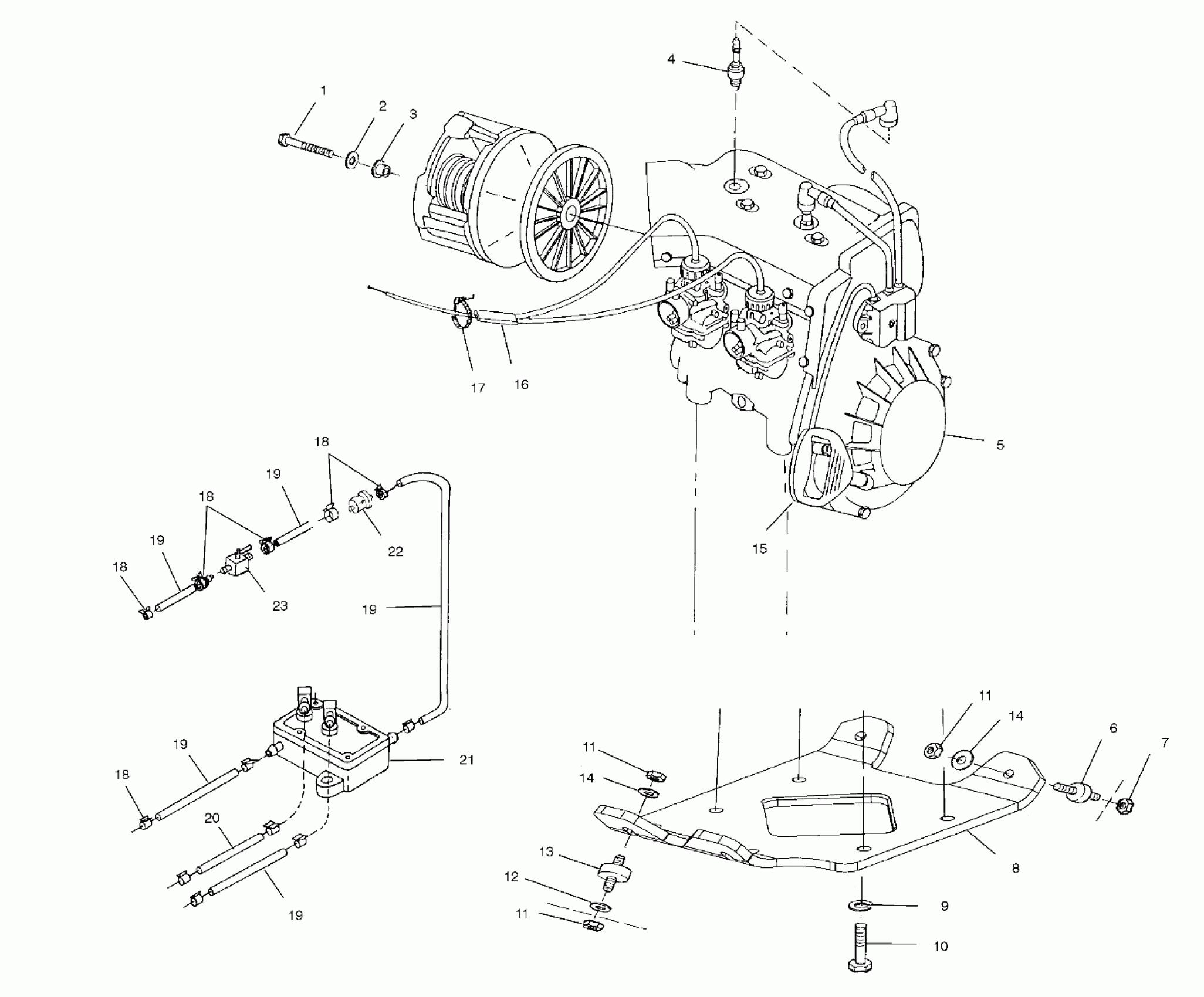

Polaris SPORT (LITE) - S00LB4AS ENGINE MOUNTING - S00LB4AS (4953895389b011) Diagram

#

Description
Price

1

SCREW Substituted by 7517776

7517529

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

SPARK PLUG-NGK BR9ES

3070163

$3.99

5

ENG.(S.B.)EC444PM-010 [No Longer Available] (See Footnote) NOTE: SHORT BLOCK ENGINE The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and cran

3085617

Unavailable

6

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

7

NUT,(10)

7547022

Unavailable

8

PLATE-MOTOR MOUNT

5243509

$25.59

9

WASHER LOCK(10)

7553101

$3.99

10

BOLT(10)

7512539

$3.99

11

NUT,FLEXLOCK,(10)

7547008

$6.39

11

NUT,FLEXLOCK,(10)

7547008

$6.39

11

NUT,FLEXLOCK,(10)

7547008

$6.39

12

WASHER,FLAT(10)

7555915

$3.19

13

MOUNT,ENGINE

3110062

Unavailable

14

WASHER(10)

7555893

$1.49

14

WASHER(10)

7555893

$1.49

15

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

16

CABLE-THROTTLE CONTROL W/OIL

7080838

Unavailable

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

19

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

19

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

19

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

19

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

Asm., Fuel Pump (See Fuel Pump Pg. C5, Ref. 3)

-------

Unavailable

22

FILTER-FUEL,WHITE

2520156

Unavailable

23

VALVE,FUEL SHUT-OFF,FAN

7052219

Unavailable
