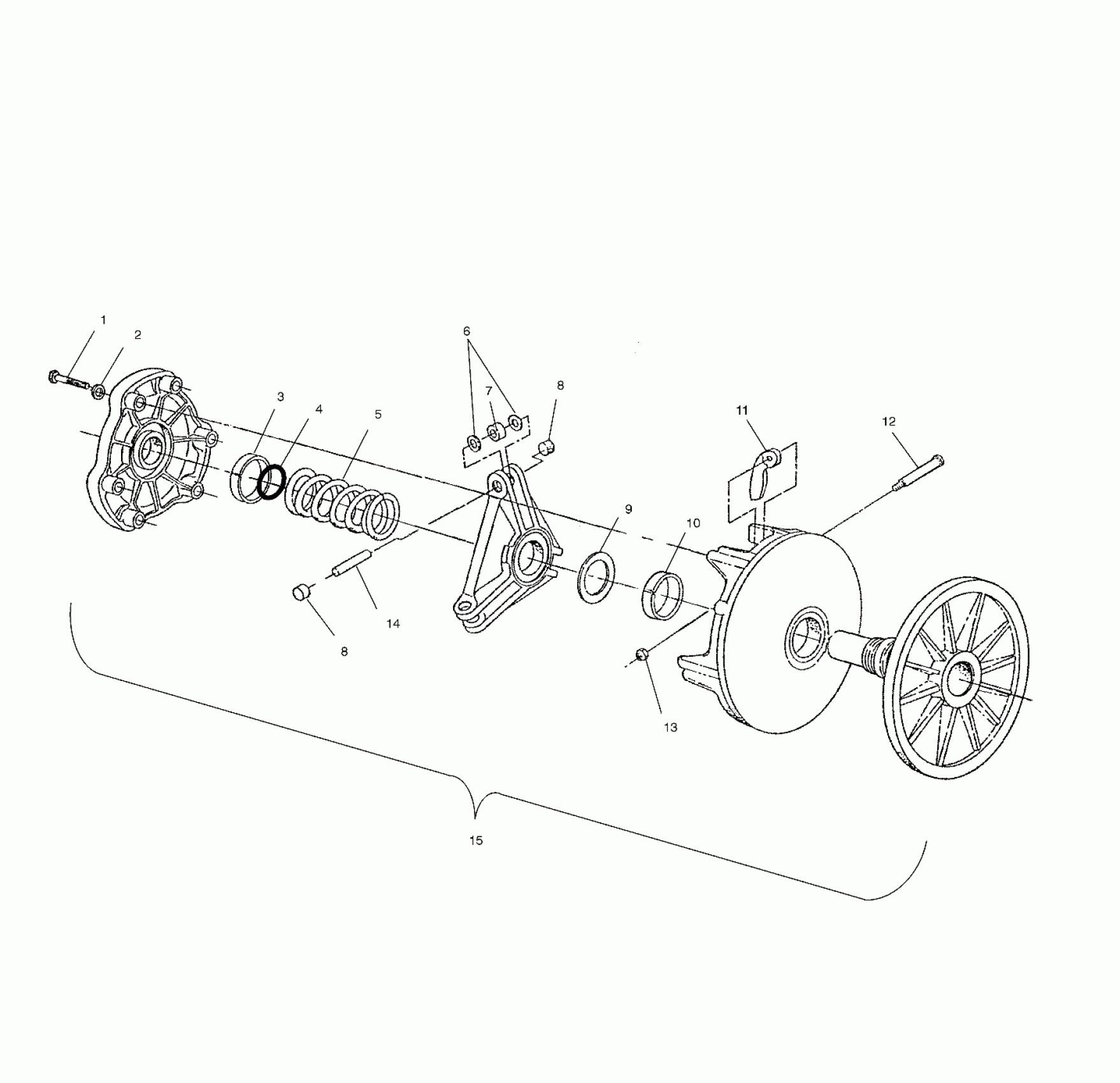

Polaris SPORT (LITE) - S00LB4AS DRIVE CLUTCH - S00LB4AS (4953895389b009) Diagram

#

Description
Price

-

DESC NOT_AVAILABLE (Incl. 6,7,8,12,14)

2201314

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,CLUTCH,SIL/GOLD

7041286

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321457

$40.46

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

SPACER(10) (.050")

5210754

Unavailable

9

SPACER(10) (.025")

5242981

Unavailable

9

SPACER(10) (.020")

5210752

Unavailable

9

SPACER(10) (.032")

5210753

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

WT/BUSH.ASM,10-58(3) (10-58)

1321588

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

NUT FLEX LOC(10)

7541906

$3.19

14

PIN-ROLLER

5020422

$2.39

15

CLUTCH,DRIVE ASM,BASIC 105 (Less 5,11)

1321847

Unavailable
