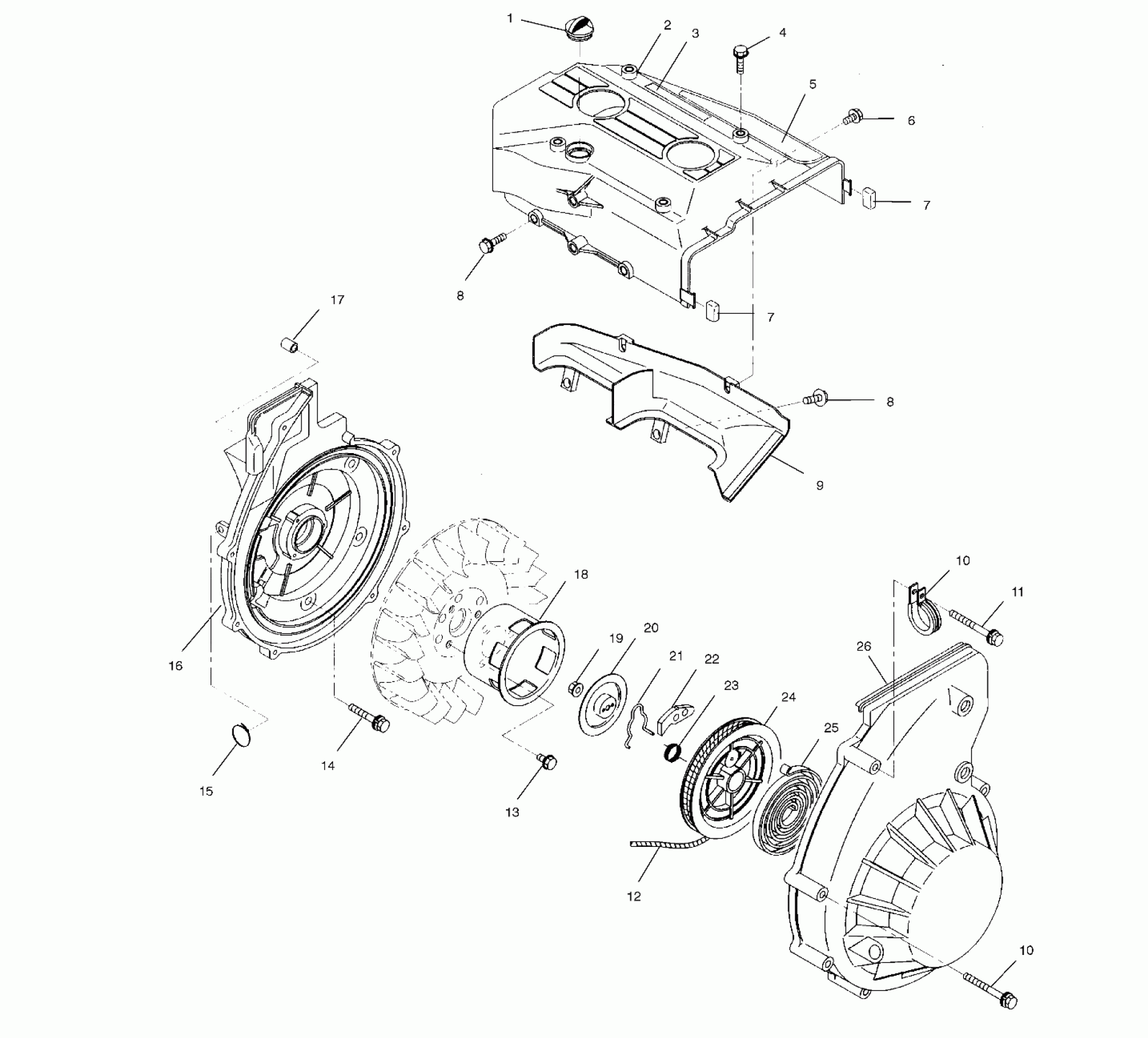

Polaris SPORT (LITE) - S00LB4AS BLOWER HOUSING and RECOIL STARTER - S00LB4AS (4953895389c003) Diagram

#

Description
Price

1

PLUG,HEAT VALVE

3085931

Unavailable

2

BAFFLE,CYL.#1 Substituted by 3086991

3085689

Unavailable

3

DECAL-"POLARIS",ENG.SHROUD,RED

7077756

Unavailable

4

BOLT, FLANGE(10)

3084566

$3.19

5

DECAL-"440",ENGINE SHROUD

7077755

Unavailable

6

BOLT,FLANGE(10)

3085693

$2.39

7

CAP,CYL.BAFFLE

3085690

$9.70

7

CAP,CYL.BAFFLE

3085690

$9.70

8

BOLT,FLANGE

3085694

$2.63

8

BOLT,FLANGE

3085694

$2.63

9

BAFFLE #2,CYL.

3085691

Unavailable

10

CLAMP

3085914

Unavailable

10

CLAMP

3085914

Unavailable

11

BOLT&WASHER ASM.

3083550

Unavailable

12

ROPE,STARTER [No Longer Available]

3085723

Unavailable

13

BOLT&WASHER ASM.(10)

3085688

$2.99

14

BOLT&WASHER ASM.

3084225

$3.99

15

BAND, WIRE

3084384

$4.95

16

HOUSING,BLOWER

3085913

$178.08

17

PIN,STRAIGHT

3084857

Unavailable

18

PULLEY,STARTING

3085685

Unavailable

19

NUT, FLANGE ,(10)

3083381

$2.99

20

Plate, Friction

3083464

$28.32

21

Spring, Friction

3083379

$24.27

22

Ratchet

3083378

$20.22

23

Spring, Return

3083463

$4.03

24

REEL, REWIND

3083377

$56.65

25

Spring, Spiral

3083376

$179.11

26

STARTER,RECOIL Substituted by 3087018 (Incl.12,19-26)

3085684

Unavailable

26

CASE,STARTER Substituted by 3087019

3085722

$242.84
