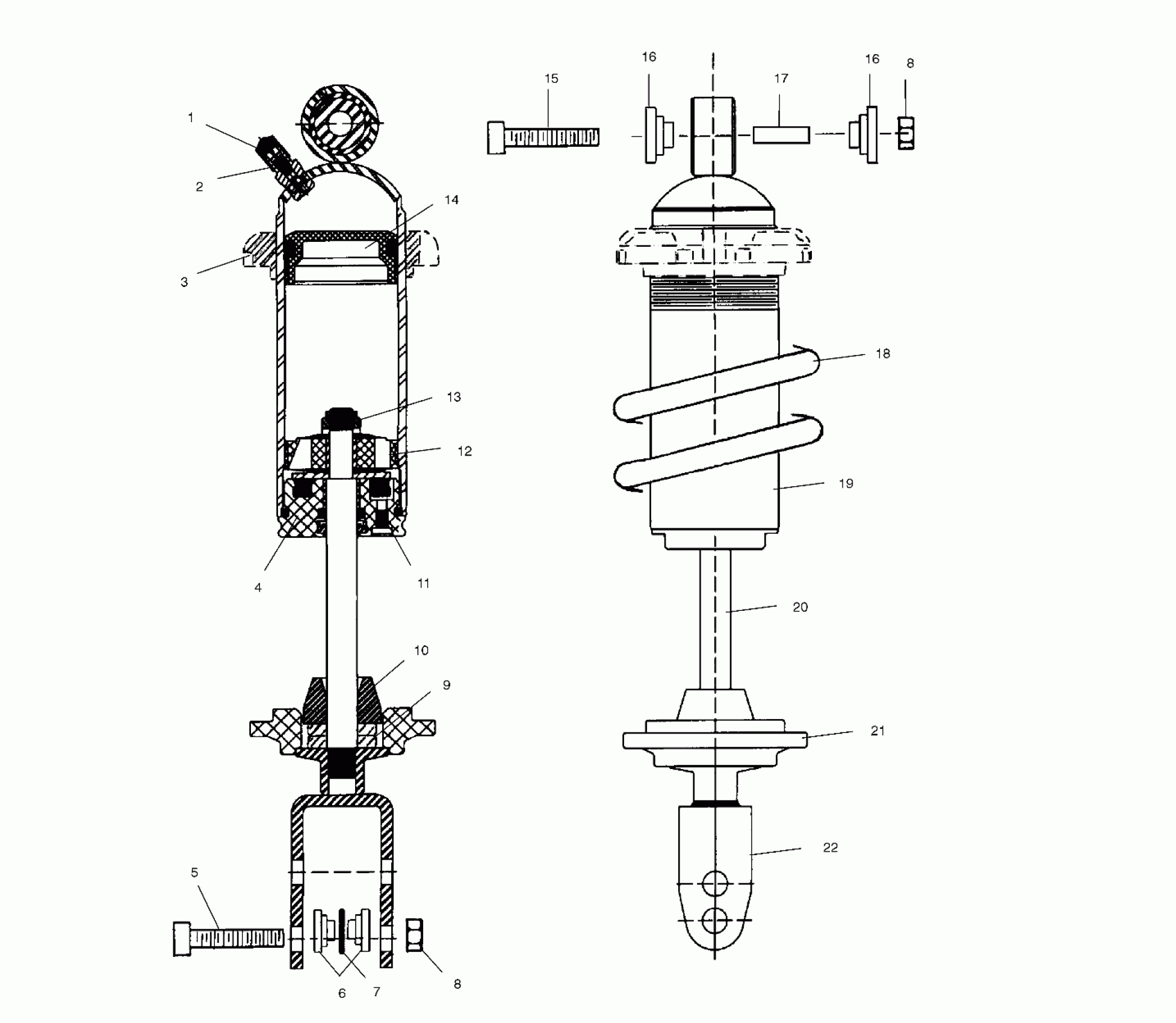

Polaris SPORT CRUISER - V00CS15CC SUSPENSION, SHOCK, REAR - V00CS15DC (4952625262B05) Diagram

#

Description
Price

-

ASM., SHOCK, REAR

1541531

Unavailable

1

CAP, VALVE

1500210

Unavailable

2

VALVE, SCHRADER

1500206

$24.19

3

RING, SPRING PRELOAD

1500207

$12.70

4

BEARING

1500294

Unavailable

5

SCREW

7517365

Unavailable

6

Reducer

1500173

Unavailable

7

O-RING

1500093

$7.27

8

Nut

7547122

Unavailable

8

Nut

7547122

Unavailable

9

Bumper

1500074

$5.65

10

BUMPER

1500066

Unavailable

11

Screw

1500295

Unavailable

12

BEARING, SET CUT

1500230

$31.99

13

Nut, Lock

1500016

$12.79

14

Piston, Floating

1500211

$48.00

15

SCREW

7517364

Unavailable

16

BUSHING

1500103

$8.08

16

BUSHING

1500103

$8.08

17

SLEEVE

1500274

Unavailable

18

SPRING

7041913

Unavailable

19

BODY

1500292

Unavailable

20

SHAFT

1500293

Unavailable

21

RETAINER, SPRING

1500178

$70.87

22

EYELET, CLEVIS

1500305

Unavailable
