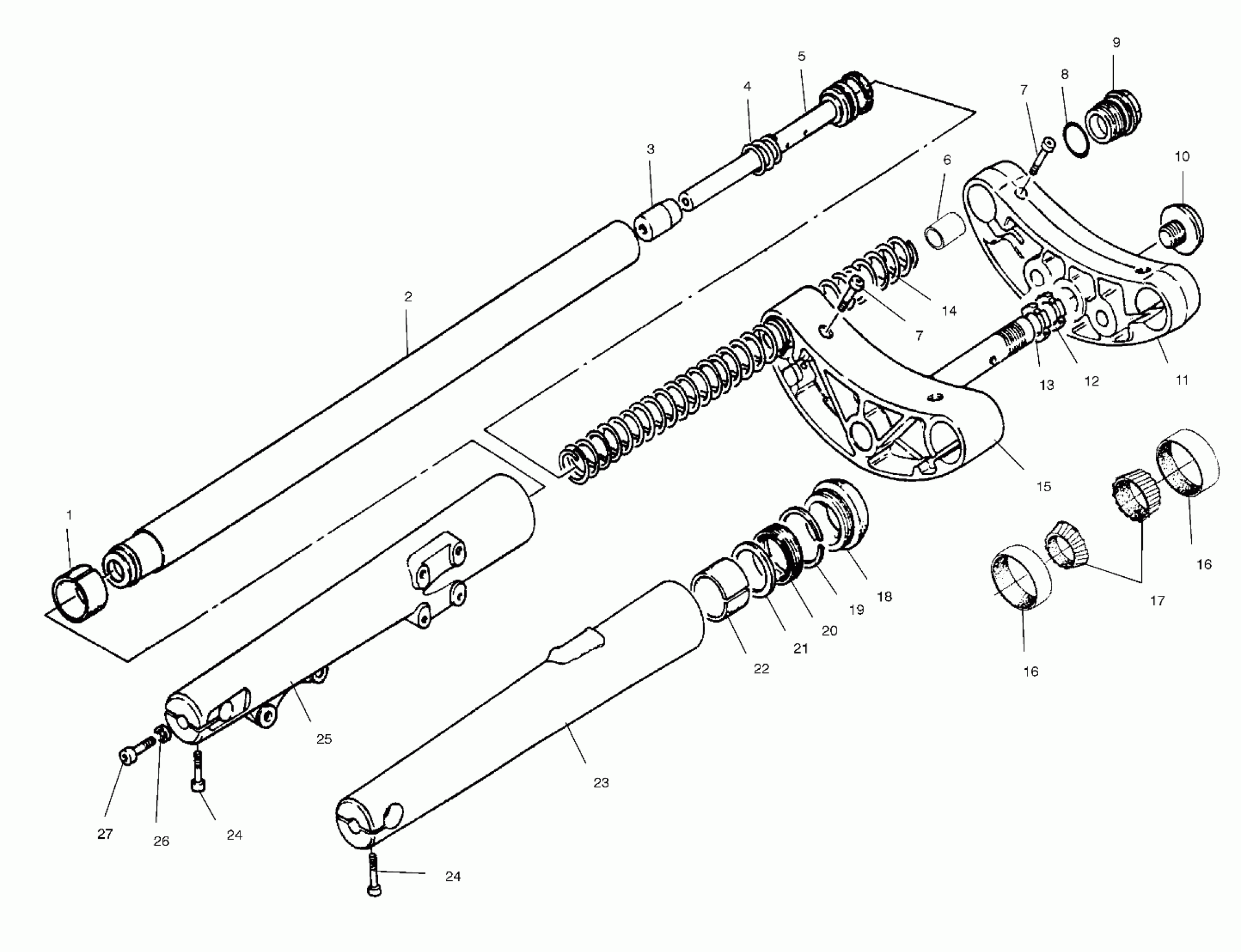

Polaris SPORT CRUISER - V00CS15CC SUSPENSION, FRONT FORKS - V00CS15DC (4952625262A011) Diagram

#

Description
Price

-

OIL,FORK,MARZOCCHI SAE7.5 Substituted by 2872184

2871985

$12.39

-

FORKLEG ASM,LH,50MMCONV (Incl. 1-5,8-10,14-27)

1820602

Unavailable

-

FORKLEG ASM,RH,50MMCONV (Incl. 1-5,8-10,14-27)

1820603

Unavailable

1

BUSHING,LOWER,50MM

3514345

Unavailable

2

TUBE,STANCHION,50MM Substituted by 1820603

1820608

Unavailable

3

FOOT,BUFFER,50MM

5132551

Unavailable

4

SPRING,REBOUND

7041624

$10.63

5

ROD,DAMPER

5132550

Unavailable

6

SLEEVE,PRELOAD

3514344

$31.06

7

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

7

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

8

O-RING,FORK,50MM

5411874

Unavailable

9

CAP,FORK,50MM

5132437

$172.22

10

BOLT,STEERING POST,CAP

5131497

$116.67

11

CLAMP,TRIPLE,UPPER,50MM

1820605

$253.97

12

NUT-STEERING POST,UPPER

5131953

$17.46

13

NUT,STEERING POST

5131496

$33.33

14

SPRING,COMPRESSION,50MM

7041891

$86.51

15

TRIPLECLAMP ASM,LWR,50MM (Incl. 7,10,12,13)

1820604

$288.99

16

BRG,TAPER,ROLL CUP

3554507

$31.99

16

BRG,TAPER,ROLL CUP

3554507

$31.99

17

BEARING,TPR.RLR,SEALED

3554510

Unavailable

18

O-RING

5411874

Unavailable

18

CAP,DUST,50MM

5132438

Unavailable

19

RING,STOP,50MM

5244334

$5.05

20

SEAL,OIL,50 MM

3610077

$35.71

21

CAP,SEAL,50MM

5132436

$26.98

22

BUSHING,UPPER,50MM

3514346

$96.02

23

LEG,SLIDER,50MM,CONV,LH Substituted by 1820602

1820606

Unavailable

24

CLAMP,AXLE FASTENER

1500168

Unavailable

24

CLAMP,AXLE FASTENER

1500168

Unavailable

25

LEG,SLIDER,RH,50MM,CONV Substituted by 1820603

1820607

Unavailable

26

WASHER,OILSEAL

3610069

$23.81

27

RETAINER,DAMP.TUBE FASTENER

1500169

$4.21
