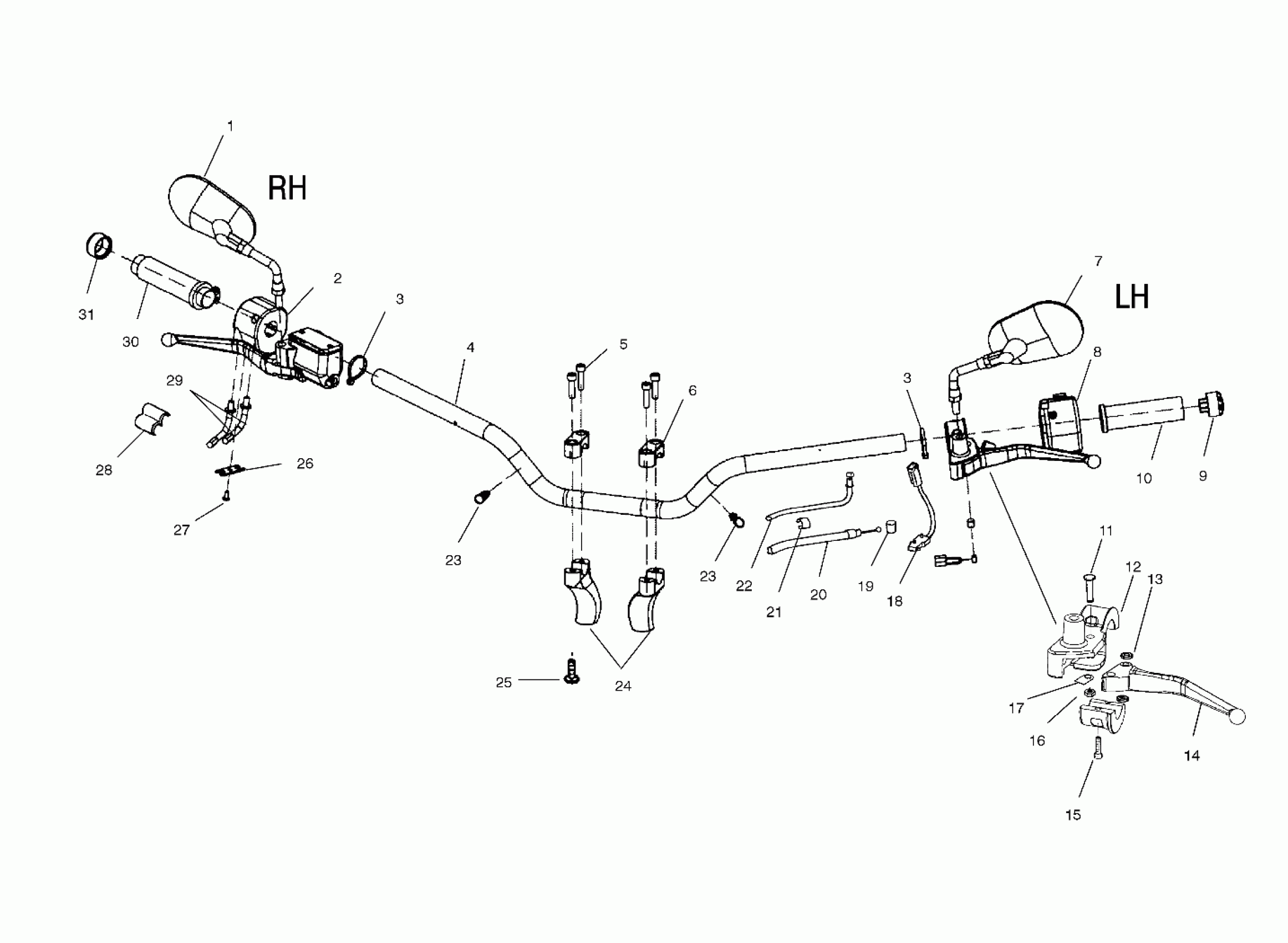

Polaris SPORT CRUISER - V00CS15CC STEERING, HANDLEBAR - V00CS15DC (4952625262A010) Diagram

#

Description
Price

1

MIRROR,RH.

2670186

$102.38

2

SW,RH,HANDCONTROL,W/PT

4110241

$124.99

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

HANDLEBAR-SC

5243128

Unavailable

5

SCREW (10)

7517361

$23.99

6

CAP,RISER,SC Substituted by 5333903

5333799

$61.90

7

MIRROR,LH.

2670193

Unavailable

8

SW,LH,HANDCONTROL,W/PT

4110240

Unavailable

8

SCREW,PHPNH,M5X25

7517366

Unavailable

9

CAP,LH,H'BAR END

5432692

Unavailable

10

GRIP,LH,H'BAR

5411256

$40.46

11

KIT,HARDWARE,LEVER CLUTCH (13,16,17)

2201229

$35.08

11

PIN,CLUTCH LEVER PIVOT

5020946

$21.03

12

BRKT,CLUTCH/MIRROR,LH

5131654

$30.32

13

WASHER, CLUTCH LEVER

-------

Unavailable

14

LEVER,HAND,CLUTCH,LH,MACH

5131562

$91.27

15

KIT,HARDWARE,CLAMP (Incl. Clamp and Screws)

2201230

$45.38

15

CAP,CLUTCH/MIRROR,LH

5131655

$41.27

15

SCREW,SOCHD,M6X20

7517630

$2.38

16

NUT, NYLOK

-------

Unavailable

17

CLIP, SWITCH

-------

Unavailable

18

SWITCH,MICRO,CLUTCH SAFETY

4110257

Unavailable

19

BUSHING-CLUTCH CABLE,UPPER

5433071

Unavailable

20

CABLE,CLUTCH,7X7 SC

7080918

Unavailable

21

CLIP,CLUTCH,FAST IDLE CABLES

5433070

Unavailable

22

CABLE,FAST IDLE,SC

7080821

Unavailable

23

DART,HANDLEBAR,(10)1/2"

5433140

Unavailable

23

DART,HANDLEBAR,(10)1/2"

5433140

Unavailable

24

RISER-HANDLEBAR,MACH,SC

5333767

$46.39

25

SCR-SOCHD,M10X60,0600084(10)

7517586

Unavailable

26

RETAINER,RH,THROT.CABLE

5242448

Unavailable

27

SCREW (10) Substituted by 7517366

7517420

Unavailable

28

CLIP,THROTTLECABLES,DUAL

5433039

Unavailable

29

CABLE,THROTTLE ASM,SC

2010185

$119.98

30

GRIP,H'BAR,THROTTLE

5411255

$38.41

31

CAP,RH,H'BAR END

5432715

$36.19
