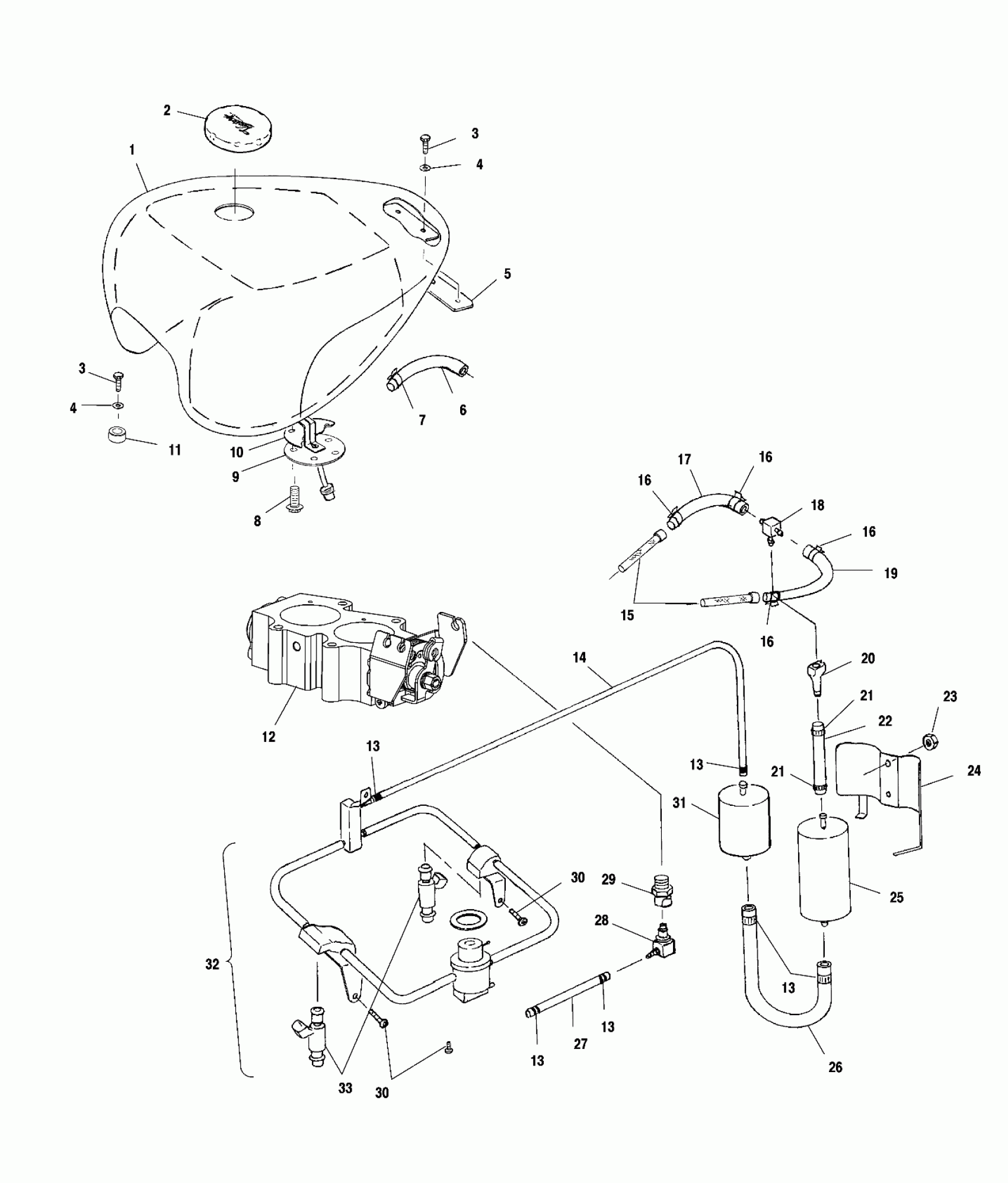

Polaris SPORT CRUISER - V00CS15CC FUEL SYSTEM, FUEL TANK, PUMP, RAILS and THROTTLE BODY - V00CS15LE (4952625262D003) Diagram

#

Description
Price

1

TANK,FUEL,BLK Substituted by 1013242A2

1013050-266

Unavailable

1

TANK,FUEL,CHAMPION RED Substituted by 1013242A3

1013050-301

Unavailable

1

TANK,FUEL,STEEL GREY Substituted by 1013242A5

1013050-302

Unavailable

2

CAP,FUEL

5132333

Unavailable

3

SCREW

7517723

Unavailable

3

SCREW

7517723

Unavailable

4

WASHER(10)

7556123

Unavailable

4

WASHER(10)

7556123

Unavailable

5

PAD-REAR,TANK MOUNT

5411796

Unavailable

6

HOSE-VENT,FUEL TANK

2520147

Unavailable

7

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

8

SCREW,SOCHD,M5X10,ZPB

7517725

Unavailable

9

SENDER-FUEL LEVEL,SMALL FLOAT

4010277

$172.22

10

GASKET-FUEL SENDER

5811851

$38.41

11

GROMMET-RUBBER,FUEL TANK,FRONT

5811878

Unavailable

12

ASM-BODY,THROTTLE(CALIFORNIA MODEL)

1253328

$404.99

13

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

13

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

13

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

13

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

13

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

14

HOSE,FILTER/MANIFOLD

5411803

$26.98

15

FILTER,FUEL

2530031

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

17

HOSE,TANK/QUICK DISC,RH

5411799

Unavailable

18

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

18

O-Ring

1500199

$4.76

19

HOSE,TANK/QUIK DSC,MOD,LH Substituted by 5411929

5411914

Unavailable

20

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

21

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

21

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

22

HOSE,QUICK-DISC/PUMP

5411801

Unavailable

23

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

24

BRKT,FUELPUMP TOP,BLK

5211889-067

Unavailable

25

PUMP,FUEL

2520128

Unavailable

26

HOSE,PUMP/FILTER

5411802

Unavailable

27

HOSE,RAIL/TANK RETURN

5411804

$34.44

28

O-Ring

1500199

$4.76

28

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

29

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

30

SCREW (10)

7517405

$10.39

30

SCREW (10)

7517405

$10.39

31

FILTER,FUEL,HI-PRESSURE

2530028

$40.46

32

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

33

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

33

Injector, Fuel

1253174

$177.13
