Description

Price

1

BEZEL,HEADLAMP

1080019

Unavailable

2

RING,H/L.RETAINING

5241850

$90.99

3

HEADLIGHT,SEALEDBEAM,7 1/4"

4010160

Unavailable

4

SCREW,(10)SOCHD,M5X30

7517728

$5.40

5

MNT,HOUSING,INNER,HD.LAMP

5244505

$118.08

6

SPRING-ADJUSTER HEADLIGHT(10)

7041871

Unavailable

7

WASHER(10)

7556093

$2.17

8

HEADLIGHT HOUSING,SC ASM. (Incl. 18)

1013041

Unavailable

9

GASKET,SPEEDO

5811529

$17.94

10

LAMP INDICATOR,SPEEDO

2410102

$15.87

11

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

12

COVER,SPEEDOMETER

5432695

Unavailable

13

GAUGE,SPEED/TACH,SPORT Substituted by 2201964

3280261

Unavailable

13

GAUGE,SPEEDO/TACH,CAN,SC Substituted by 3280383 (Can.)

3280347

Unavailable

14

SCREW (10)

7517494

$7.91

15

BRKT,HEADLIGHT STIFFENING

5243286

$27.94

16

SCR-SOCHD,M8X16,0600084

7517523

Unavailable

17

GROMMET,H/L HSG/WIRE

5411350

$4.37

18

NUT (10)

7547126

$3.19

19

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

20

RETAINER,SPEEDO,BLK.

5211872-067

$58.33

21

WASHER (10)

7556088

$4.79

22

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

23

SCREW

7517681

$2.60

24

SCREW,SS.

7517368

$1.30

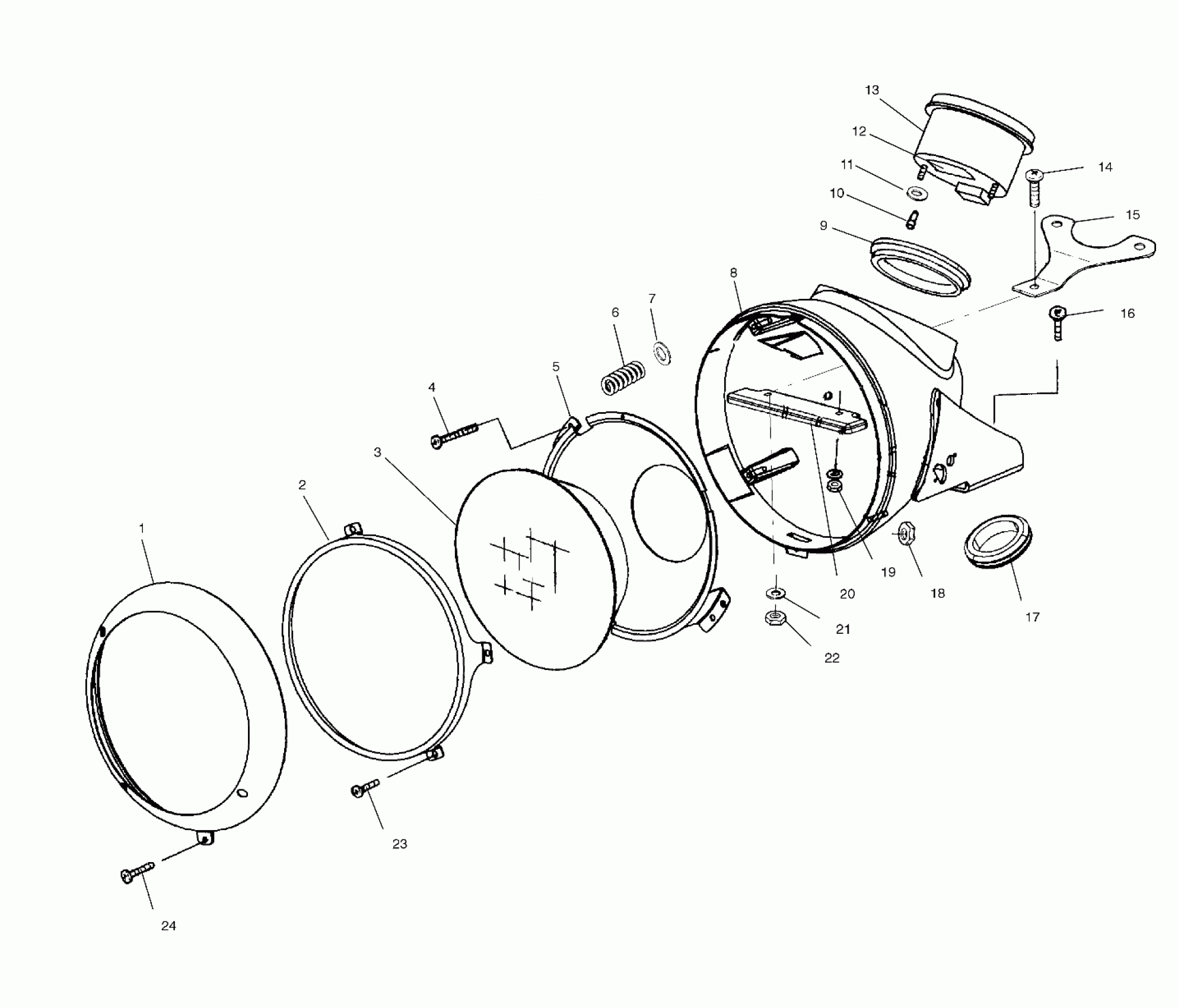

Polaris SPORT CRUISER - V00CS15CC ELECTRICAL, HEADLIGHT - V00CS15DC (4952625262B01) Diagram

BEZEL,HEADLAMP

RING,H/L.RETAINING

HEADLIGHT,SEALEDBEAM,7 1/4"

SCREW,(10)SOCHD,M5X30

MNT,HOUSING,INNER,HD.LAMP

SPRING-ADJUSTER HEADLIGHT(10)

WASHER(10)

HEADLIGHT HOUSING,SC ASM. (Incl. 18)

GASKET,SPEEDO

LAMP INDICATOR,SPEEDO

WSHR-6.4X18.0X1.6 ZPB

COVER,SPEEDOMETER

GAUGE,SPEED/TACH,SPORT Substituted by 2201964

GAUGE,SPEEDO/TACH,CAN,SC Substituted by 3280383 (Can.)

SCREW (10)

BRKT,HEADLIGHT STIFFENING

SCR-SOCHD,M8X16,0600084

GROMMET,H/L HSG/WIRE

NUT (10)

NUT-6 MM X 1.00-NYLOK-SS

RETAINER,SPEEDO,BLK.

WASHER (10)

NUT-HEX-M6X1.0 8 SPC

SCREW

SCREW,SS.
