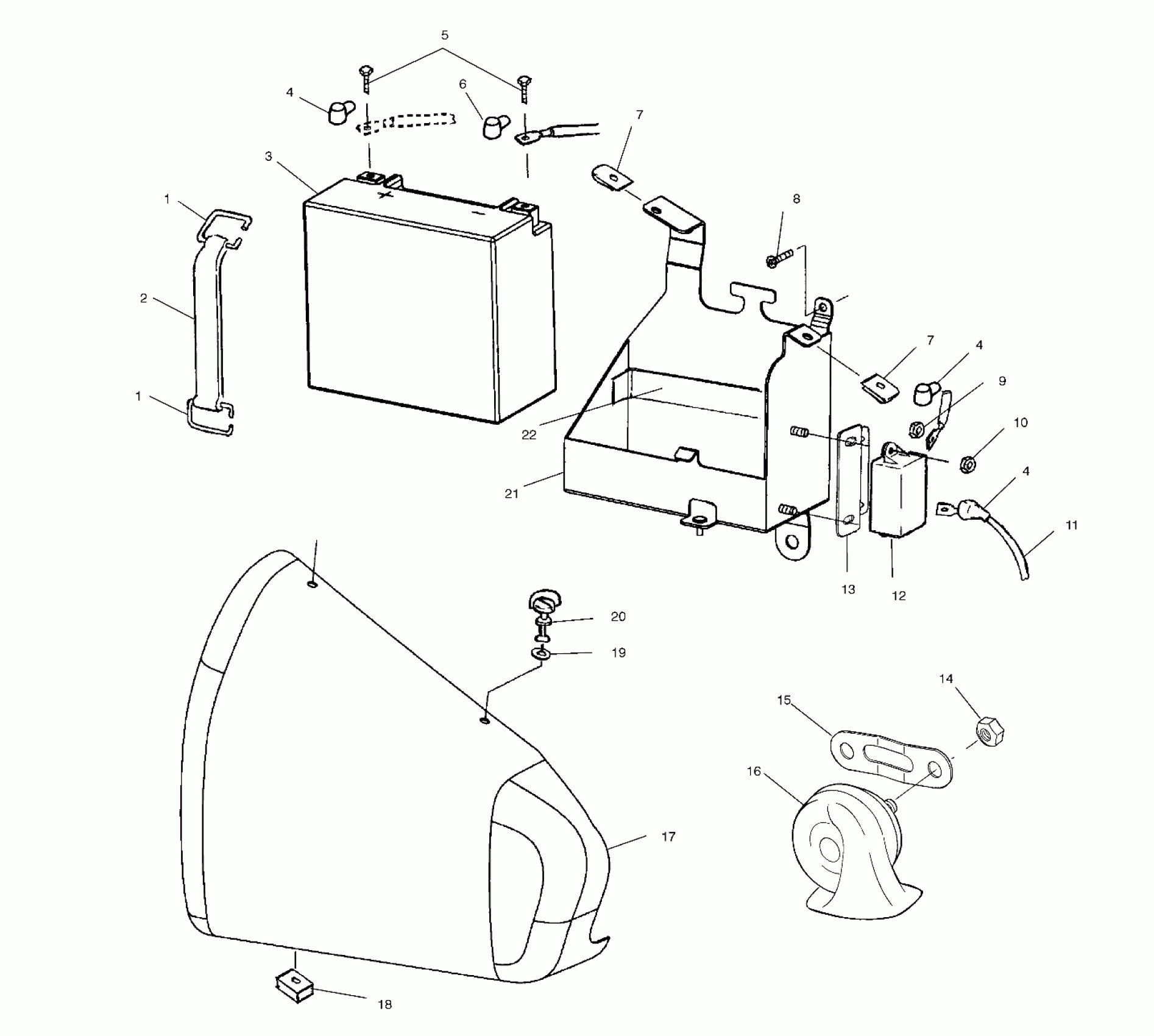

Polaris SPORT CRUISER - V00CS15CC ELECTRICAL, BATTERY BOX - V00CS15DC (4952625262B006) Diagram

#

Description
Price

1

HOOK,'D',SST/SS,(10)

5224472

Unavailable

1

HOOK,'D',SST/SS,(10)

5224472

Unavailable

2

STRAP,BATTERY HOLDDOWN

5410424

$4.84

3

BATTERY,(2)

4140011

$151.99

4

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

4

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

4

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

5

BATTERY BOLT KIT

2201357

Unavailable

6

BOOT,BTTRY CABLE,BLK,NEG [No Longer Available]

5411571

Unavailable

7

RECEPTACLE,1/4 TURN(10)

7080783

Unavailable

7

RECEPTACLE,1/4 TURN(10)

7080783

Unavailable

8

SCREW,BTNHD,M6X12(10) Substituted by 7517739

7517479

$10.46

9

NUT (10) Substituted by 7547119

7547077

Unavailable

10

NUT,FLEXLOC

7547091

Unavailable

11

CABLE,STARTER/RELAY

4010151

$38.41

12

RELAY,STARTER,SEIMENS

2410181

Unavailable

13

DESC NOT_AVAILABLE

5244277

Unavailable

14

NUT Substituted by 7547120

7547041

$5.22

15

BRKT,HORN,BLK.

5311055-067

$57.14

16

HORN

4040072

$86.51

17

CVR,SIDE,LH,'00 CRUSR,BLK

5244461-266

Unavailable

18

GROMMET,SIDE COVER(10) Substituted by 5433510

5411351

Unavailable

19

WASHER,SEALING,1/4 TURN(10)

7556067

Unavailable

20

STUD,1/4 TURN

7080784

Unavailable

21

BOX,BATTERY,BLK

1080014-067

Unavailable

22

PAD,BATTERY BOX

5210868

$1.05
