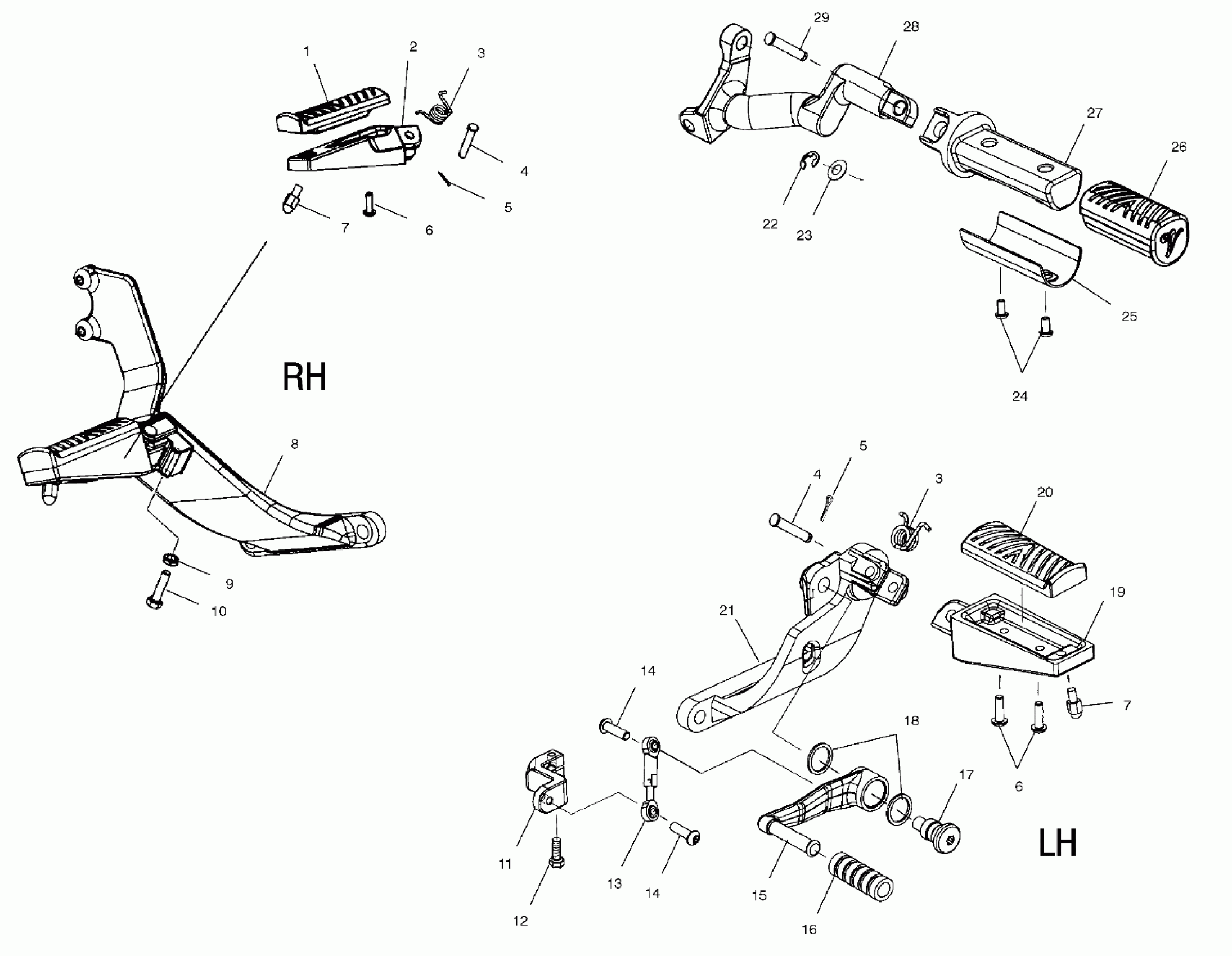

Polaris SPORT CRUISER - V00CS15CC DRIVE TRAIN, SHIFT LEVER and FOOTPEG MOUNTING - V00CS15DC (4952625262A008) Diagram

#

Description
Price

1

ASM-FOOTPEG PAD,SC,RH

1013090

$24.60

2

FOOTPEG-DRIVER RH,MACH

5132009

Unavailable

3

SPRING-FOOTPEG,DRIVER

7041771

Unavailable

3

SPRING-FOOTPEG,DRIVER

7041771

Unavailable

4

PIN,PIVOT,SC

5132048

$18.25

4

PIN,PIVOT,SC

5132048

$18.25

5

COTTER,PIN STEEL(10)

7661074

Unavailable

5

COTTER,PIN STEEL(10)

7661074

Unavailable

6

SCR-M5/16 BHCS 0600095

7517680

$1.30

6

SCR-M5/16 BHCS 0600095

7517680

$1.30

7

SCREW,ACORN,SS.

7517350

$8.71

7

SCREW,ACORN,SS.

7517350

$8.71

8

BRACKET, FOOTPEG MOUNT, RH, BLACK

5132660-067

Unavailable

9

NUT,HEXHD,M6

7547062

$0.60

10

SCREW (10)

7517510

$5.22

11

LEVER-SHIFTER,MACH,SC

5132114

Unavailable

12

SCREW,SOCHD,M6X20

7517506

$4.35

13

LINKAGE,SHIFTER,SC,ASM.

1013077

Unavailable

14

SCREW,BTNHD,M6X25

7517513

$4.62

14

SCREW,BTNHD,M6X25

7517513

$4.62

15

SHIFTLEVER,ASM,SC

1012891

$163.49

16

PAD,SHIFT PEDAL

5411364

$28.32

17

SCREW-LEVER PIVOT

5132115

$45.87

18

SEAL,SHIFTER/BRAKE

5411621

$4.92

19

FOOTPEG-DRIVER LH,MACH

5132008

$49.21

20

ASM-FOOTPEG PAD,SC,LH

1013086

$25.40

21

BRACKET-CRADLE MOUNT,FOOTPEGLH Substituted by 5132010-067

5132010

$175.99

22

E-CLIP,M8,STEEL(10)

7710493

$0.68

23

WASHER,SPRING,SS.(10)

7556046

Unavailable

24

SCREW

7517359

$4.35

25

PAD,RH,FOOTPEG,PASS.

5411334

$10.63

26

COVER-FOOTPEG,BLACK

5243767-067

$15.56

27

FOOTPEG-PASS,LH

5132303

Unavailable

27

FOOTPEG-PASS,RH

5132304

$49.21

28

SUPPORT,FTREST,PAS,LH,BLK

5244041-067

Unavailable

28

SUPPORT,FTREST,PAS,RH,BLK

5244042-067

$130.95

29

PIN,PIVOT,PASS.PEG,SS

5131857

$23.41
