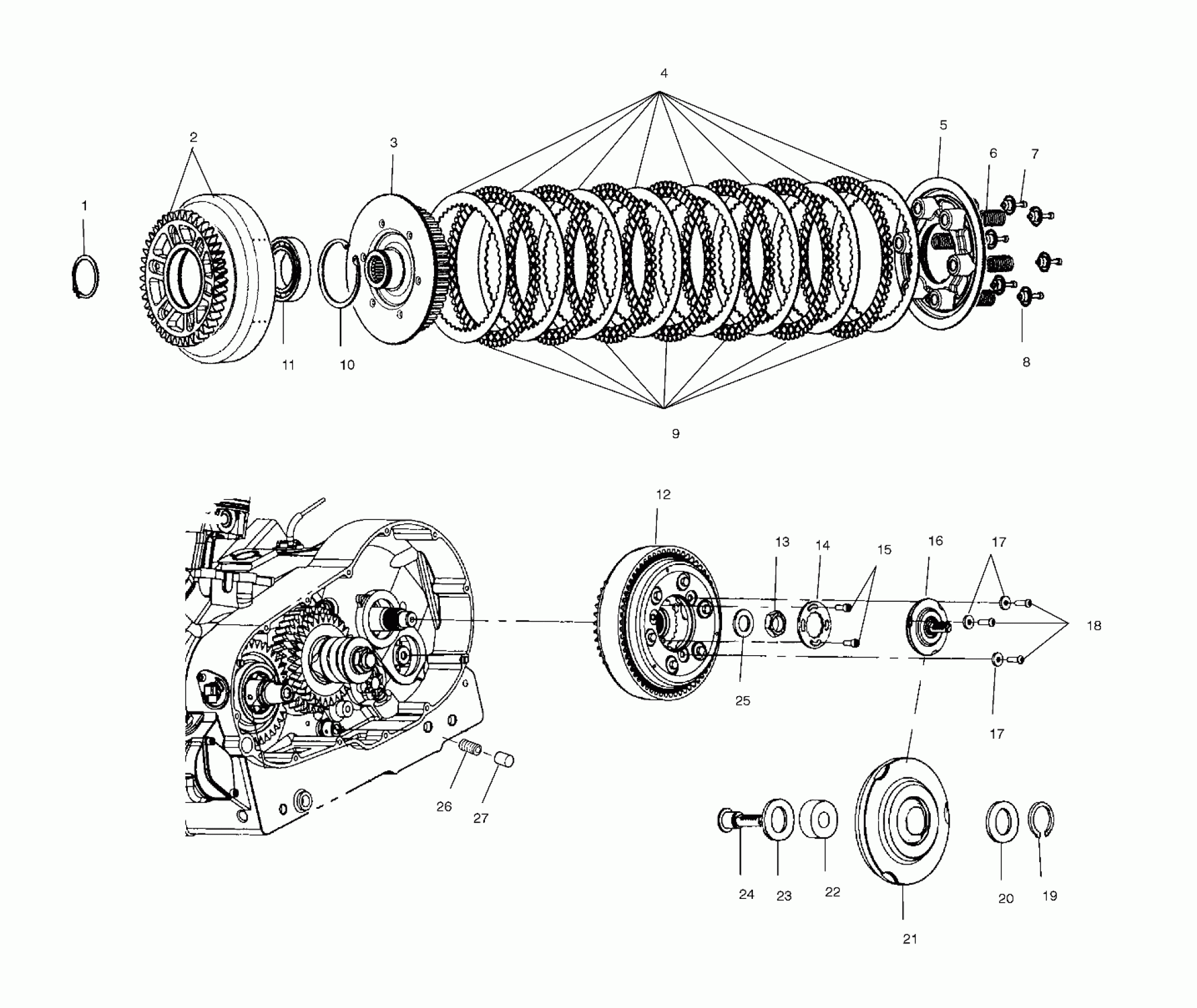

Polaris SPORT CRUISER - V00CS15CC DRIVE TRAIN, DRIVE CLUTCH - V00CS15LE (4952625262D002) Diagram

#

Description
Price

1

RING-RTNG,EXT,EL,40,

7710483

Unavailable

2

ASM-GEAR/BASKET

1341298

Unavailable

3

HUB,CLUTCH,MACH

5132178

$331.99

4

PLATE,SEPARATOR,CL 1(8)

3230536

Unavailable

5

PLATE-PRESSURE MACH

5132140

$73.81

6

SPRING,CLUTCH

7041610

$13.49

7

SCREW

7517661

$5.40

8

WASHER (10)

7556054

$10.39

9

PLATE,FRICTION,CLUTCH(9)

3230535

$41.27

10

RING-RTNG,INT,EL,68

7710484

$9.99

11

BEARING-BALL,40X68X9

3514322

$25.30

12

CLUTCH PACK ASM. (Incl. 4,9)

1321838

Unavailable

12

Asm., Clutch

-------

Unavailable

13

NUT (10)

7547019

$26.17

14

WASHER-LOCK PLATE M20

5244113

$1.19

15

SCREW,SOCHD,M6X15

7517272

$7.19

16

INSERT ASM,RACK (Incl. 19,20,21,22,24)

1341211

$144.99

17

WASHER,FLAT(10)

7556032

$5.40

17

WASHER,FLAT(10)

7556032

$5.40

18

SCREW

7517596

$2.17

19

RING,RETAINING,EXT.(10)

7710462

$2.17

20

WASHER,SPRING

7556019

$9.99

21

INSERT,PRESSURE PLATE

5131433

$23.02

22

BEARING,BALL

3513517

$13.08

23

WSHR-SHIM,25.4X.46X16.7

7556075

Unavailable

24

RACK,CLUTCH

6230123

$90.48

25

WASHER,HUB

5131658

$7.94

26

PLUG,M14X10

7051528

$10.63

27

SCREW,SET,M10X16(10)

7517449

$4.17
