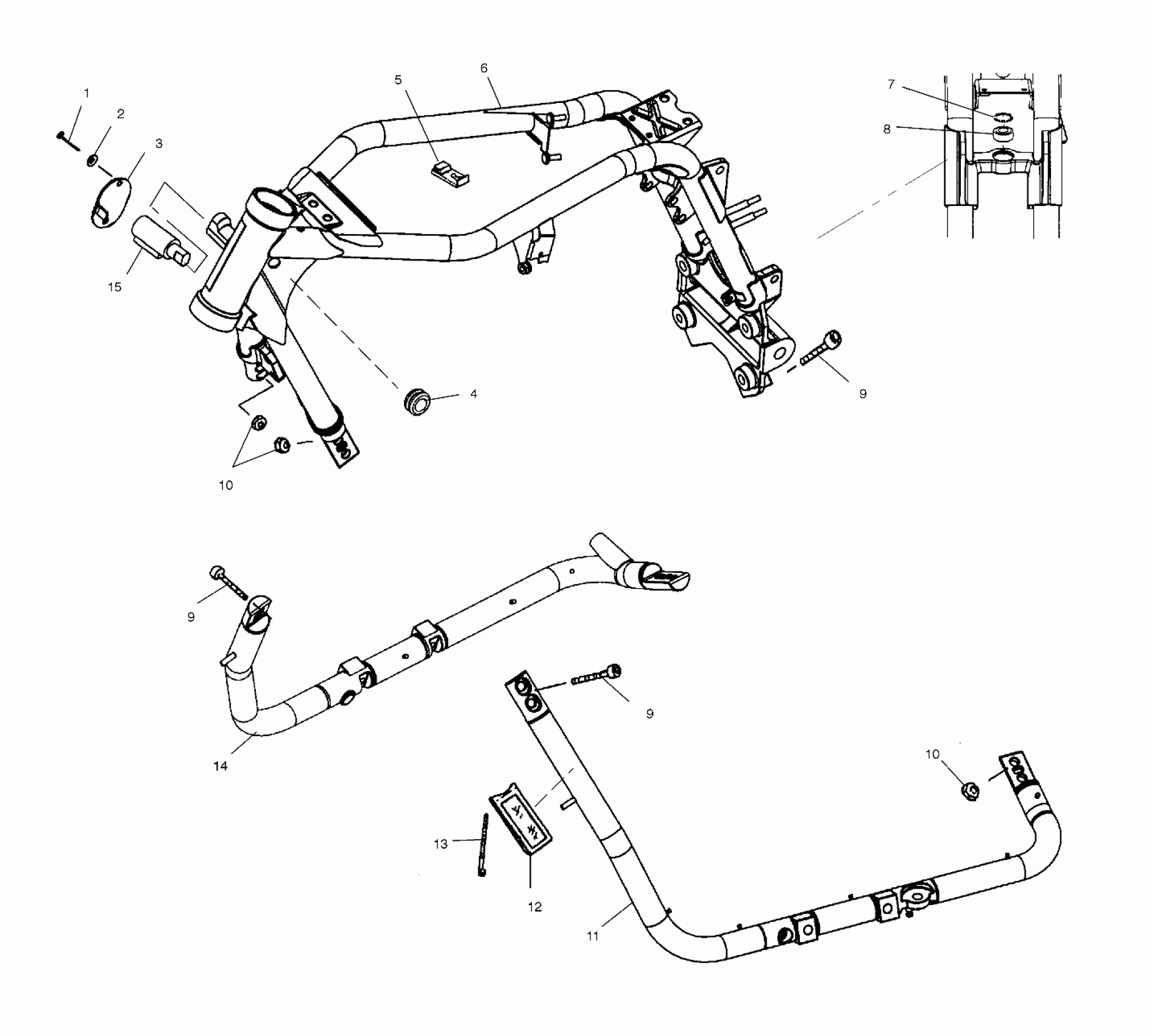

Polaris SPORT CRUISER - V00CS15CC CHASSIS, MAIN FRAME - V00CS15DC (4952625262A005) Diagram

#

Description
Price

1

PIN,KNURLED,SS.

7661027

$3.30

2

WASHER,WAVE,SS

7571637

$0.69

3

CAP,FORK LOCK

5242202

$14.76

4

GROMMET,HEAD CASTING

5411472

$5.79

5

CLIP,POST,FRAME

5433193

Unavailable

6

FRAME MAIN,BLK

1013051-067

Unavailable

7

RING,SNAP,(FOX SP)

7710446

$6.23

8

BEARING,SPHERICAL

3513506

$64.59

9

SCREW

7517358

$5.59

9

SCREW

7517358

$5.59

9

SCREW

7517358

$5.59

10

NUT (10)

7547039

Unavailable

10

NUT (10)

7547039

Unavailable

11

CRADLE,LWR,LH,SC,CA,BLK (Cal.)

1013171-067

$314.27

11

CRADLE,LOWER,LH,SC,BLK

1012925-067

$314.27

12

REFLECTOR ASM,FRONT

2670188

$9.84

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

TUBE,LWR,FRM,CRDL,RH,BLK

1012926-067

$236.99

15

LOCK,FR.FORK Substituted by 4110253

7010085

Unavailable
