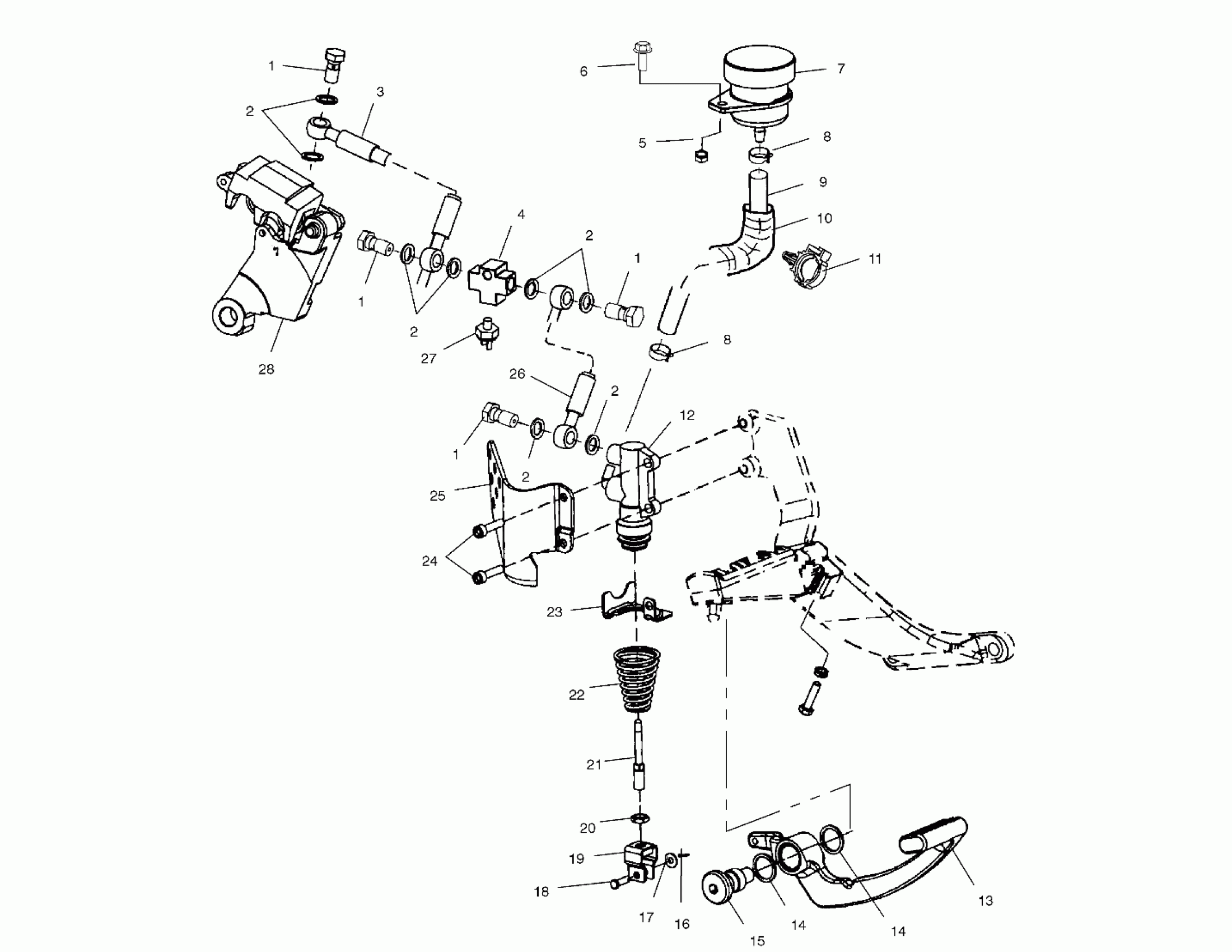

Polaris SPORT CRUISER - V00CS15CC BRAKES, REAR - V00CS15DC (4952625262B004) Diagram

#

Description
Price

1

Bolt, Banjo

1930848

Unavailable

1

Bolt, Banjo

1930848

Unavailable

1

Bolt, Banjo

1930848

Unavailable

1

Bolt, Banjo

1930848

Unavailable

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

3

HOSE, REAR (CAL.)

1930887

Unavailable

3

HOSE, REAR

1910406

$78.70

4

MANIFOLD, BRAKE, REAR

1910266

Unavailable

5

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

6

SCREW

7517704

$7.19

7

Reservoir, Rear Master Cylinder

1930882

Unavailable

8

Clamp, Hose

7080829

Unavailable

8

Clamp, Hose

7080829

Unavailable

9

HOSE, REAR RESERVOIR

8450082

Unavailable

10

TUBING, CONVOLUTED

8360057-20

$2.35

11

DART, HANDLEBAR

5433140

Unavailable

12

MASTER CYLINDER, REAR

1910359

Unavailable

13

ASM., BRAKE LEVER

1012890

Unavailable

13

BUSHING

3514329

$3.22

14

SEAL, SHIFTER/BRAKE

5411621

$4.92

14

SEAL, SHIFTER/BRAKE

5411621

$4.92

15

SCREW, LEVER PIVOT

5132115

$45.87

16

PIN, COTTER

7661073

$0.40

17

WASHER, FLAT

7556071

$4.79

18

PIN, BRAKE CLEVIS

7661016

$4.93

19

CLEVIS, ROD

1012892

Unavailable

20

Nut

7547050

$3.02

21

ROD, BRAKE

5132047

$23.81

22

SPRING, BRAKE PEDAL

7041806

Unavailable

23

BRACKET, BRAKE, SPRING RETAINER

5243551

Unavailable

24

SCREW

7517638

$3.99

25

COVER, REAR MASTER CYLINDER

5244076

$13.10

26

HOSE, REAR MASTER CYLINDER/MANIFOLD

1910358

Unavailable

27

SWITCH, PRESSURE

4110238

Unavailable

28

ASM., REAR CALIPER

1910374

Unavailable

28

Kit, Brake Pad

2201171

Unavailable

28

KIT, BOOT BLEEDER SCREW

2201173

$12.99

28

KIT, REAR CALIPER BOOTS

2201174

Unavailable

28

KIT, PIN RETAINER

2201175

$21.81
