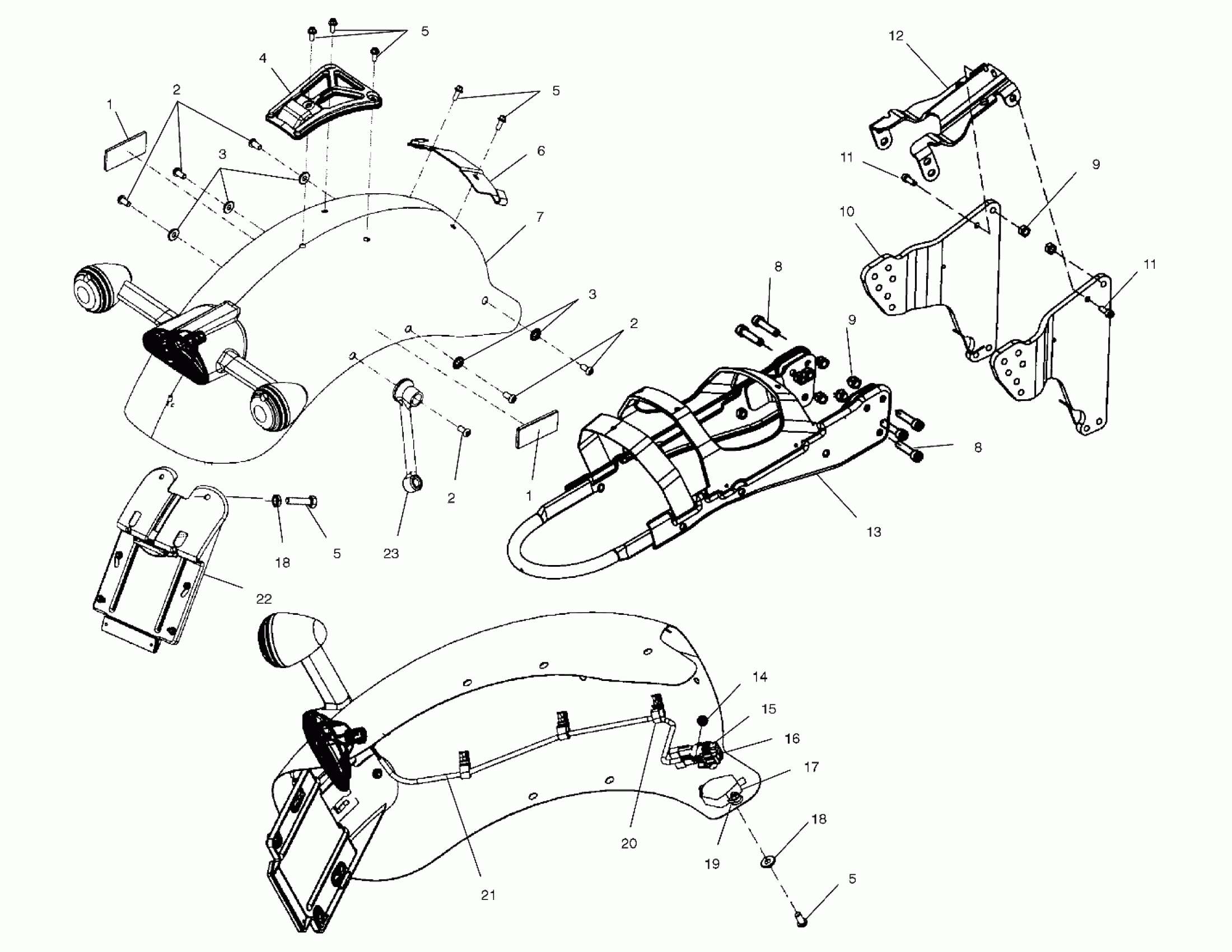

Polaris SPORT CRUISER - V00CS15CC BODY, REAR FENDER and TAILLIGHT MOUNTING - V00CS15DC (4952625262A006) Diagram

#

Description
Price

1

REFLECTOR,SIDE,RED

5432965

Unavailable

1

REFLECTOR,SIDE,RED

5432965

Unavailable

2

SCREW (10)

7517484

$4.79

2

SCREW (10)

7517484

$4.79

2

SCREW (10)

7517484

$4.79

3

BUSHING,R.FENDER

5131943

Unavailable

3

BUSHING,R.FENDER

5131943

Unavailable

4

BRACKET-TANDEM SEAT MTG

5433482

$15.56

5

SCREW,M6X16(10)

7517705

$6.79

5

SCREW,M6X16(10)

7517705

$6.79

5

SCREW,M6X16(10)

7517705

$6.79

5

SCREW,M6X16(10)

7517705

$6.79

6

SUPPORT,HELMET HOOK,REAR [No Longer Available]

5241889

Unavailable

7

FENDER,REAR,SC.CRSR,BLK

1012817-266

$824.99

7

FENDER,REAR,SC,STL GREY

1012817-302

$804.99

7

FENDER,REAR,SC,CHAMP RED

1012817-301

$824.99

8

SCREW,SOCHD,M10X50

7517526

$3.02

8

SCREW,SOCHD,M10X50

7517526

$3.02

9

NUT (10)

7547039

Unavailable

9

NUT (10)

7547039

Unavailable

10

SUBFRAME,FORMED,LH Substituted by 1013149-067

1013149

Unavailable

10

SUBFRAME,FORMED,RH Substituted by 1013150-067

1013150

$130.95

11

SCREW,SOCHD,M8X25

7517524

$4.35

11

SCREW,SOCHD,M8X25

7517524

$4.35

12

COVER,SUBFRAME Substituted by 1012961-067

1012961

Unavailable

13

SUBFRAME,MOD,REAR,BLK

1012953-067

$744.99

14

PLUG,ELECTIRCAL

4010256

$2.62

15

LOCK,CONN,8 PIN,R.FENDER

4010154

$1.35

16

CONNECTOR,8 PIN,R.FENDER

4010153

$13.89

17

LOCK,SEAT (See Electrical Pg. B11, Ref. 3)

-------

Unavailable

18

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

18

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

19

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

20

CLIP,ELECTRICAL

7080737

Unavailable

21

HARNESS,RH,R.TURNSIGNAL

2460692

$23.02

21

HARNESS,LH,R.TURNSIGNAL

2460695

$23.02

22

REFLECTOR,REAR,RED

5432992

Unavailable

22

HSNG,LICPLATE LIGHT,SC

5132233

Unavailable

22

HARNESS,LIC.PLATE,SC

2460774

$13.10

22

BRKT,LICENSE PLATE,SC

5243131

$16.35

22

DART,REFLECTOR,SC

5433708

$2.38

22

BRKT,LIC.PLATE,SC,CAN,BLK (Can.)

5244565-067

$45.24

23

MOUNT, EXHAUST, REAR

5243302-067

$61.90
