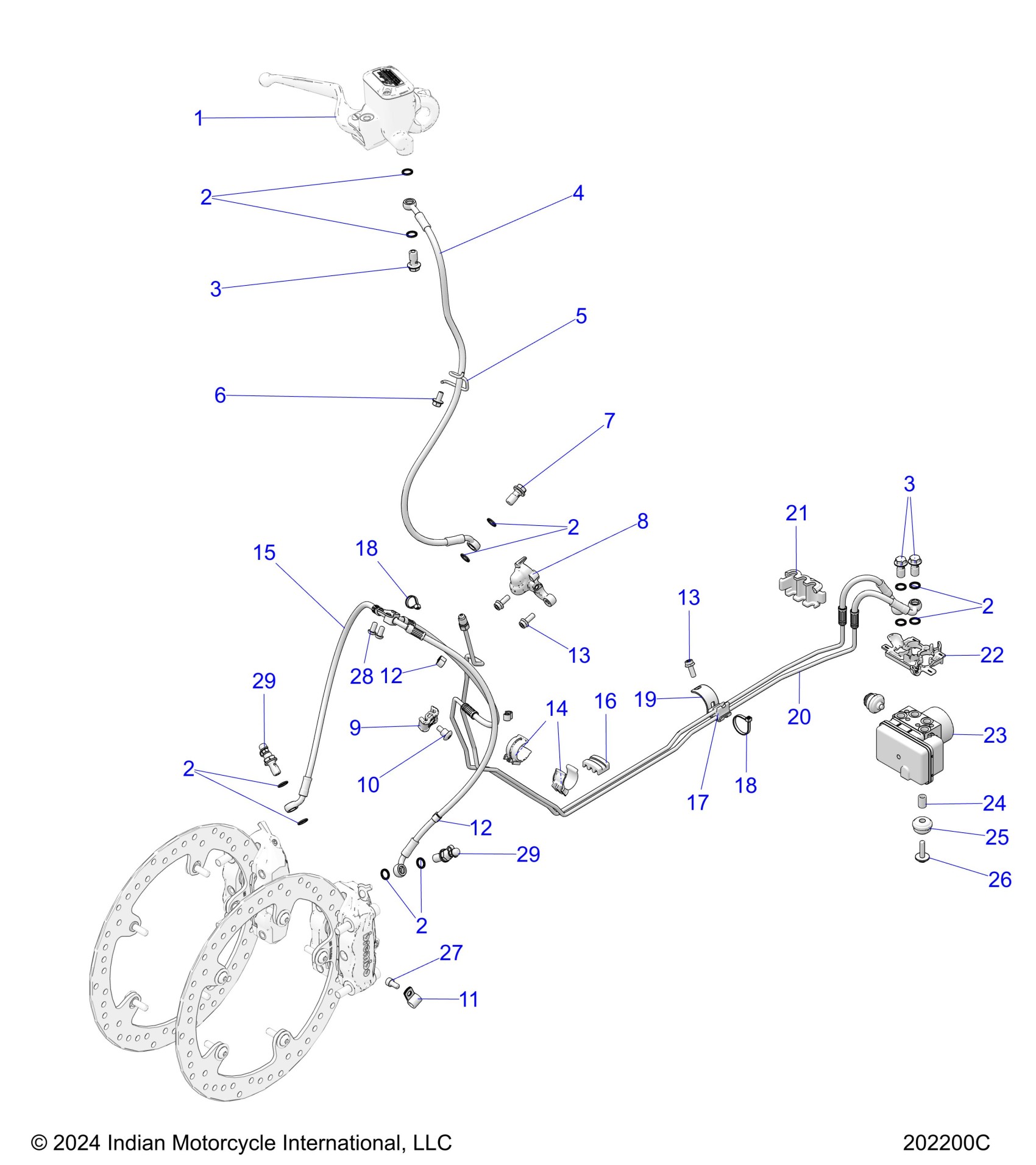

Polaris SPORT CHIEF RT 116 ALL OPTIONS (R01) - N25DTDBHAH/K/V/BH/K/V/CH/K/V/EH/K/V/JH/K/V/MH/K/V/GBHPH/K/V BRAKES, FRONT ASM., W/ABS - N25DTDBH/DTGBH ALL OPTIONS (202200C) Diagram

ASM.-MASTER CYL., FRONT [SEE BRAKES, MASTER CYLINDER, FRONT]

----

Unavailable

WASHER-CRUSH, RIB, M10

1913793

Unavailable

WASHER-CRUSH, RIB, M10

1913793

Unavailable

WASHER-CRUSH, RIB, M10

1913793

Unavailable

WASHER-CRUSH, RIB, M10

1913793

Unavailable

WASHER-CRUSH, RIB, M10

1913793

Unavailable

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

HOSE-BRAKE,HBMC,SHORT

1913624

$64.75

WIREFORM-GUIDE,ROUTING

5342696

$7.27

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

BOLT-BANJO,M10X1.25

1912827

$10.32

MANIFOLD-BRAKE,FRONT

5143074

$67.76

RETAINER-LINE,BRAKE,DOWN

5457188

$3.97

SCREW-M6X1.0X16 SHLD ZPB

7521068

$3.17

CLAMP-REAR BRAKE

7080983

$4.35

CLIP-BRAKE,TWO-WAY

5455212

$3.97

CLIP-BRAKE,TWO-WAY

5455212

$3.97

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

RETAINER-LINE,BRAKE,BOSS

5457189

$6.46

LINE-BRAKE,ABS-FRCAL,DUAL

1914212

$137.60

CLIP, RETENTION

5450640

$23.81

CLIP-RETEN,REAR

5457404

$4.76

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

BRKT-BRKLIN,REAR

5269880

$84.99

LINE-BRAKE,ABS-MANIFOLD

1913623

$129.51

RETAINER,BRKLINE,ABS

5456482

$8.89

BRKT-ORIENTATION,ABS

5458218

$11.32

MODULE-ABS,MP9.3,WET [DEALER INSTALL REQUIRED]

1914288

$849.99

COLLAR-ABS,10 OD,7 ID,15 LONG

5136840

$2.38

GROMMET, MOUNT, ABS

5413711

$3.17

SCREW-HH-M6X1.0X25 8.8 ZPC SPC

7519089

$3.97

SCREW-SH-M6X1.0X12 8.8 ZPB

7517781

$3.17

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

BOLT-BANJO,M10X1.0,BLEEDER

1913088

$29.99

BOLT-BANJO,M10X1.0,BLEEDER

1913088

$29.99
