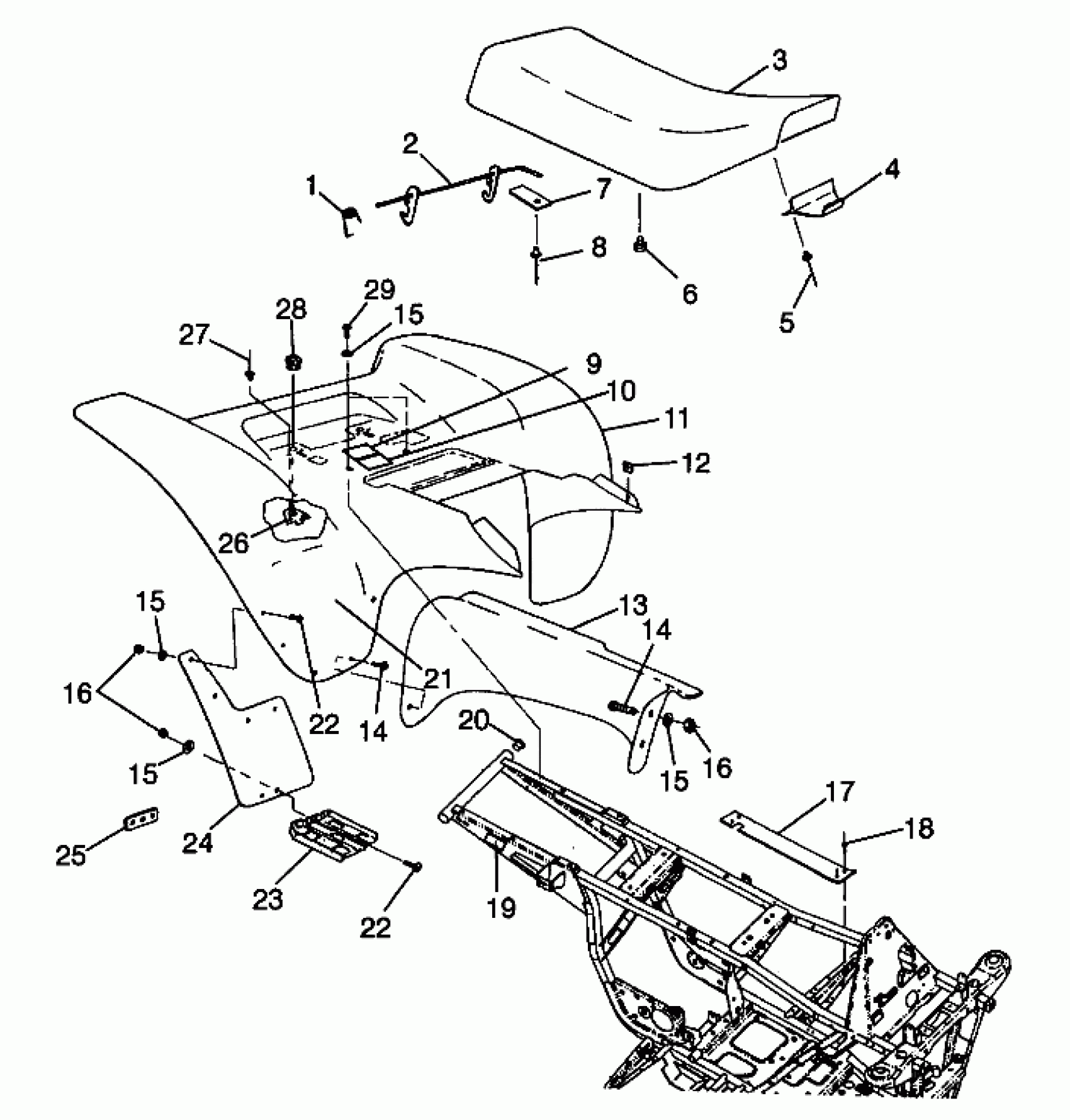

Polaris SPORT 400L - W98BA38C REAR CAB Sport 400L W98BA38C (4947234723A006) Diagram

#

Description
Price

1

SPRING,LATCH,LIGHT

7041607

Unavailable

2

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

3

COVER,SEAT,PUR.VEL. (Purple Velvet)

2681769-194

Unavailable

3

SEAT ASM,PUR.VLT. (Purple Velvet)

2682358-194

Unavailable

4

TONGUE,SEAT

5431986

$10.51

5

RIVET(50)

7621479

$1.98

6

Bumper, Rubber

5410414

$3.17

7

BRACKET,LEVER RETAINER

5211033

$34.99

8

BLIND RIVET(50)

7621403

$1.19

9

DECAL,CARB.INFO.

7073761

Unavailable

10

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

11

CAB,REAR,SCR.YEL,GENIII (Yellow)

5432606-216

Unavailable

12

NUT, SPEED(10)

7670057

$1.19

13

FOIL,FOAM

5811113

Unavailable

13

SHIELD,MUFFLER,BLK. Substituted by 2632274

5431869-070

Unavailable

14

Screw

7517264

$3.97

14

Screw

7517264

$3.97

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

16

NUT-LOCK(10)

7542122

$1.19

16

NUT-LOCK(10)

7542122

$1.19

17

GUARD,CLUTCH,OUTER

5222860-067

$7.06

18

RIVET,INTERLOCK,B(50)

7661638

$1.19

19

REFLECTOR ASM,RED

2670133

$5.71

20

PLUG,ENDCAP(10)

5432047

$4.92

21

Foil, Rear Cab

5810957

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

23

Footpad (See Pg. A7, Ref. 25)

----

Unavailable

24

MUDFLAP,LH,REAR

5850122

$13.89

24

MUDFLAP,RH,REAR

5850123

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

26

BRKT,R.HOLDDOWN

5220880

Unavailable

27

RIVET(50)

7621472

$1.49

28

Grommet

5411042

$6.35

29

BOLT(10)

7512232

$1.19
