Description

Price

-

GEARCASE ASM. (Incl. 1-46)

1341174

Unavailable

1

BOLT,(10)

7512265

$3.99

2

WASHER(10)

7555827

$3.99

3

DAMPENER,CARBURETOR

5432082

Unavailable

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

STUD

3233025

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

7

Screw

3233026

$6.46

8

GEARCASE, LH.

3233095

$298.99

9

PIPE, KNOCK

3233021

Unavailable

10

FORK,SHIFT,HR

3233231

Unavailable

11

PLUG

3233178

Unavailable

12

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

13

O-RING

3233179

Unavailable

14

WASHER

3233119

$7.79

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

Washer

3233054

$6.46

18

Nut

3233055

Unavailable

18

Nut

3233055

Unavailable

19

PIN

3233031

$32.11

19

PIN

3233031

$32.11

20

SCREW Substituted by 3233747

3233033

Unavailable

21

BRACKET

3233030

$21.43

22

SPRING

3233233

Unavailable

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

WASHER

3233007

Unavailable

25

DOG,FWD.ENGAGEMENT

3233237

Unavailable

26

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

27

Washer

3233105

$7.19

28

SPKT,19T,FWD.

3233236

Unavailable

29

BEARING, NEEDLE

3233103

$31.99

30

GEAR,REVERSE

3233235

Unavailable

31

SHAFT, INPUT

3233181

$214.29

32

DOG,REV.ENGAGEMENT

3233234

Unavailable

33

WASHER

3233099

Unavailable

34

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BUSHING,SPEEDO.DRIVE

5020741

$9.03

36

BEARING

3233020

$47.99

36

BEARING

3233020

$47.99

37

VALVE,SHOCK

1500032

$4.95

38

GEAR, 65T

3233109

Unavailable

39

SPROCKET, 51T

3233121

Unavailable

40

SHAFT, OUTPUT

3233112

Unavailable

41

CHAIN,SILENT,60P (11W)

3233111

$79.19

42

GEARCASE,RH

3233238

Unavailable

43

Washer

3233035

Unavailable

44

Plug

3233448

$23.99

45

Vent

3233037

Unavailable

46

Dipstick

3233478

$23.99

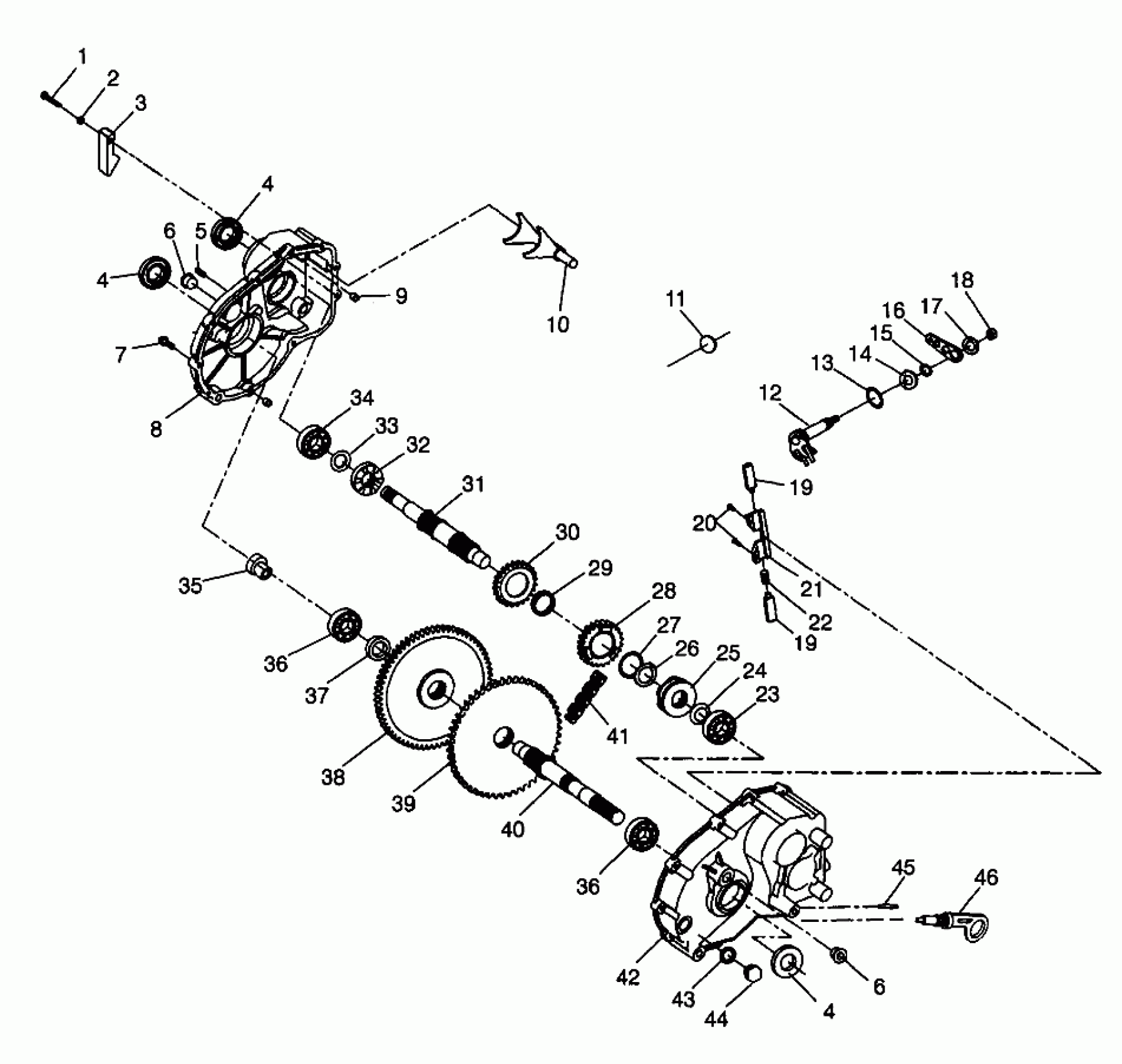

Polaris SPORT 400L - W98BA38C GEARCASE Sport 400L W98BA38C (4947234723C009) Diagram

GEARCASE ASM. (Incl. 1-46)

BOLT,(10)

WASHER(10)

DAMPENER,CARBURETOR

Seal

Seal

Seal

STUD

BUSHING,PIVOT

BUSHING,PIVOT

Screw

GEARCASE, LH.

PIPE, KNOCK

FORK,SHIFT,HR

PLUG

SHAFT,SHIFT,WELD/ASM.

O-RING

WASHER

RING,RETAINING BASIC,EXTERNAL 0.75

Washer

Nut

Nut

PIN

PIN

SCREW Substituted by 3233747

BRACKET

SPRING

BEARING-BALL,6307 C3,35X80X21

WASHER

DOG,FWD.ENGAGEMENT

RING,RETAINING BASIC,EXTERNAL 0.984

Washer

SPKT,19T,FWD.

BEARING, NEEDLE

GEAR,REVERSE

SHAFT, INPUT

DOG,REV.ENGAGEMENT

WASHER

BEARING, BALL, 6205 C3 25X52X15

BUSHING,SPEEDO.DRIVE

BEARING

BEARING

VALVE,SHOCK

GEAR, 65T

SPROCKET, 51T

SHAFT, OUTPUT

CHAIN,SILENT,60P (11W)

GEARCASE,RH

Washer

Plug

Vent

Dipstick
