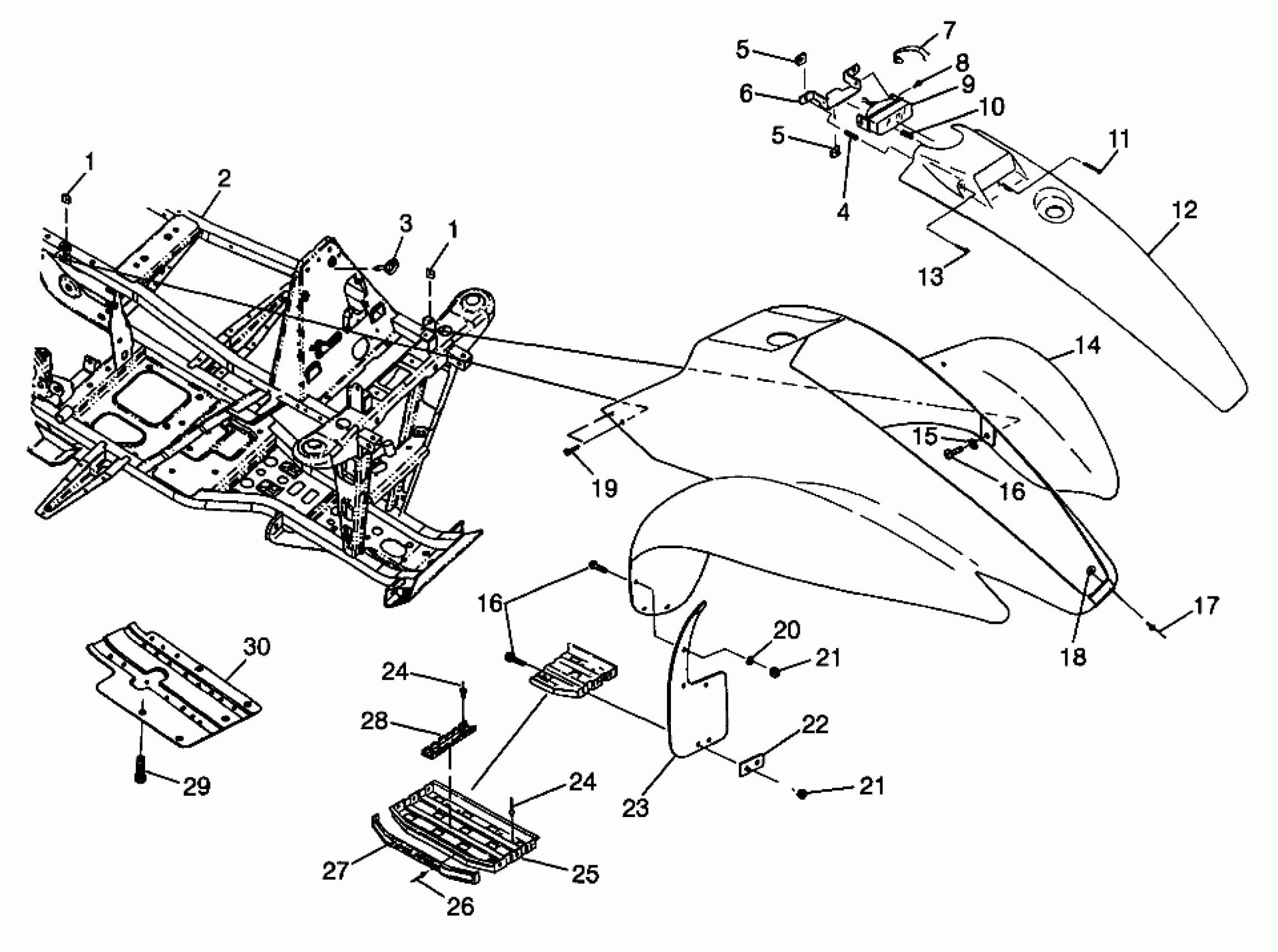

Polaris SPORT 400L - W98BA38C FRONT CAB Sport 400L W98BA38C (4947234723A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

FRAME,MAIN,SPORT,BLK

1040538-067

$766.65

3

CLAMP,WIRE ROUTING(10)

7080409

$2.39

4

SPRING,ADJ,(.9 IN )

4032093

$1.49

5

CLIP,RET.PALNUT Substituted by 2201028

7670095

Unavailable

5

CLIP,RET.PALNUT Substituted by 2201028

7670095

Unavailable

6

BRKT,H/L.MT,BLK Substituted by 2201028

5241436-067

$30.88

7

BULB,H/L,(BLZR/SPORT)

4030056

$24.99

8

SCREW(10)

7512084

$1.49

9

HEADLIGHT,SINGLE BEAM Substituted by 4010206 (Incl. 7)

4030053

Unavailable

10

SPRING,ADJ,(2.5 IN)

4032094

Unavailable

11

Screw

7511886

$2.63

12

COVER,FRONT,PUR.VEL. (Purple Velvet)

5432179-194

Unavailable

13

SCREW,(10)

7511887

$4.79

14

CAB ASM,FR,SCR.YEL. Substituted by 2631988-216 (Yellow) (w/Warning Decals)

2631925-216

Unavailable

15

WASHER(10) Substituted by 7558301

7555776

Unavailable

16

BOLT, BLACK(10)

7512282

$1.49

16

BOLT, BLACK(10)

7512282

$1.49

17

RIVET [No Longer Available]

7621471

Unavailable

18

WASHER, FLAT(10)

7558201

$5.79

19

Screw

7517264

$3.99

20

WASHER, FLAT(10)

7555859

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

22

BRKT,RH MUD FLAP (2 Hole)

5211020-067

Unavailable

23

MUDFLAP,LH,FRONT

5850113

$18.59

23

MUDFLAP,RH,FRONT

5850114

$13.99

24

RIVET(50)

7621472

$1.49

24

RIVET(50)

7621472

$1.49

25

FOOTPAD,LH,ALUM,HYBRID,BLK.

1040691-067

$70.39

25

FOOTPAD,RH,ALUM,HYBRID,BLK.

1040692-067

Unavailable

26

RIVET,(50)

7661825

$1.49

27

Trim, Footrest

5431484

Unavailable

28

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

29

BOLT(10)

7512232

$1.49

30

GUARD,ROCK,BLK

5242016-067

Unavailable
