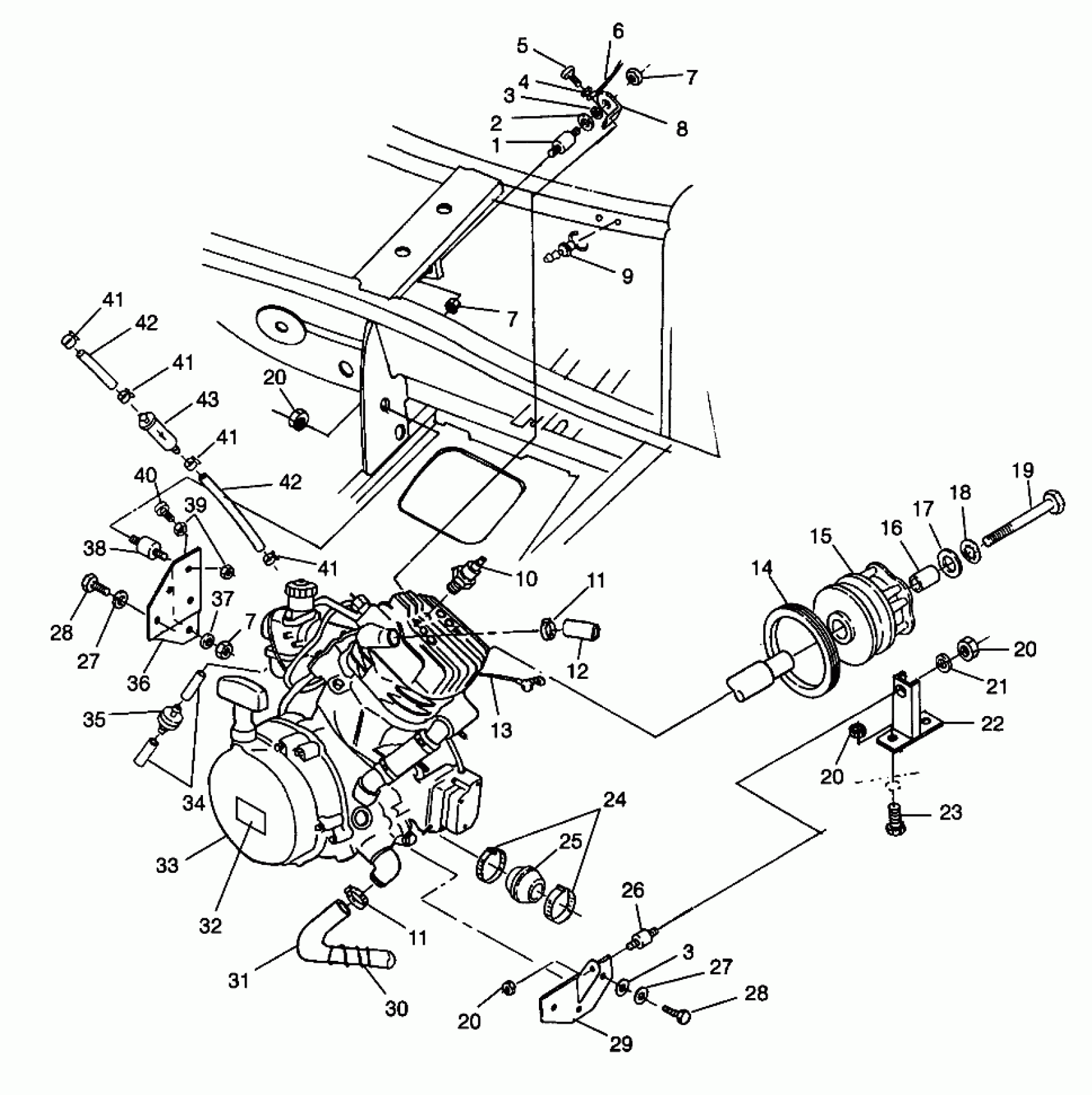

Polaris SPORT 400L - W98BA38C ENGINE MOUNTING Sport 400L W98BA38C (4947234723A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

WASHER(10)

7555823

$3.99

3

WASHER(10)

7555823

$3.99

4

LOCK WASHER(10)

7552901

$1.49

5

BOLT(10)

7515321

$1.49

6

CABLE,GND-ENGINE

4010132

Unavailable

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

7

NUT LOCK(10)

7542411

$3.19

8

MOUNT,ENG,TOP

5241801-067

Unavailable

9

FITTING,VENT,1/8"

7052192

Unavailable

10

SPARKPLUG (10)

3070156

$3.99

11

CLAMP,HOSE,(10)

7080614

$7.19

11

CLAMP,HOSE,(10)

7080614

$7.19

12

HOSE,ENG,UPPER

5410570

$44.51

13

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

14

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

15

Asm., Drive Clutch, Basic ATV-07 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

BOLT(10)

7512566

$30.79

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

22

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

23

BOLT(10)

7512457

$3.99

24

CLAMP, NARROW BAND(10)

7080511

$4.79

25

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

26

MOUNT,MOTOR

3110026

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

27

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

28

SCREW(10)

7512490

$3.99

28

SCREW(10)

7512490

$3.99

29

MOUNT,ENGINE

1040231-067

Unavailable

30

SPRING,HOSE RETAINER

7041079

$4.95

31

HOSE,LOWER ENGINE

5411173

$91.99

32

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

33

ENG.(S.B.)EC38PLE-O7 Substituted by 1211625 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization r

3085547

Unavailable

34

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

35

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

36

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

37

WASHER(10)

7555801

$3.99

38

MOUNT,RUBBER,ENG.

3110042

Unavailable

39

NUT, JAM(10)

7542432

$3.99

40

MT,TORQUE STOP,RUBBER

3110048

$7.43

41

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

41

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

41

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

41

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

42

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

42

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

43

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
