CRANKCASE and CYLINDER Sport 400L W98BA38C (4947234723C011)

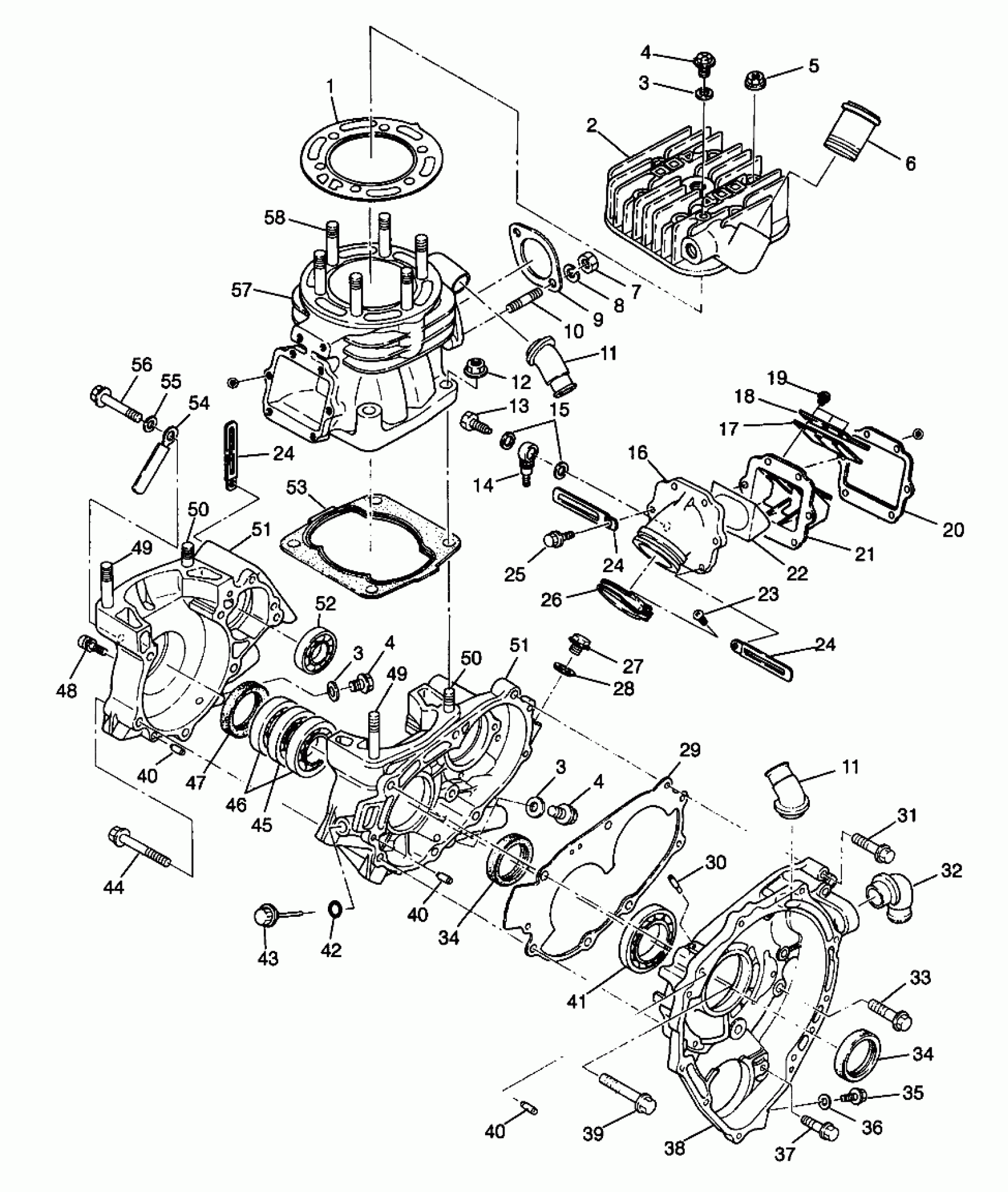

Polaris SPORT 400L - W98BA38C CRANKCASE and CYLINDER Sport 400L W98BA38C (4947234723C011) Diagram
#
1
GASKET,HEAD (Head)
3084731
Unavailable
2
HEAD, CYLINDER Substituted by 3086755 (Incl. 6)
3084730
Unavailable
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
4
PLUG, DRAIN
3083767
Unavailable
4
PLUG, DRAIN
3083767
Unavailable
4
PLUG, DRAIN
3083767
Unavailable
5
NUT-FLANGE(10)
3082910
$2.39
6
PIPE, WATER (Water)
3083452
Unavailable
7
NUT(10)
3080285
Unavailable
8
WASHER LOCK ,(10)
3080530
$3.19
9
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos
3084439
Unavailable
10
STUD,(10)
3085326
Unavailable
11
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
11
PIPE, 1 ELBOW Substituted by 3086746 (Elbow)
3084129
Unavailable
12
NUT-FLANGE(10)
3082911
$1.99
13
BOLT-BANJO
3083137
Unavailable
14
VALVE, CHECK
3083894
Unavailable
15
WASHER(10) Substituted by 7555998
3083138
Unavailable
17
VALVE, REED(10)
3240064
Unavailable
18
Stopper
3240065
Unavailable
18
Stopper
3240065
Unavailable
19
SCREW&WASHER Substituted by 3084565
3240066
Unavailable
20
GASKET, REED VALVE,(10) (Reed Valve)
3084148
Unavailable
21
VALVE ASM., REED (Incl. 17-19)
3084147
Unavailable
22
STUFFER,(REED VALVE ASM.)
3240164
$9.91
23
SCREW,(10)
3081497
$2.39
24
Clamp
3083590
$3.99
24
Clamp
3083590
$3.99
24
Clamp
3083590
$3.99
25
BOLT, FLANGE Substituted by 3086759 (Adapter)
3084145
Unavailable
26
BAND ASM. (Adapter) (Incl. 23)
3084144
Unavailable
27
PLUG Substituted by 3086749
3083453
Unavailable
28
GASKET
3082956
$4.84
29
GASKET,(CASE 3) Substituted by 3086748 (Case 3)
3084727
Unavailable
30
PIPE, BREATHER (Breather)
3084128
Unavailable
31
BOLT, FLANGE Substituted by 3086751
3084177
Unavailable
32
PIPE, 2 ELBOW Substituted by 3086747 (Elbow)
3084130
Unavailable
33
BOLT, FLANGE ,(10)
3084435
Unavailable
34
Seal, Oil
3084120
Unavailable
34
Seal, Oil
3084120
Unavailable
35
PLUG
3085152
Unavailable
36
GASKET,ALUMINUM(10)
3083482
$3.22
36
GASKET,ALUMINUM(10)
3083482
$3.22
37
Bolt, Flange
3084126
Unavailable
39
Bolt, Flange
3084134
Unavailable
40
PIN, DOWEL Substituted by 3086838
3080103
$7.14
40
PIN, DOWEL Substituted by 3086838
3080103
$7.14
41
Bearing, Ball
3084131
Unavailable
42
O-Ring
3084733
Unavailable
43
GAUGE, OIL Substituted by 3085517 (Incl. 42)
3084732
Unavailable
44
BOLT, FLANGE Substituted by 3086742
3084125
Unavailable
45
Bearing, Ball
3084775
$43.99
46
Bearing, Ball
3084121
$39.99
46
Bearing, Ball
3084121
$39.99
47
Seal, Oil
3084725
Unavailable
48
SCREW & WASHER(10)
3084205
$3.99
49
Stud
3084118
Unavailable
49
Stud
3084118
Unavailable
50
Stud
3084119
$9.59
50
Stud
3084119
$9.59
51
CRANKCASE ASM. Substituted by 3086740 (Incl. 3, 4, 34, 40, 44-47, 49-52, 56)
3084774
Unavailable
51
CRANKCASE ASM. Substituted by 3086740 (Incl. 3, 4, 34, 40, 44-47, 49-52, 56)
3084774
Unavailable
52
Bearing, Ball
3084123
Unavailable
53
GASKET,CYLINDER
3084729
$48.56
54
Clamp
3083384
Unavailable
55
WASHER(10)
3080142
$3.99
56
Bolt, Flange
3084124
$6.23
57
CYLINDER Substituted by 3086753 (Incl. 10, 11, 58)
3085276
Unavailable
58
Stud
3084138
Unavailable
