Description

Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LIQ.COOLED

4170009

Unavailable

4

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

5

VALVE,DRAIN COCK

7052181

Unavailable

6

Spacer, Mount

5020572

$8.79

7

Mount, Rubber

3110032

$7.99

8

Hose, Upper Engine (See Pg. A11, Ref. 12)

-------

Unavailable

9

Hose, Lower Engine (See Pg. A11, Ref. 31)

-------

Unavailable

10

CLAMP,HOSE,(10)

7080614

$7.19

11

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

12

SWITCH,THERMAL,FAN,L/C

4110226

Unavailable

13

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

14

RADIATOR,"U"FLOW

1240015

Unavailable

15

COVER,RADIATOR,W/MESH

5431610

Unavailable

16

O RING

5410607

$5.99

17

WASHER(10)

7552605

$5.27

18

SCREW(10)

7512113

$3.99

19

NUT

7542154

Unavailable

20

BLADE, FAN

5240822

$57.59

21

SPACER

5333457

Unavailable

22

SCREW(10)

7511875

$4.79

23

BOLT(10)

7512232

$1.49

24

WASHER, FLAT(10)

7558201

$5.79

24

WASHER, FLAT(10)

7558201

$5.79

25

Nut

7547004

$4.79

25

Nut

7547004

$4.79

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

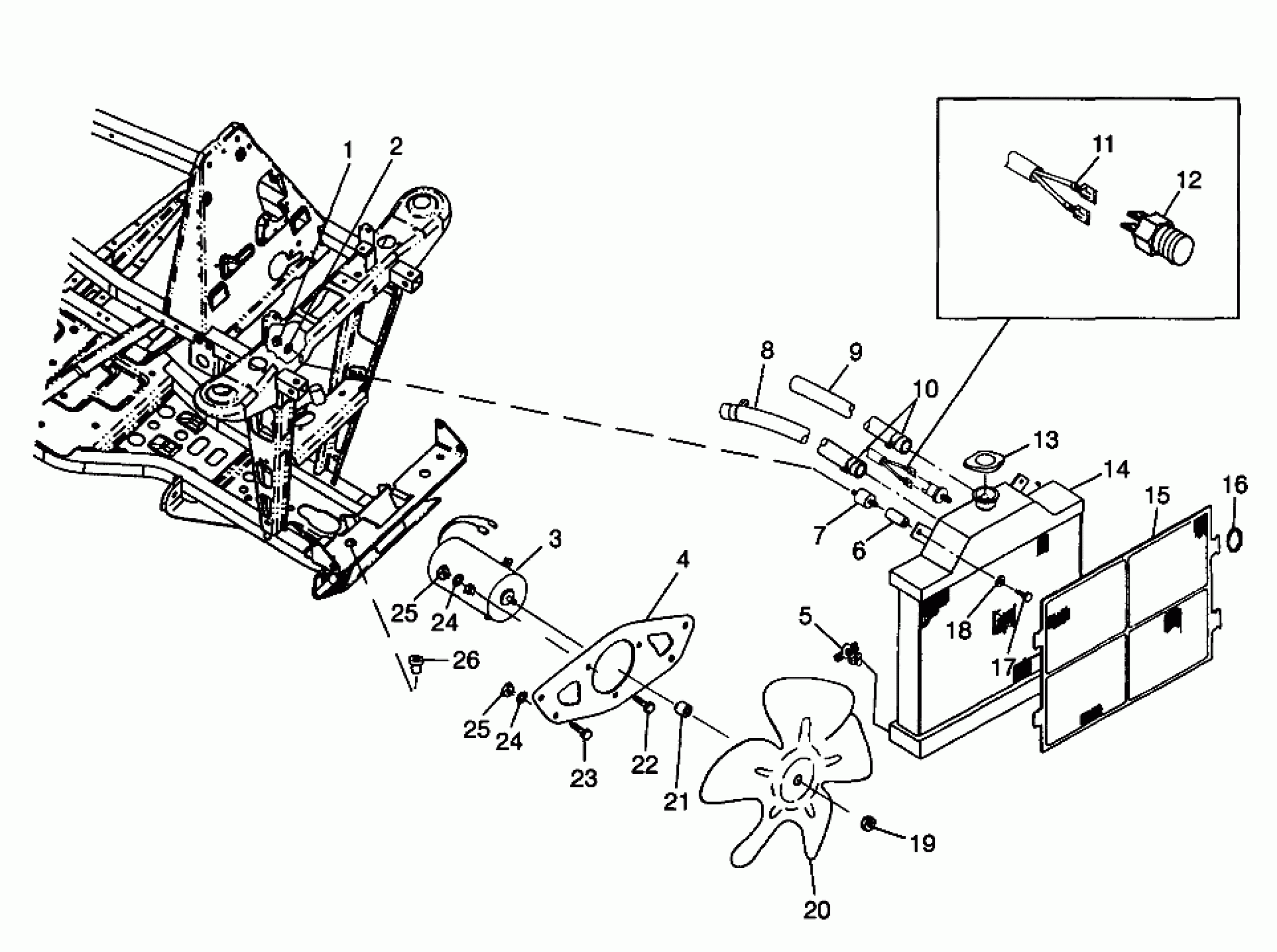

Polaris SPORT 400L - W98BA38C COOLING SYSTEM Sport 400L W98BA38C (4947234723C004) Diagram

NUT-LOCK(10)

WASHER(10)

MOTOR,FAN,LIQ.COOLED

BRKT.COOL.FAN,BLK

VALVE,DRAIN COCK

Spacer, Mount

Mount, Rubber

Hose, Upper Engine (See Pg. A11, Ref. 12)

Hose, Lower Engine (See Pg. A11, Ref. 31)

CLAMP,HOSE,(10)

HARNESS,FAN/THERM.SWITCH

SWITCH,THERMAL,FAN,L/C

CAP, RADIATOR Substituted by 2511270

RADIATOR,"U"FLOW

COVER,RADIATOR,W/MESH

O RING

WASHER(10)

SCREW(10)

NUT

BLADE, FAN

SPACER

SCREW(10)

BOLT(10)

WASHER, FLAT(10)

WASHER, FLAT(10)

Nut

Nut

BUSHING-MOUNT,LOWER RADIATOR
