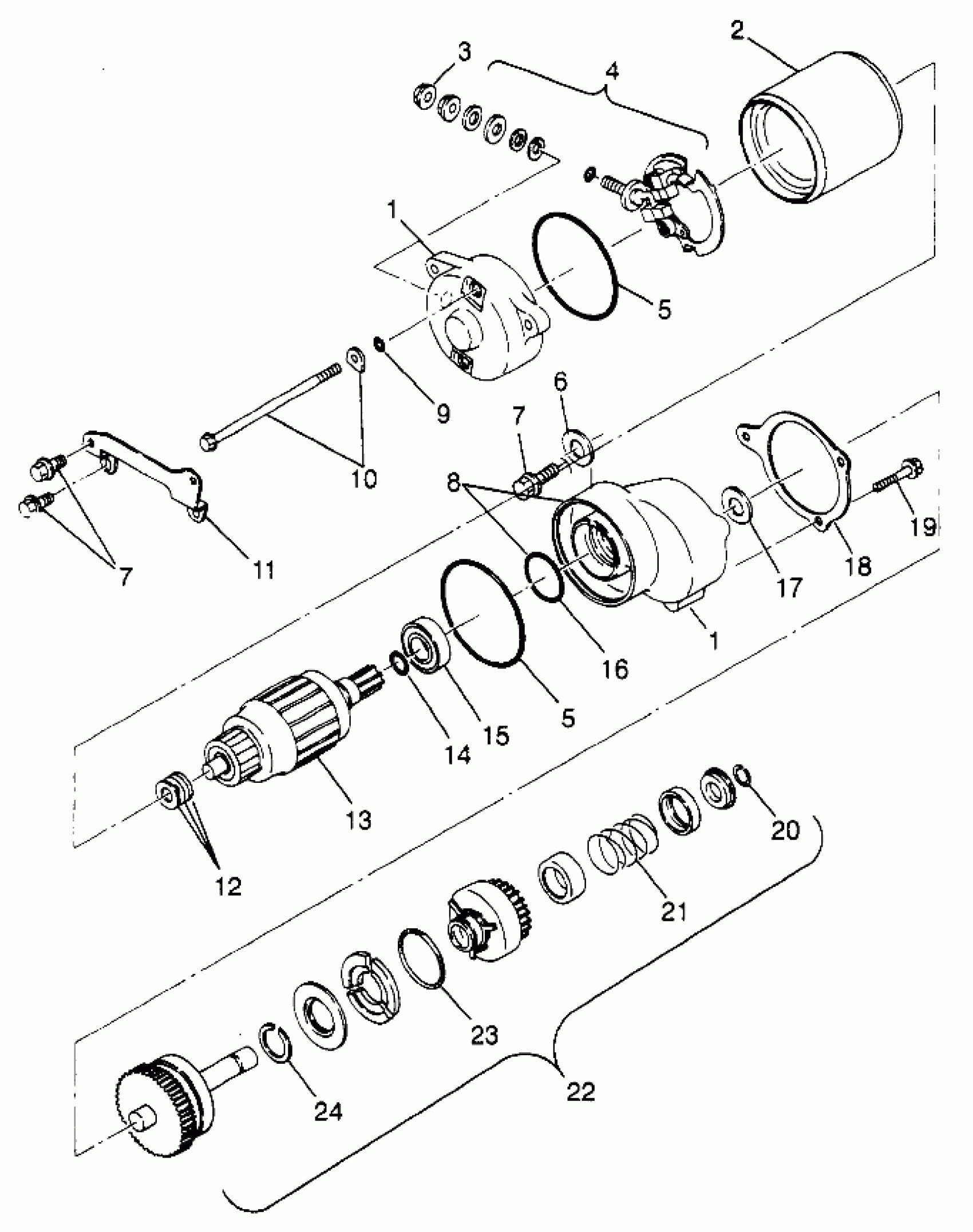

Polaris SPORT 400L - W97BA38C STARTING MOTOR (SPORT) Sport 400L W97BA38C (4940124012D008) Diagram

#

Description
Price

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

2

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5, 8-10, 12-17, 20-24)

3085392

Unavailable

2

STARTER MOTOR ASM. * (Incl. 1, 3-5, 8-10, 12-16)

3085393

Unavailable

3

NUT, FLANGE(10)

3083649

$3.99

4

BRUSH,COMPL.2-POLE *

3084406

Unavailable

5

RING, RUBBER

3084405

Unavailable

5

RING, RUBBER

3084405

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

COVER, FRONT (Incl. 16)

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

BRACKET Substituted by 3086780

3084214

Unavailable

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14, 15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

18

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

19

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 17, 20-24)

3085394

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59
