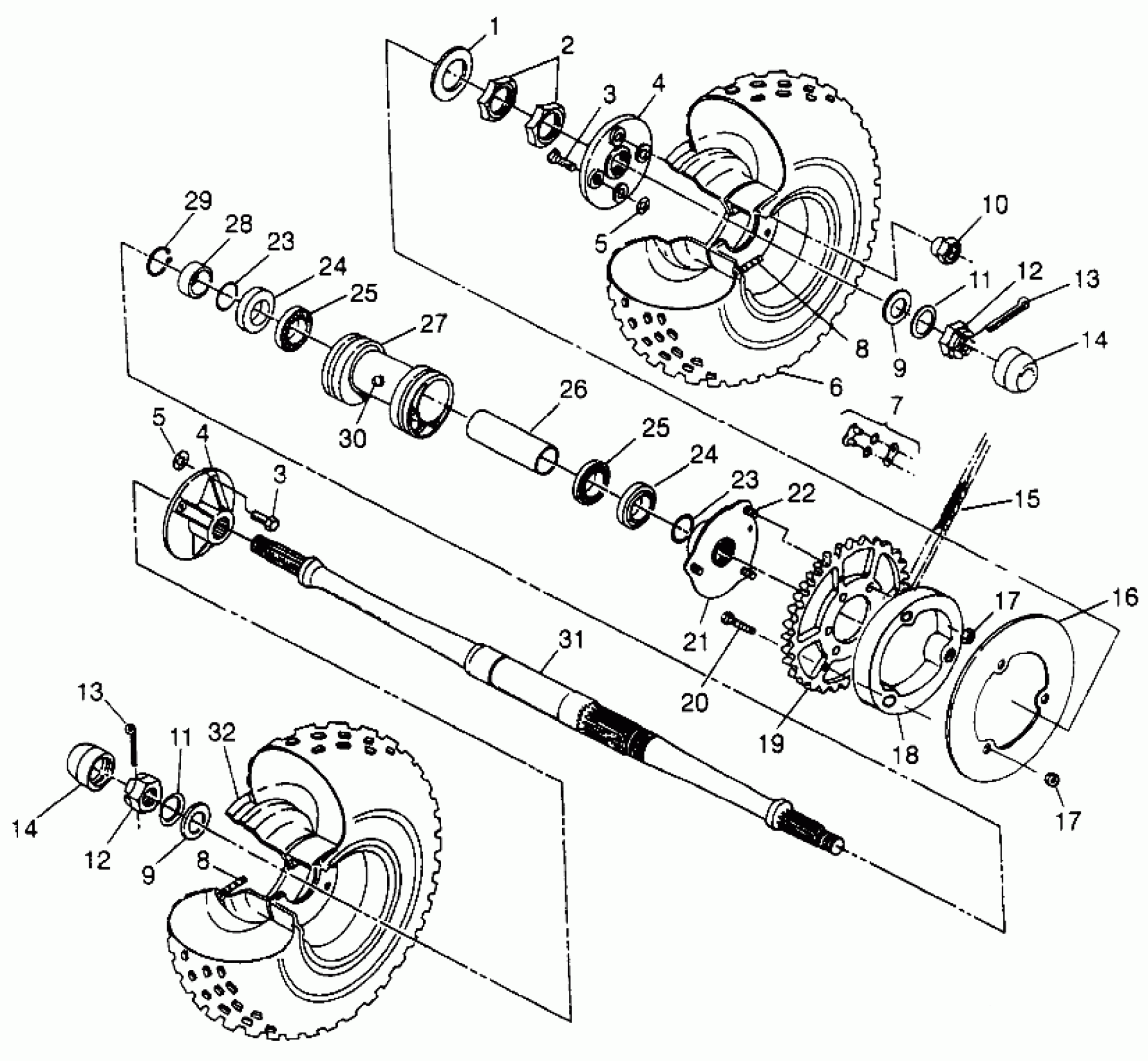

Polaris SPORT 400L - W97BA38C REAR WHEEL DRIVE Sport 400L W97BA38C and Trail Blazer W97BA25C (4940124012C003) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

KIT, MACH.HUB

2200341

$93.08

4

KIT, MACH.HUB

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

Unavailable

5

PUSHNUT, BOLT(10)

7670081

Unavailable

6

TIRE,REAR,(4X6) (22X11X10)

5410539

Unavailable

7

CONNECTOR LINK,CHAIN

3225026

$32.37

8

VALVE-RIM

1525017

$6.46

8

VALVE-RIM

1525017

$6.46

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.94

11

WASHER, CONE(10)

7555796

$7.94

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.76

13

PIN, COTTER(10)

7661404

$4.76

14

DUSTCOVER, HUB

5411164

$28.32

14

DUSTCOVER, HUB

5411164

$28.32

15

CHAIN,88P,(520 O-RING) (Trail Blazer)

3224056-088

$145.70

15

CHAIN, 84P (Sport)

3224056-084

$145.70

16

GUARD,SPKT,42T (Trail Blazer)

5211618-067

Unavailable

16

GUARD,SPKT,34T (Sport)

5211617-067

Unavailable

17

NUT-LOCK(10)

7542439

$1.19

17

NUT-LOCK(10)

7542439

$1.19

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET,34T,(ATV) (Sport)

3222068

$109.99

19

SPROCKET,42T,(ATV) (Trail Blazer)

3222070

Unavailable

20

BOLT(10)

7515540

$4.76

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.19

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

25

Bearing, Ball

3515501

$27.78

25

Bearing, Ball

3515501

$27.78

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

Unavailable

29

RING, SNAP(10)

7710405

$4.76

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

31

AXLE, REAR (Trail Blazer)

5020789

Unavailable

31

AXLE,REAR,HVY. (Sport)

5020790

$349.99

32

RIM,REAR,WHITE

1520183-133

Unavailable
