Description

Price

-

GEARCASE, PRD. (Incl. 4-46) (Trail Blazer)

1341161

Unavailable

-

GEARCASE ASM. (Incl. 1-46) (Sport)

1341174

Unavailable

1

BOLT,(10) (Sport)

7512265

$3.99

2

WASHER(10) (Sport)

7555827

$3.99

3

DAMPENER,CARBURETOR (Sport)

5432082

Unavailable

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

STUD

3233025

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

6

BUSHING,PIVOT

3233024

Unavailable

7

SCREW (Sport)

3233026

$6.46

8

GEARCASE, LH.

3233095

$298.99

9

PIPE, KNOCK

3233021

Unavailable

10

FORK,SHIFT,HR

3233231

Unavailable

11

PLUG

3233178

Unavailable

12

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

13

O-RING

3233179

Unavailable

14

WASHER

3233119

$7.79

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

BELLCRANK, HI/REV

3233155

Unavailable

17

Washer

3233054

$6.46

18

Nut

3233055

Unavailable

19

PIN

3233031

$32.11

19

PIN

3233031

$32.11

20

SCREW Substituted by 3233747

3233033

Unavailable

21

BRACKET

3233030

$21.43

22

SPRING

3233233

Unavailable

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

WASHER

3233007

Unavailable

25

DOG,FWD.ENGAGE. (Blazer)

3233184

Unavailable

25

DOG,FWD.ENGAGEMENT (Sport)

3233237

Unavailable

26

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

27

Washer

3233105

$7.19

28

SPKT,19T,FWD. (Blazer)

3233242

Unavailable

28

SPKT,19T,FWD. (Sport)

3233236

Unavailable

29

BEARING, NEEDLE

3233103

$31.99

30

GEAR,REVERSE,19T (Blazer)

3233241

$217.49

30

GEAR,REVERSE (Sport)

3233235

Unavailable

31

SHAFT, INPUT

3233181

$214.29

32

DOG,REV.ENGAGE. (Blazer)

3233180

Unavailable

32

DOG,REV.ENGAGEMENT (Sport)

3233234

Unavailable

33

WASHER

3233099

Unavailable

34

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BUSHING,SPEEDO.DRIVE

5020741

$9.03

36

BEARING

3233020

$47.99

36

BEARING

3233020

$47.99

37

VALVE,SHOCK

1500032

$4.95

38

GEAR, 65T

3233109

Unavailable

39

SPROCKET, 51T

3233121

Unavailable

40

SHAFT, OUTPUT

3233112

Unavailable

41

CHAIN,SILENT,60P (11W)

3233111

$79.19

42

GEARCASE,RH

3233238

Unavailable

43

Washer

3233035

Unavailable

44

Plug

3233448

$23.99

45

Vent

3233037

Unavailable

46

DIPSTICK Substituted by 3233478

3233115

$24.27

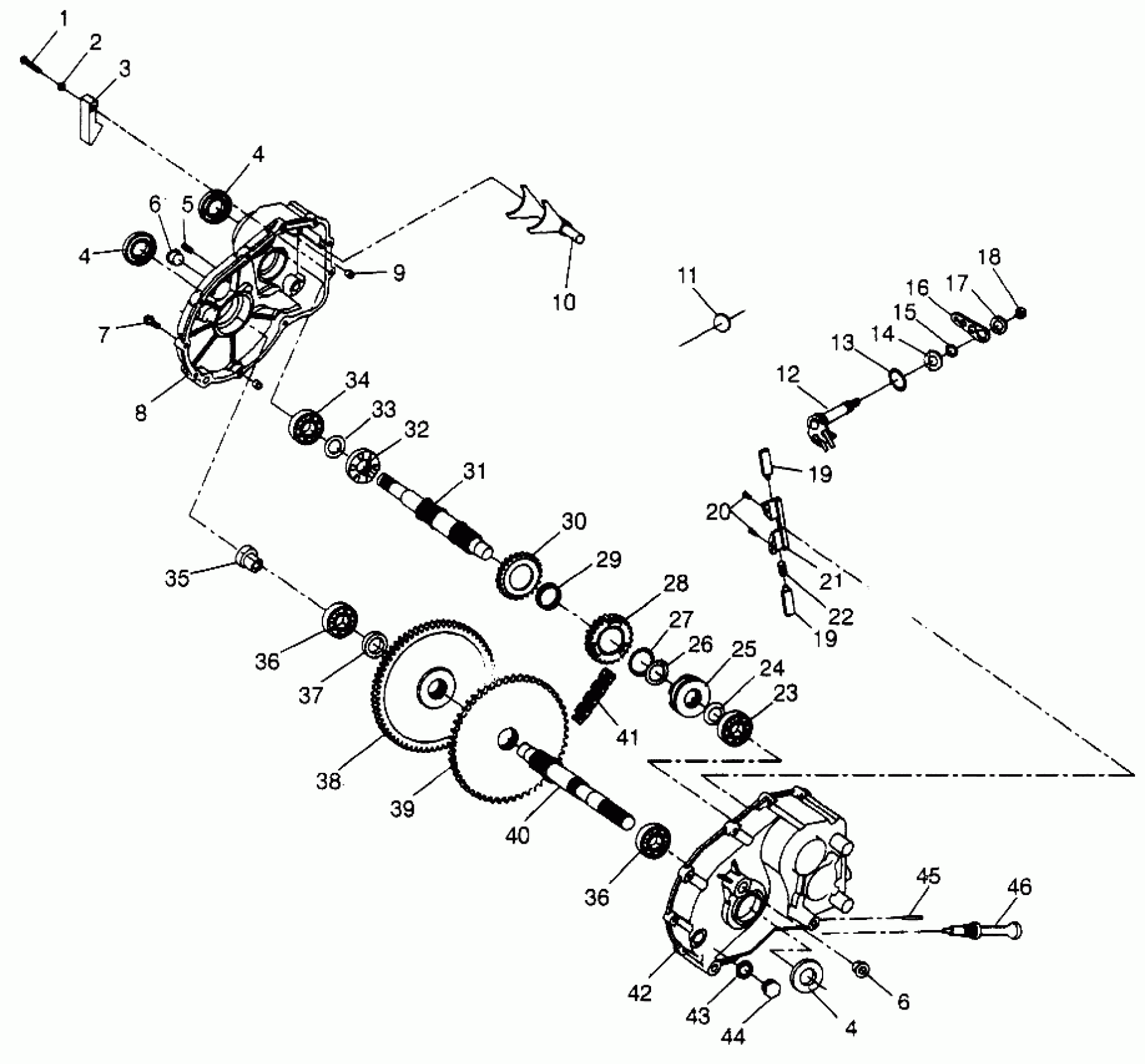

Polaris SPORT 400L - W97BA38C GEARCASE Sport 400L W97BA38C and Trail Blazer W97BA25C (4940124012C009) Diagram

GEARCASE, PRD. (Incl. 4-46) (Trail Blazer)

GEARCASE ASM. (Incl. 1-46) (Sport)

BOLT,(10) (Sport)

WASHER(10) (Sport)

DAMPENER,CARBURETOR (Sport)

Seal

Seal

Seal

STUD

BUSHING,PIVOT

BUSHING,PIVOT

SCREW (Sport)

GEARCASE, LH.

PIPE, KNOCK

FORK,SHIFT,HR

PLUG

SHAFT,SHIFT,WELD/ASM.

O-RING

WASHER

RING,RETAINING BASIC,EXTERNAL 0.75

BELLCRANK, HI/REV

Washer

Nut

PIN

PIN

SCREW Substituted by 3233747

BRACKET

SPRING

BEARING-BALL,6307 C3,35X80X21

WASHER

DOG,FWD.ENGAGE. (Blazer)

DOG,FWD.ENGAGEMENT (Sport)

RING,RETAINING BASIC,EXTERNAL 0.984

Washer

SPKT,19T,FWD. (Blazer)

SPKT,19T,FWD. (Sport)

BEARING, NEEDLE

GEAR,REVERSE,19T (Blazer)

GEAR,REVERSE (Sport)

SHAFT, INPUT

DOG,REV.ENGAGE. (Blazer)

DOG,REV.ENGAGEMENT (Sport)

WASHER

BEARING, BALL, 6205 C3 25X52X15

BUSHING,SPEEDO.DRIVE

BEARING

BEARING

VALVE,SHOCK

GEAR, 65T

SPROCKET, 51T

SHAFT, OUTPUT

CHAIN,SILENT,60P (11W)

GEARCASE,RH

Washer

Plug

Vent

DIPSTICK Substituted by 3233478
