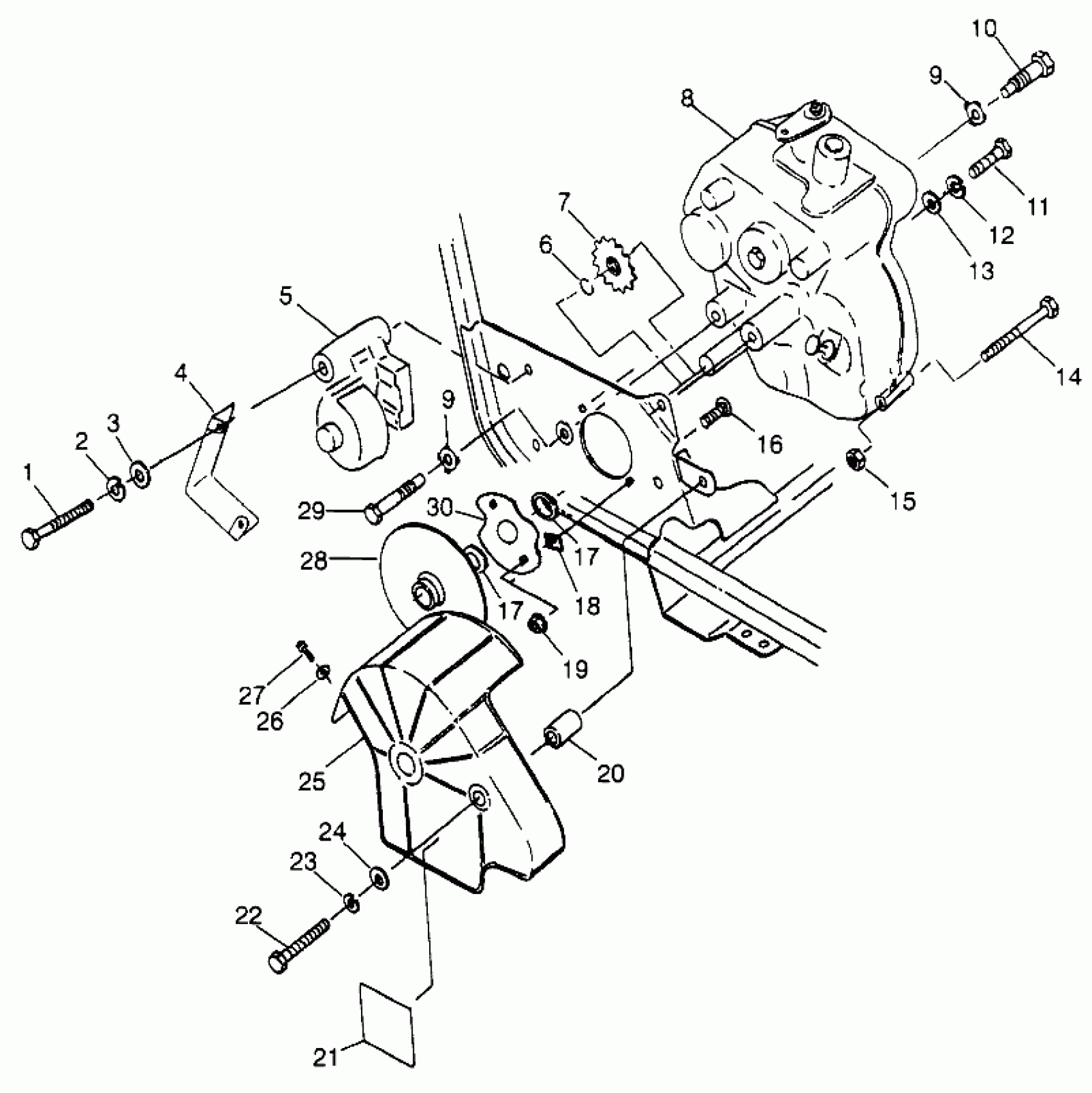

Polaris SPORT 400L - W97BA38C GEARCASE/BRAKE MOUNTING Sport 400L W97BA38C and Trail Blazer W97BA25C (4940124012C001) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

5

CALIPER ASM,R.BRAKE

1910227

Unavailable

6

RING,SNAP(10)

7710434

$3.99

7

SPKT, 12T

3221044

$43.99

8

Asm., Gearcase (See Pg. NO TAG for Details)

-------

Unavailable

9

PLATE,BOLT LOCK

5220958

$35.99

9

PLATE,BOLT LOCK

5220958

$35.99

10

BOLT, SHOULDER (LH Side)

7512701

$23.99

11

BOLT(10)

7515522

$3.99

12

WASHER(10)

7552603

$1.49

13

WASHER Substituted by 7555720

7555784

Unavailable

14

BOLT(10)

7515472

$2.39

15

NUT LOCK(10)

7542403

$3.99

16

BOLT,CARRIAGE(10)

7515484

Unavailable

17

SEAL, BRAKE

3610026

$7.99

17

SEAL, BRAKE

3610026

$7.99

18

SPACER,(10)

5210764

Unavailable

18

SHIM,.010,GEARCASE

5211065

Unavailable

18

SHIM,(.030)

5211517

Unavailable

19

NUT,FLANGE LOCK(10)

7542449

$3.99

20

SPACER,BRAKE DISC GUARD

5333255

$5.03

21

DECAL,BRAKE SHIELD

7075339

Unavailable

22

BOLT(10) Substituted by 7515339

7515328

Unavailable

23

WASHER(10)

7552606

$4.79

24

WASHER(10) Substituted by 7558402

7555770

Unavailable

25

GUARD, BRAKE DISC

5431766

Unavailable

26

WASHER(10) Substituted by 7558301

7555776

Unavailable

27

SCREW(10)

7512252

Unavailable

28

DISC ASM,BRAKE

1910177

Unavailable

29

BOLT, SHOULDER

7512702

Unavailable

30

BRG.ASM,O/P SHAFT (Incl. 18)

1590237

$84.99
