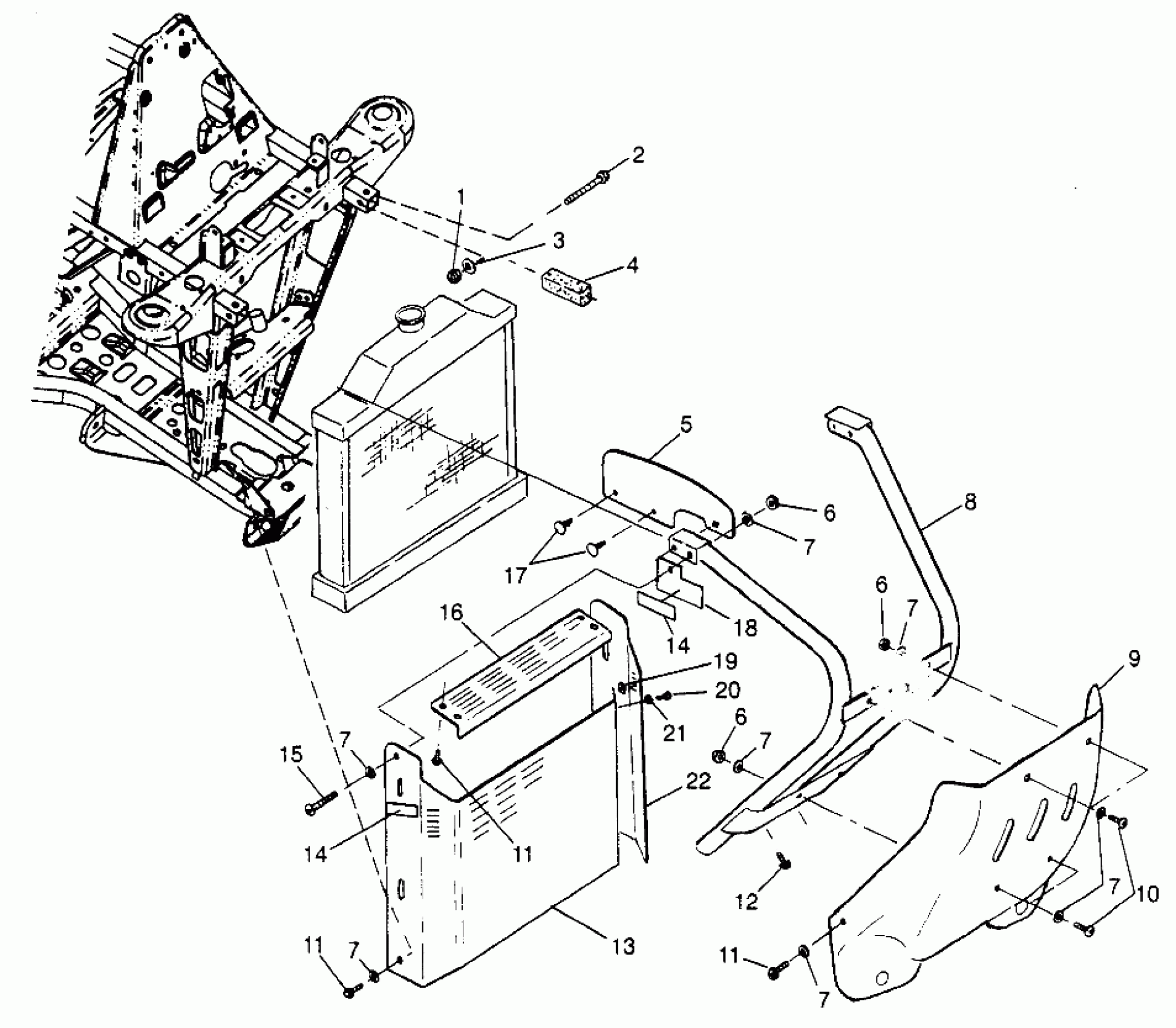

Polaris SPORT 400L - W97BA38C FRONT BUMPER and SHIELDS Sport 400L W97BA38C and Trail Blazer W97BA25C (4940124012A007) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

BOLT(10)

7512329

$3.97

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

PLUG, FRAME

5810467

Unavailable

5

SHIELD-DEFLECTOR,BLACK

5850125

Unavailable

5

SHIELD,LH DEFLECTOR

5850124

Unavailable

6

NUT(10)

7542124

$1.19

6

NUT(10)

7542124

$1.19

6

NUT(10)

7542124

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

7

WASHER(10) Substituted by 7558301 (Sport)

7555776

$1.19

8

BUMPER,FRONT,BLK. Substituted by 1012773-067

1040527-067

$274.99

9

PLATE,SKID,BUMPER,BLK (Sport)

5432378-070

$109.99

10

BOLT(10) (Sport)

7512590

Unavailable

11

SCREW [No Longer Available] (Sport)

7517417

Unavailable

11

SCREW [No Longer Available] (Sport)

7517417

Unavailable

11

SCREW [No Longer Available] (Sport)

7517417

Unavailable

12

SCREW(10) (Sport)

7512399

$5.56

13

SHIELD,RH,RAD.SIDE,BLK. Substituted by 5242682-067 (Sport)

5240870-067

Unavailable

14

REFLECTOR ASM,AMBER

2670134

$10.51

14

REFLECTOR ASM,AMBER

2670134

$10.51

15

BOLT(10) (Sport)

7512281

$3.97

16

SHIELD,UP.RADIATOR,BLK Substituted by 5242683-067 (Sport)

5242076-067

Unavailable

17

CLIP-PLASTIC DART, NYLON

7670088

$1.59

18

PLATE,REFLECTOR, BLK (Trail Blazer)

5211329-067

$2.54

19

NUT, SPEED(10) (Sport)

7670060

$3.97

20

SCREW(10) (Sport)

7515190

Unavailable

21

WASHER(10) (Sport)

7552605

$5.69

22

SHIELD,LH,RAD.SIDE,BLK. Substituted by 5242996-067 (Sport)

5240869-067

Unavailable
