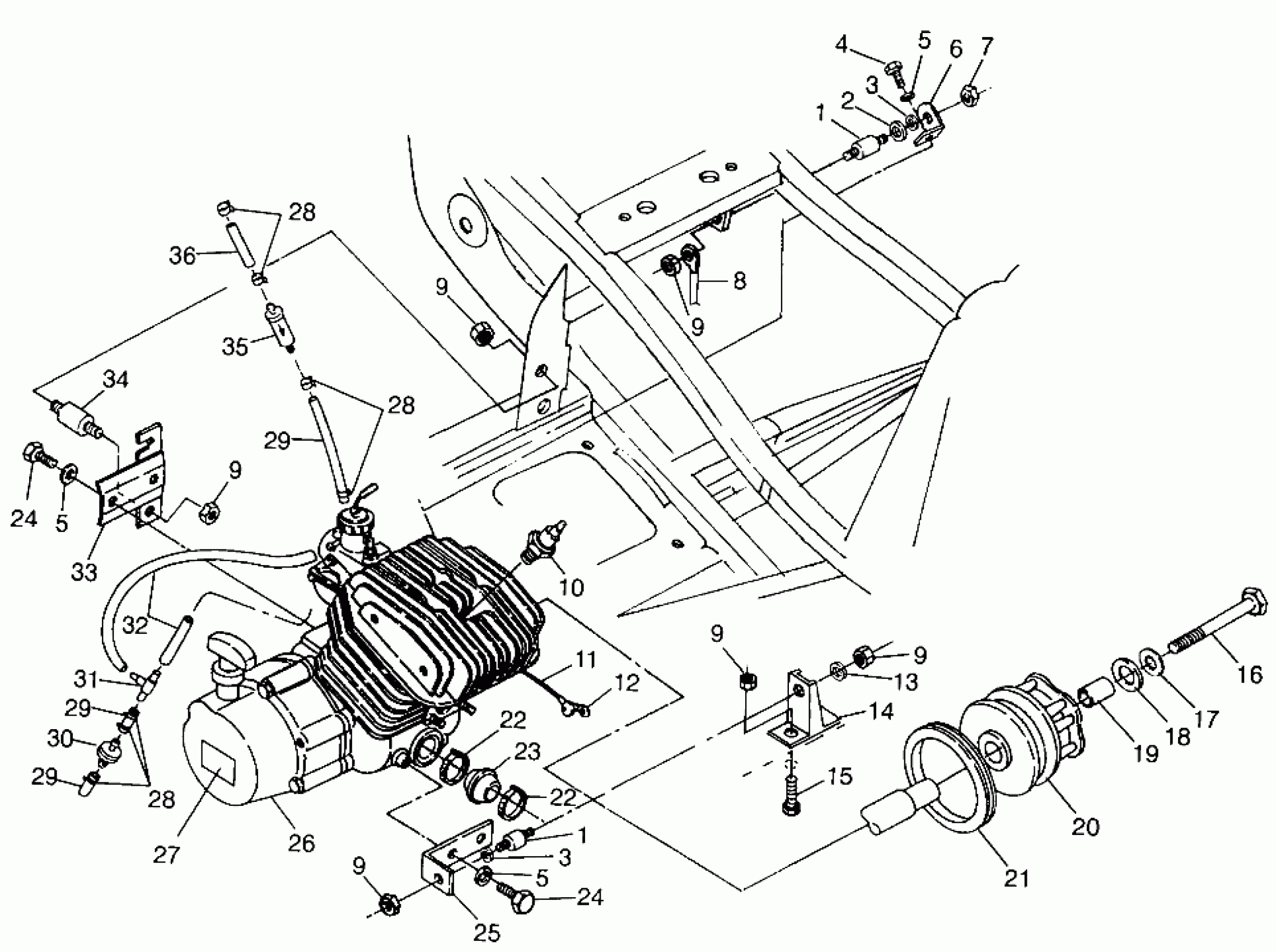

Polaris SPORT 400L - W97BA38C ENGINE MOUNTING (BLAZER) Trail Blazer W97BA25C (4940124012A010) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

WASHER(10)

7555823

$3.99

3

WASHER(10)

7555823

$3.99

4

BOLT(10)

7515321

$1.49

5

LOCK WASHER(10)

7552901

$1.49

5

LOCK WASHER(10)

7552901

$1.49

5

LOCK WASHER(10)

7552901

$1.49

6

MT,ENG.TOP,250,BLK

5242073-067

$3.35

7

NUT LOCK(10)

7542411

$3.19

8

CABLE,GND-ENGINE

4010132

Unavailable

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

SPARKPLUG (10)

3070156

$3.99

11

CABLE,SOLENOID/STARTER

4010064

Unavailable

12

INSULATOR-CABLE

5410346

$6.39

13

WASHER(10)

7555806

$1.49

14

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

15

BOLT(10)

7512457

$3.99

16

BOLT(10)

7512566

$30.79

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

18

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

19

BUSHING-.437 X.770 X.50

5430261

$7.19

20

Asm., Drive Clutch, Basic ATV-08 (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

21

Seal, Case Cover (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

22

CLAMP, NARROW BAND(10)

7080511

$4.79

22

CLAMP, NARROW BAND(10)

7080511

$4.79

23

BOOT,CLUTCH INTAKE

5410421

$11.19

24

SCREW(10)

7512490

$3.99

24

SCREW(10)

7512490

$3.99

25

MT,FR.ENGINE,300,BLK.

5242229-067

Unavailable

26

ENG.(S.B.)EC25PF-SB [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization re

3084717

Unavailable

27

DECAL,DRAIN RECOIL Substituted by 7078577

7075741

Unavailable

28

HOSE CLAMP, RED (Red)

7080003

$1.49

28

HOSE CLAMP, RED (Red)

7080003

$1.49

28

HOSE CLAMP, RED (Red)

7080003

$1.49

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

30

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

31

Fitting, Tee

7052005

Unavailable

32

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

33

MT,REAR,(300),BLK.

5241176-067

Unavailable

34

MOUNT, MOTOR

3110028

Unavailable

35

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

36

HOSE,FUEL,1/4 IN.

5411272

Unavailable
