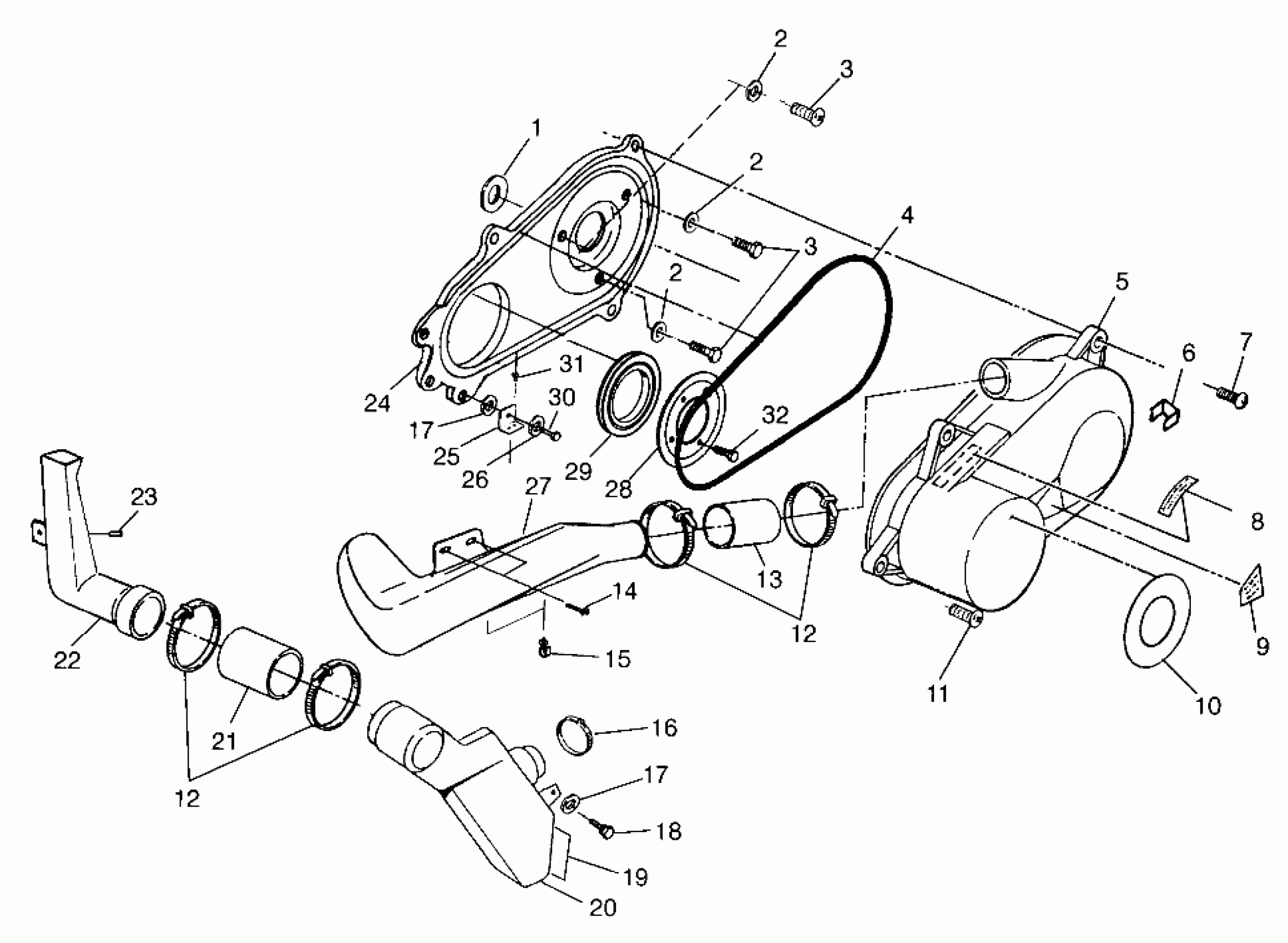

Polaris SPORT 400L - W97BA38C CLUTCH COVER (TRAIL BLAZER) Trail Blazer W97BA25C (4940124012C006) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.59

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

9

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

10

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

11

SCREW(10)

7512094

$1.59

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

BOOT,CLUTCH INTAKE

5410421

$11.19

14

BOLT(10)

7512232

$1.49

15

CLIP,OIL LINE RET.(10)

5432302

Unavailable

16

CLAMP, NARROW BAND(10)

7080511

$4.79

17

WASHER(10)

7555783

$3.99

17

WASHER(10)

7555783

$3.99

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

19

FOIL-TAPE,AIR BOX

5811373

$2.47

20

DUCT,INLET DOWNTUBE,AIR

5432441

Unavailable

21

BOOT, INTAKE

5410509

$7.99

22

DUCT,INLET,TOP

5431794

Unavailable

23

SCREW(10)

7512084

$1.49

24

KIT,CVR,IN.CLUTCH (Incl. 7, 11, 30)

2200802

Unavailable

25

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

26

WASHER(10)

7555935

$2.39

27

DUCT,AIR OUTLET,CLUTCH

5432303

Unavailable

28

BRKT,RETAINER SEAL

5222877-067

Unavailable

29

SEAL,COVER CASE

5410749

Unavailable

30

SCREW(10)

7512095

$4.79

31

RIVET,INTERLOCK,B(50)

7661638

$1.49

32

Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable
