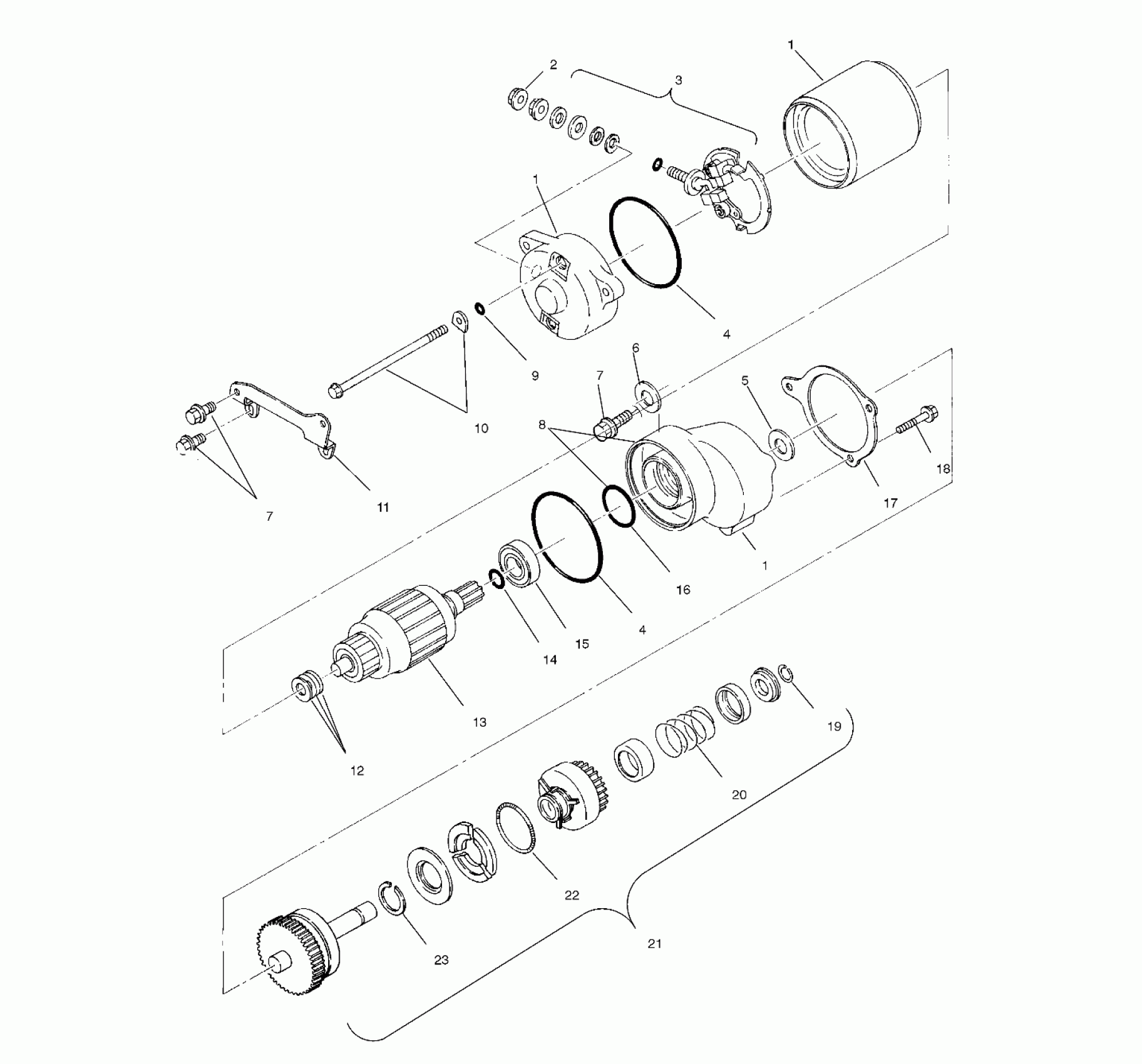

Polaris SPORT 400L - W968540 STARTING MOTOR (SPORT) - W968540 (4935863586D009) Diagram

#

Description
Price

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-4,8-10,12-15,16)

3084403

Unavailable

1

MOTOR,STARTING Substituted by 3085392 (Incl. 1-5,8-10,12-15,19-23)

3085282

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-4,8-10,12-15,16)

3084403

Unavailable

1

MOTOR,STARTING Substituted by 3085392 (Incl. 1-5,8-10,12-15,19-23)

3085282

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-4,8-10,12-15,16)

3084403

Unavailable

1

MOTOR,STARTING Substituted by 3085392 (Incl. 1-5,8-10,12-15,19-23)

3085282

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

COVER, FRONT (Incl. 16)

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

BRACKET Substituted by 3086780

3084214

Unavailable

12

Washer Set

3083754

$2.39

13

ARMATURE ASM. * (Incl. 14,15)

3084404

$207.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.99

16

O RING

3083741

$9.37

17

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

18

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

19

CLIP

3084409

$7.19

20

SPRING, RETURN

3084410

$2.47

21

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 5,19-23)

3083647

Unavailable

22

SPRING, WEIGHT

3084411

$15.67

23

CLIP

3084412

$9.59
