Partiron

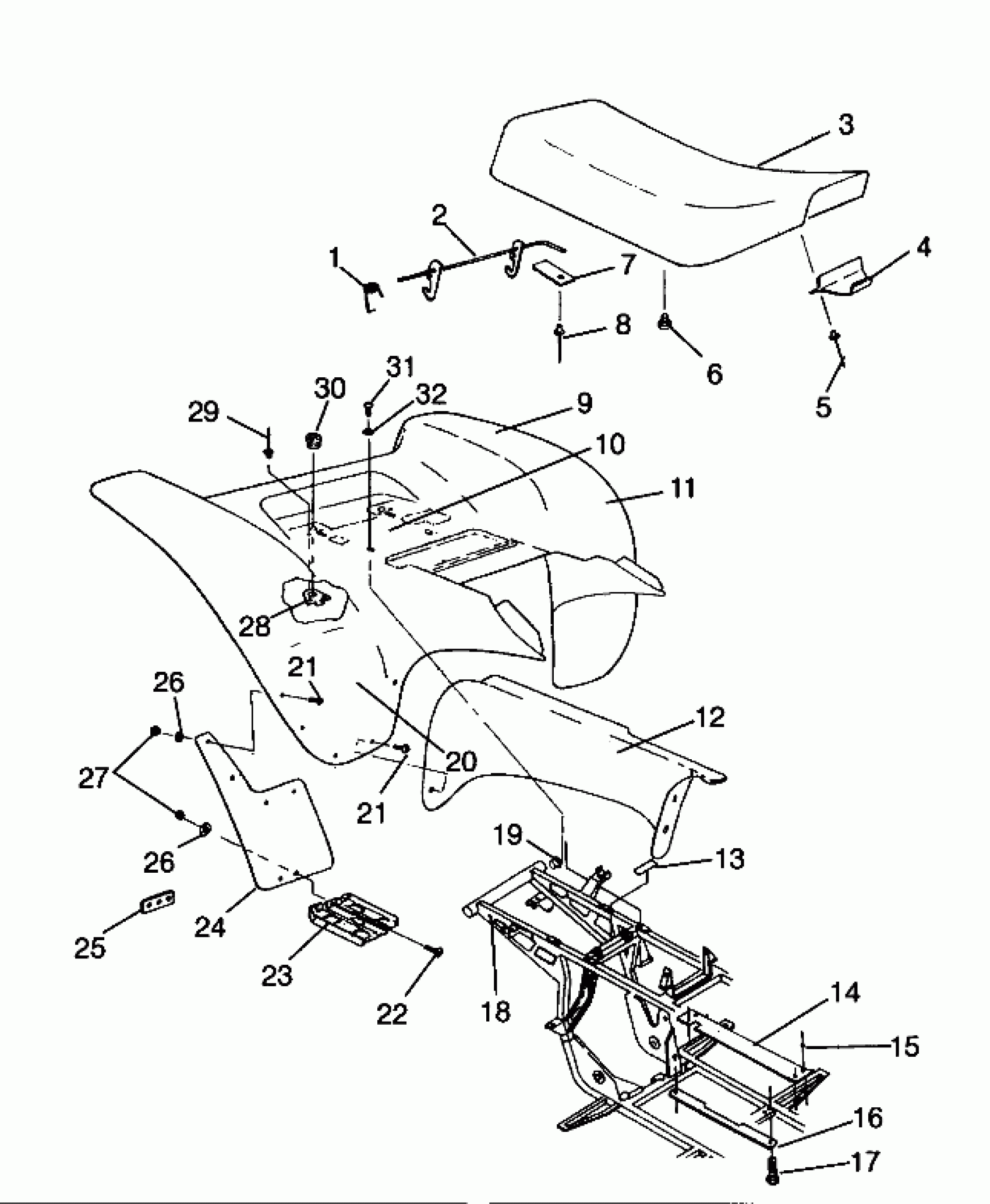

Polaris SPORT 400L - W968540 REAR CAB - W968540 (4935863586A006) Diagram

#

Description
Price

1

SPRING, LATCH

7041158

Unavailable

2

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

3

COVER,SEAT,P.RED (Trail Blazer)

2681769-136

Unavailable

3

COVER,SEAT,PUR.VEL. (Sport)

2681769-194

Unavailable

3

SEAT ASM, P.RED Substituted by 2682321-136 (Trail Blazer)

2681927-136

Unavailable

3

SEAT ASM,PUR.VEL.. Substituted by 2682321-194 (Sport)

2681927-194

Unavailable

4

TONGUE,SEAT

5431986

$10.51

5

RIVET(50)

7621479

$1.98

6

Bumper, Rubber

5410414

$3.17

7

BRACKET,LEVER RETAINER

5211033

$34.99

8

BLIND RIVET(50)

7621403

$1.19

9

Foil, Rear Cab, Small

5810991

Unavailable

10

DECAL,CARB.INFO.

7073761

Unavailable

11

CAB,REAR,WHITE Substituted by 5432606-133 (Trail Blazer)

5431871-133

Unavailable

11

CAB,REAR,SCRM'N YELLOW Substituted by 5432606-216 (Sport)

5431871-216

Unavailable

12

FOIL, FOAM (Trail Blazer)

5811230

Unavailable

12

FOIL,FOAM (Sport)

5811113

Unavailable

12

SHIELD,MUFFLER,BLK. Substituted by 2632274 (Sport)

5431869-070

Unavailable

12

SHIELD,MUFFLER,BLK Substituted by 2632280 (Trail Blazer)

5432278-070

Unavailable

13

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

14

GUARD,CLUTCH,OUTER

5222860-067

$7.06

15

RIVET,INTERLOCK,B(50)

7661638

$1.19

16

GUARD,CLUTCH,INNER

5211359-067

Unavailable

17

BOLT(10)

7512232

$1.19

18

REFLECTOR ASM,RED

2670133

$5.71

19

PLUG,ENDCAP(10)

5432047

$4.92

20

Foil, Rear Cab

5810957

Unavailable

21

BOLT(10)

7512261

Unavailable

21

BOLT(10)

7512261

Unavailable

22

BOLT, BLACK(10)

7512282

Unavailable

23

Weld., Footpad (See Pg. A5, Ref. 24)

----

Unavailable

24

MUDFLAP,LH,REAR

5850122

$13.89

24

MUDFLAP,RH,REAR

5850123

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

26

WASHER, FLAT(10)

7555859

$1.19

26

WASHER, FLAT(10)

7555859

$1.19

27

NUT-LOCK(10)

7542122

$1.19

28

BRKT,R.HOLDDOWN

5220880

Unavailable

29

RIVET,3/16X.402(50)

7621432

$1.19

30

Grommet

5411042

$6.35

31

SCREW(10)

7515180

Unavailable
